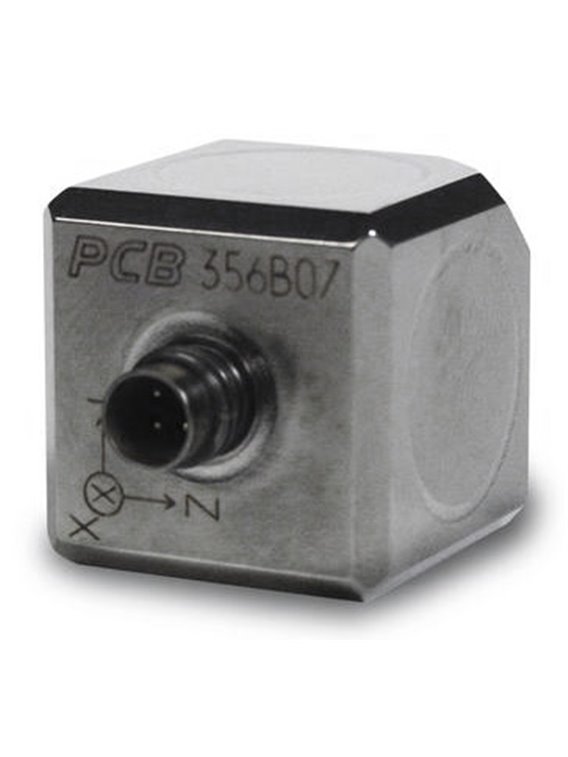

PCB-356M98
zoom_out_map

PCB-356M98

  • Triaxialer ICP® vibration sensor for vacuum applications,
  • Low outgassing
  • Measuring range 5 g,
  • Sensitivity 1,000 mV / g,
  • Frequency range 0.5 … 3,000 Hz,
  • 4-pin female connector on the side
  • basic data
    sensitivity (±10%) 1,000 mV / g 102 mV/(m/s²)
    range ± 5 g pk ±49 m/s² pk
    frequency range (±5%) 0.5 … 3,000 Hz
    Frequency range (± 10%) 0.3 … 5,000 Hz
    resonance frequency ≥ 20,000 Hz
    phase response (at 21 ° C) (± 5 °) 2 … 2,000 Hz
    wide band resolution 0.00005 g RMS 0.0005 m/s² RMS [1]
    Linearity ≤ 1% [2]
    transverse acceleration sensitivity ≤ 5%
    conditions of use
    Overload limit (shock) ±5. 000 g pk
    Temperature range (operation) 20 … 170 ° F 29 … 77 ° C
    strain sensitivity (footprint) 0.0007 g/µε 0.007 (m/s²)/µε [1]
    technical characteristics
    Supply 20 … 30 V DC
    constant power supply 2 … 20 mA
    Output impedance ≤ 600 Ω
    Bias voltage 8 … 12 V DC
    Discharging charging time constant 0.8 … 3.0 s
    settling time < br(auf Bias-Spannung ±10 %) >12s
    Spectral noise (1 Hz) 11.4 µg / √ Hz 112 (µm / s ²) / √ Hz [1]
    spectral noise (10 Hz) 4.0 µg / √ Hz 39 (µm / s ²) / √ Hz [1]
    Spectral noise (100 Hz) 1.2 µg / √ Hz 12 (µm / s ²) / √ Hz [1]
    spectral noise (1,000 Hz) 0.4 µg / √ Hz 4.4 (& tone micronso; m/s²) / √ Hz [1]
    physical properties
    sensor element ceramic
    geometry of the sensor element shear principle
    Housing material titanium
    sealing hermetically sealed
    size - H öhe 0,80 in 20.3 mm
    size - length 1.03 in 26.1 mm
    size - width 0.80 in 20.3 mm
    Mass 1.34 oz 39 grams [1]
    wiring 1/4 "-28 4-pin
    " Connecting position side
    mounting thread 10-32 female thread
    notes
    [1] typically
    [2] zero-based balancing line, determined using the method of least squares
    [3] details: see PCBs Declaration of conformance PS023
    IncludedAccessories
    080A109 mounting wax -1
    080A68 adhesive mounting, 22.2 mm hex, 10-32 thread, anodized aluminum -1
    081 B 05 mounting bolts (10-32 on 10-32) -1
    ACS-1 T Frequency response for Triaxial accelerometer, traceable to NIST, 10 Hz up to the upper 5% frequency -1
    (T) TEDS memory in accordance with IEEE PP1451. 4
    Bias voltage 8.5 … 13 V DC
    (TLA) TEDS LMS International - free format
    Bias voltage 8.5 … 13 V DC
    (TLB) TEDS LMS international - format for the automotive industry
    Bias voltage 8.5 … 13 V DC
    (TLC) TEDS LMS international - format for the aviation industry
    Bias voltage 8.5 … 13 V DC
    (TLD)TEDS memory in accordance with IEEE P1451. 4
    Bias voltage 8.5 … 13 V DC
