List of products by brand PCB Piezotronics

PCB Piezotronics was founded in 1967 as a manufacturer of piezoelectric quartz sensors, accelerometers, and associated electronics for the measurement of dynamic pressure, force, and vibration. The unique expertise of the company was the incorporation of microelectronic signal conditioning circuitry within these sensors to make them easier to use and more environmentally compatible. These ICP® sensors gained wide popularity and became the foundation for the company's success.
Subsequent growth and steady investment in facilities, machinery, and equipment permitted a constant broadening of the product offering. Measurement capabilities expanded with the addition of piezoceramic, tourmaline, capacitive, piezoresistive, and strain gage sensing technologies. Ensuing products include industrial accelerometers, DC accelerometers, load cells, torque sensors, microphones, pressure transmitters, and calibration equipment.
Showing 865-876 of 1981 item(s)
Showing 865-876 of 1981 item(s)

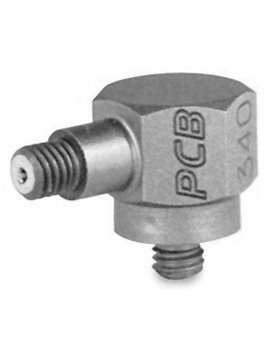

PCB-340A75

  • Miniature vibration sensor with charge output,
  • Continuous use temperature up to 260 ° C,
  • Measuring range 2,300 g
  • Sensitivity 2.9 pC/g,
  • Upper frequency limit 12.000 Hz,
  • Mass 2 grams,
  • M3 socket side

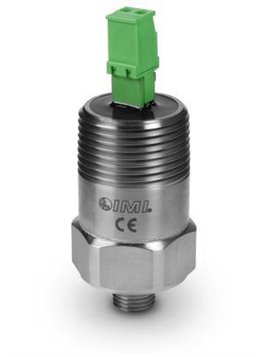

    • PCB-640B71

      • Vibration transmitter with current output corresponding to
        the peak value of the vibration velocity,
      • Measuring range 0 ... 25.4 mm / s,
      • Output range 4 ... 20 mA,
      • Frequency range 3 ... 1000 Hz,
      • Lift terminals

        PCB-640B72

        • Vibration transmitter with current output corresponding to
          the peak value of the vibration velocity,
        • Measuring range 0 ... 50.8 mm / s,
        • Output range 4 ... 20 mA,
        • Frequency range 3 ... 1000 Hz,
        • Lift terminals

          PCB-ACS-1

        • Frequency response calibration for uni-axial accelerometers
        • calibration stand in Buffalo, New York,
        • 10 Hz up to the upper 5% point < br(siehe Datenblatt des zu kalibrierenden Sensors)
        • traceable to NIST
          • PCB-ACS-1T

          • Frequency response calibration for Triaxial accelerometers
          • calibration stand in Buffalo, New York,
          • 10 Hz up to the upper 5% point < br(siehe Datenblatt des zu kalibrierenden Sensors)
          • traceable to NIST
            • PCB-HCS-2

            • Calibration a pulse hammer of series PCB-086,
            • Calibration stand in Buffalo, New York
            • Reverse insertion bar on NIST
              • PCB-RV(M)640B01

              • Vibrationstransmitter mit Stromausgang entsprechend
                dem Spitzenwert der Schwinggeschwindigkeit,
              • Zusätzlicher Vibrations-Rohsignalausgang,
              • Messbereich 0 … 25,4 mm/s,
              • Ausgangsbereich 4 … 20 mA,
              • Frequenzbereich 3 … 1.000 Hz,
              • 3-Pin-Anschlussbuchse oben
                • PCB-TO(M)640B31

                • Vibrationstransmitter mit Stromausgang entsprechend
                  dem Spitzenwert der Schwinggeschwindigkeit,
                • Zusätzlicher Temperaturausgang,
                • Messbereich 0 … 25,4 mm/s,
                • Ausgangsbereich 4 … 20 mA,
                • Frequenzbereich 3 … 1.000 Hz,
                • 4-Pin-Bajonettstecker oben
                  • PCB-(M)354B05

                    • Triaxial ICP® vibration sensor,
                    • With drill through, li >
                    • Mass-insulated, li >
                    • Measurement range 50 g, li >
                    • Sensitivity 100 mV/g, li >
                    • Frequency range 0.4... 5,000 Hz,
                    • 4-pin female connector on the side

                      PCB-(M)354B04

                      • Triaxial ICP® vibration sensor,
                      • With drill through, li >
                      • Mass-insulated, li >
                      • Measuring range 500 g, li >
                      • Sensitivity 10 mV / g, li >
                      • Frequency range 0.4... 5,000 Hz,
                      • 4-pin female connector on the side

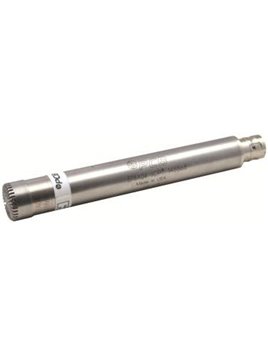

                        PCB-378A04

                        • 1/2 - ICP® - ultra low noise" precision microphone for free-field applications,
                        • equivalent input noise dB(A) only 5.5,
                        • combination of microphone capsule PCB 377A04 and
                          preamplifier PCB 426E01,
                        • sensitivity 450 mV / PA,
                        • Dynamic range > 100 dB,
                        • frequency range 10... 20,000 Hz,
                        • BNC connector,
                        • calibrated system

                          PCB-3741F122G

                          • MEMS accelerometer
                          • Suitable for measuring static accelerations
                          • Measuring range ± 2 g pk (± 19.6m / s²)
                          • Sensitivity (± 3%) 1,350 mV / g (137.6mV / (m / s²))
                          • Frequency range (± 5%) 0 ... 250 Hz
                          • Supply voltage 5… 32 V DC
                          • Integrated connection cable, length 3 meters,
                            ending on stripped and tinned ends
