List of products by brand PCB Piezotronics

PCB Piezotronics was founded in 1967 as a manufacturer of piezoelectric quartz sensors, accelerometers, and associated electronics for the measurement of dynamic pressure, force, and vibration. The unique expertise of the company was the incorporation of microelectronic signal conditioning circuitry within these sensors to make them easier to use and more environmentally compatible. These ICP® sensors gained wide popularity and became the foundation for the company's success.
Subsequent growth and steady investment in facilities, machinery, and equipment permitted a constant broadening of the product offering. Measurement capabilities expanded with the addition of piezoceramic, tourmaline, capacitive, piezoresistive, and strain gage sensing technologies. Ensuing products include industrial accelerometers, DC accelerometers, load cells, torque sensors, microphones, pressure transmitters, and calibration equipment.
-> PCB Piezotronics Website
Showing 1381-1392 of 1981 item(s)
Sort by:
Relevance Name, A to Z Name, Z to A
Showing 1381-1392 of 1981 item(s)
PCB-356A24
2

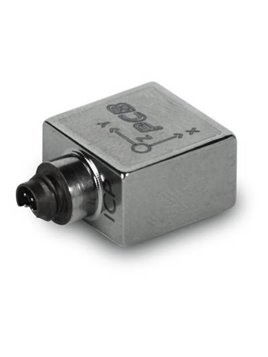

PCB-356A24

  • Triaxial ICP® miniature vibration sensor,
  • Measuring range 500 g
  • Sensitivity 10 mV / g,
  • Frequency range 1 … 9,000 Hz (up to 12,000 Hz ±10%),
  • mass 3.1 grams,
  • 4-pin mini connector side,
  • including connection cable, length 3 m,
    ending to three BNC
      • PCB-356A30
      0

      PCB-356A30

      • Triaxial ICP® miniature vibration sensor,
      • Measuring range 1000 g,
      • Sensitivity 5 mV / g,
      • Frequency range 0.5 … 10,000 Hz,
      • Mass 4.5 grams,
      • 4-pin mini connector side,
      • Including connection cable, length 3 m, ending on 3 BNC-Plug
        PCB-356A30/NC
        0

        PCB-356A30/NC

        • Triaxial ICP® miniature vibration sensor,
        • Measuring range 1000 g,
        • Sensitivity 5 mV / g,
        • Frequency range 0.5 … 10,000 Hz,
        • Mass 4.5 grams,
        • 4-pin mini connector side,
        • Without connection cable
          PCB-356A31
          1

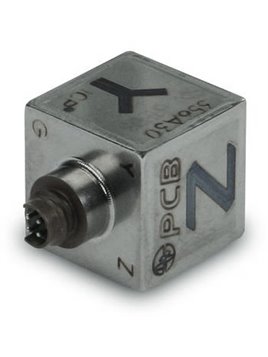

          PCB-356A31

        • Triaxial ICP® miniature vibration sensor,
        • Measuring range 500 g
        • Sensitivity 10 mV / g,
        • Frequency range 1 … 7,000 Hz,
        • Mass 4.5 grams,
        • 4-pin mini connector side,
        • Including connection cable, length 3 m,
          ending to three BNC
            • PCB-356A31/NC
            0

            PCB-356A31/NC

          • Triaxial ICP® miniature vibration sensor,
          • Measuring range 500 g
          • Sensitivity 10 mV / g,
          • Frequency range 1 … 7,000 Hz,
          • Mass 4.5 grams,
          • 4-pin mini connector side,
          • Without connection cable
              • PCB-356A72
              0

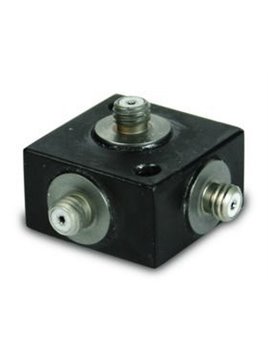

              PCB-356A72

            • Triaxial vibration sensor with charge output,
            • With through-holes.
            • Measuring range 500 g
            • Sensitivity 2.6 pC/g,.
            • Upper frequency limit 7,000 Hz,.
            • Three 10-32-connectors
                • PCB-356B07
                0

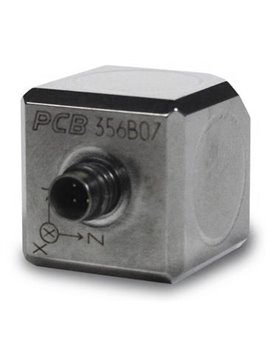

                PCB-356B07

              • Triaxial ICP®-modal vibration sensor,
              • Measurement range 50 g,
              • Sensitivity 100 mV/g,
              • Frequency range 2 … 5,000 Hz,
              • 4-pin female connector on the side
                  • PCB-356B10
                  1

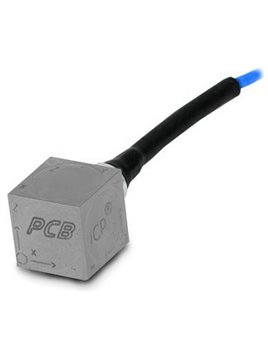

                  PCB-356B10

                • Triaxial ICP® miniature vibration sensor,
                • Measuring range 5,000 g,
                • Sensitivity 1 mV / g,
                • Frequency range 2 … 7,000 Hz,
                • Weight 4 grams,
                • Integrated connection cable, length 1.5 m,
                  ending on 4-pin female connector,
                • including extension cable, length 1.5 m,
                  ending to three BNC
                    • PCB-356B21
                    0

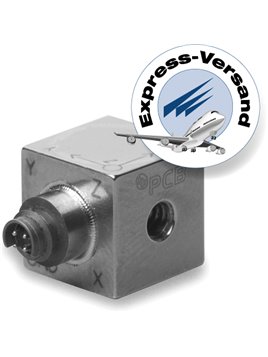

                    PCB-356B21

                  • Triaxial ICP® miniature vibration sensor,
                  • Measuring range 500 g
                  • Sensitivity 10 mV / g,
                  • Frequency range 2 … 7,000 Hz,
                  • Weight 4 grams,
                  • 4-pin mini connector side,
                  • Including connection cable, length 3 m,
                    ending to three BNC
                      • PCB-356M208/NC
                      1

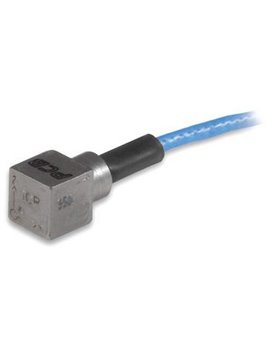

                      PCB-356M208/NC

                      • Triaxial ICP® miniature vibration sensor for vacuum applications,
                      • Low outgassing

                      ,

                      • measuring range 1000 g,
                      • sensitivity 5 mV / g,
                      • frequency range 2 … 8,000 Hz,
                      • mass 1 gram,
                      • integrated cable, length 1.5 m, ending on 4 PIN Jack,
                      • without extension cable
                        PCB-356M57/NC
                        0

                        PCB-356M57/NC

                      • Triaxial ICP® miniature vibration sensor for vacuum applications,
                      • Low outgassing
                      • Measuring range 500 g
                      • Sensitivity 10 mV / g,
                      • Frequency range 2 … 7,000 Hz,
                      • Weight 4 grams,
                      • Integrated connection cable, length 1.5 m,
                        ending on 4-pin female connector,
                      • without extension cable
                          • PCB-356B41/NC
                          0

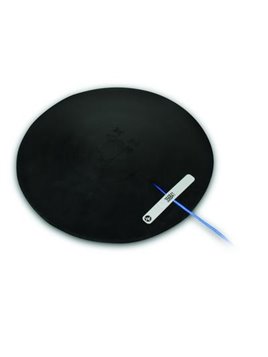

                          PCB-356B41/NC

                          • Triaxial vibration sensor seat cushion,
                          • For measurements according to DIN EN 30.326,
                          • Measuring range 10 g,
                          • Sensitivity 100 mV/g,
                          • Frequency range 0.5... 1,000 Hz,
                          • Integrated cable, length 1.5 m,
                            ending on 4-pin female connector.
                          • Without extension cable
