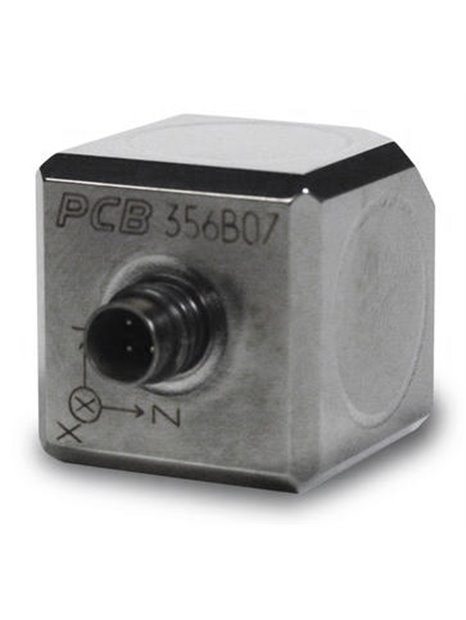

PCB-356B07
zoom_out_map

PCB-356B07

  • Triaxial ICP®-modal vibration sensor,
  • Measurement range 50 g,
  • Sensitivity 100 mV/g,
  • Frequency range 2 … 5,000 Hz,
  • 4-pin female connector on the side
  • "
    basic data
    sensitivity (±10%) 100 mV/g 10.2 mV/(m/s²)
    range ±50 g pk ±490 m/s 2 pk
    frequency range (±5%) 2 … 5,000 Hz
    Frequency range (± 10%) 1.4 … 7,000 Hz
    resonance frequency ≥ 25,000 Hz
    wide band resolution 0.0002 g RMS 0.002 m/s² RMS [2]
    linearity ≤ 1% [1]
    Transverse acceleration sensitivity ≤ 5%
    conditions of use
    Overload limit (shock) ±7. 000 g PK ±68. 600 m/s² pk
    Temperature range (operation) -65 … 250 ° F -54 … 121 ° C
    Strain sensitivity (footprint) 0.001 g/µε 0.01 (m/s²)/µε [2]
    specifications
    power supply 20 … 30 V DC
    constant power supply 2 … 20 mA
    output impedance ≤200Ω
    Bias voltage 7 … 12 V DC
    discharging charging time constant 0.2 … 0.8 s
    Settling time < br(auf Bias-Spannung ±10 %) <5 s
    spectral noise (1 Hz) 80 µg / √ Hz 785 (µm / s ²) / √ Hz [2]
    spectral noise (10 Hz) 15 µg / √ Hz 147 (µm / s ²) / √ Hz [2]
    spectral noise (100 Hz) 5 µg / √ Hz 49 (µm / s ²) / √ Hz [2]
    spectral noise (1,000 Hz) 2 µg / √ Hz 20 (µm / s ²) / √ Hz [2]
    Spectral noise (10,000 Hz) 1 µg / √ Hz 9.8 (µm / s ²) / √ Hz [2]
    Physical properties
    Sensor element ceramic
    Geometry of the sensor element shear principle
    housing material titanium
    sealing Hermetically sealed
    size - height 0.80 in 20.3 mm
    size - length 1.03 in 26.2 mm
    Size - width 0.80 in 20.3 mm
    mass 1.10 oz 31 grams [2]
    electrical connection 1/4 "-28 4-pin
    connection position side
    mounting thread 10-32 female thread
    Assembly torque 10 … 20 in-lb 113 … 225 NCM
    notes
    [1] zero-based balancing line, determined using the method of least squares
    [2] typically
    [3] details: see PCBs Declaration of conformance PS023
    Accessories
    080A109 Mount wax -1
    080A68 adhesive mounting, 22.2 mm hex, 10-32 thread, anodized aluminum -1
    081 B 05 Mounting bolts (10-32 on 10-32) -1
    ACS-1 T frequency response for Triaxial accelerometer, traceable to NIST, 10 Hz up to the upper 5% frequency -1
    M081B05 mounting bolts 10-32 to M6 x 0.75 -1
    (A) glue Assembly
    supplied accessories ör
    080A109 mounting wax -1
    080A90 cyano -1
    (J) Mass insulation
    electrical insulation > 100,000,000 Ω
    size - height 0.85 in 21.6 mm
    size - length 1.03 in 26.2 mm
    size - width 0.85 in 21.6 mm
    Mass 1.15 oz 33 grams
    (T) TEDS memory in accordance with IEEE PP1451. 4
    Bias voltage 8.5 … 13 V DC
    (TLA) TEDS LMS International - free Format
    Bias voltage 8.5 … 13 V DC
    (TLB) TEDS LMS international - format for the automotive industry
    Bias voltage 8.5 … 13 V DC
    (TLC) TEDS LMS international - format for the aviation industry
    Bias voltage 8.5 … 13 V DC
    PCB-356B07

    Specific References

    Download

    356B07_drawing.PDF

    Technical drawing

    Download (688.04k)

    356B07_manual.PDF

    Operating instructions

    Download (2.3M)

    356B07_specs.PDF

    Technical data sheet

    Download (68.06k)
