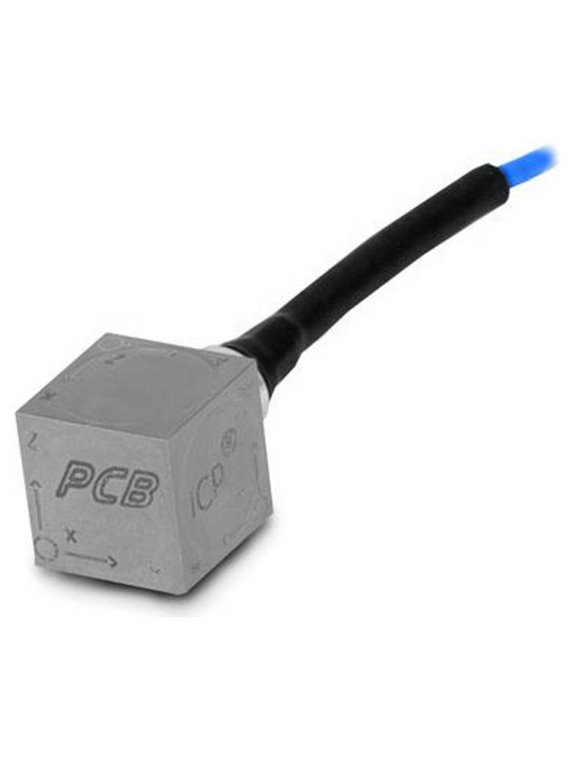

PCB-356B10

  • Triaxial ICP® miniature vibration sensor,
  • Measuring range 5,000 g,
  • Sensitivity 1 mV / g,
  • Frequency range 2 … 7,000 Hz,
  • Weight 4 grams,
  • Integrated connection cable, length 1.5 m,
    ending on 4-pin female connector,
  • including extension cable, length 1.5 m,
    ending to three BNC
  • PCB-356B10

    Specific References

    Download

    356B10_drawing.PDF

    Technical drawing

    Download (601.33k)

    356B10_specs.PDF

    Technical data sheet

    Download (32.37k)

    356B10_manual.PDF

    Operating instructions

    Download (2.24M)
    basic data
    sensitivity (±20%) 1.0 mV / g 0.1 mV/(m/s²)
    range ±5. 000 g PK ±49. 050 m/s² pk
    frequency (Y - and Z-axis) < br(≤5 %) 2 … 10,000 Hz
    Frequency range (X-axis) (±5%) 2 … 7,000 Hz [3] [3]
    resonance frequency ≥ 55,000 Hz
    Wide band resolution 0.03 g RMS 0.29 m/s² RMS [2]
    Linearity ≤ 2.5% [1]
    transverse acceleration sensitivity ≤ 5%
    conditions of use
    Overload limit (shock) ±7. 000 g pk ±68. 600 m/s² pk
    temperature range (operation) -65 … 250 ° F -54 …121 ° C
    specifications
    power supply 18 … 30 V DC
    Constant power supply 2 … 20 mA
    output impedance ≤200Ω
    Bias voltage 7 … 11 V DC
    Discharging charging time constant 2.5 … 4<5 s
    settling time < br(auf Bias-Spannung ±10 %) >12s
    Spectral noise (1 Hz) 9,000 µg / √ Hz 88.290 (µm / s ²) / √ Hz [2]
    spectral noise (10 Hz) 2,500 µg / √ Hz 24.525 (µm / s ²) / √ Hz [2]
    spectral noise (100 Hz) 800 µg / √ Hz 7.848 (µm / s ²) / √ Hz [2]
    spectral Noise (1,000 Hz) 250 µg / √ Hz 2,453 (µm / s ²) / √ Hz [2]
    physical properties
    sensor element ceramic
    Geometry of the sensor element shear principle
    housing material titanium
    sealed sealed close
    size - height 0.4 in 10.2 mm
    size - length 0.4 in 10.2 mm
    Size - width 0.4 in 10.2 mm
    dimensions (without cable) 0.14 oz 4 grams [2]
    electrical connection Integrated cable
    Cable exit side
    cable termination 1/4 "-28 4-pin socket
    Kabell" änge 5 ft 1.5 m
    cord type type 034, 4-wire shielded cable
    mounting screw 5-40 female
    Assembly torque 4 … 5 in-lb 45 … 56 NCM
    notes
    [1] zero-based balancing line, determined using the method of least squares
    [2] typically
    [3] the frequency response of the X-axis is limited because the installation method.
    [4] the data for temperatures above 121 ° C applies only for transducers with HT option.
    [5] details: see PCBs Declaration of conformance PS023
    equipment
    034 G 05 4-wire shielded cables, 1.5 meter, 4-pin connector to three BNC -1
    080A adhesive mounting -1
    080A109 mounting wax -1
    081A27 mounting bolts, 5-40 on 5-40 -1
    081A90 Mounting bolts, 10-32 on 5-40 -1
    ACS-1T frequency response for Triaxial accelerometer, traceable to NIST, 10 Hz up to the upper 5% frequency -1
    M081A27 metric mounting bolts, 5-40 M3 x 0.50
