List of products by brand PCB Piezotronics

PCB Piezotronics was founded in 1967 as a manufacturer of piezoelectric quartz sensors, accelerometers, and associated electronics for the measurement of dynamic pressure, force, and vibration. The unique expertise of the company was the incorporation of microelectronic signal conditioning circuitry within these sensors to make them easier to use and more environmentally compatible. These ICP® sensors gained wide popularity and became the foundation for the company's success.
Subsequent growth and steady investment in facilities, machinery, and equipment permitted a constant broadening of the product offering. Measurement capabilities expanded with the addition of piezoceramic, tourmaline, capacitive, piezoresistive, and strain gage sensing technologies. Ensuing products include industrial accelerometers, DC accelerometers, load cells, torque sensors, microphones, pressure transmitters, and calibration equipment.
-> PCB Piezotronics Website
Showing 1309-1320 of 1981 item(s)
Sort by:
Relevance Name, A to Z Name, Z to A
Showing 1309-1320 of 1981 item(s)
PCB-(M)350C03
1

PCB-(M)350C03

  • ICP® shock acceleration sensor,
  • With electric and mechanical filter,
  • Measuring range 10,000 g,
  • Sensitivity 0.5 mV / g,
  • Frequency range 0.4 … 10,000 Hz,
  • 10-32 female connector above
      • PCB-(M)320C16
      0

      PCB-(M)320C16

    • ICP® high-temperature vibration sensor,
    • Continuous use temperature up to 163 ° C,
    • Measuring range 500 g
    • Sensitivity 10 mV / g,
    • Frequency range 2 … 10,000 Hz,
    • Mass 1.5 grams,
    • 5-44 female connector above
        • PCB-(M)320C17
        0

        PCB-(M)320C17

      • ICP® high-temperature vibration sensor,
      • Continuous use temperature up to 163 ° C,
      • Measuring range 500 g
      • Sensitivity 10 mV / g,
      • Frequency range 2 … 10,000 Hz,
      • Mass 1.7 grams,
      • Integrated cable, length 3 m,
        ending on 10-32 plug
          • PCB-333B
          0

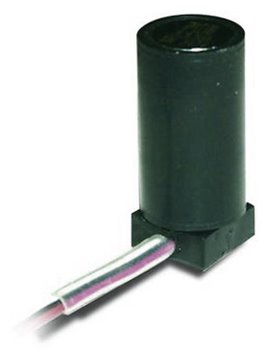

          PCB-333B

        • ICP®-modal vibration sensor,
        • Measurement range 50 g,
        • Sensitivity 100 mV/g,
        • Frequency range 2 … 1,000 Hz,
        • 3-pin female connector on the side
            • PCB-333B45
            1

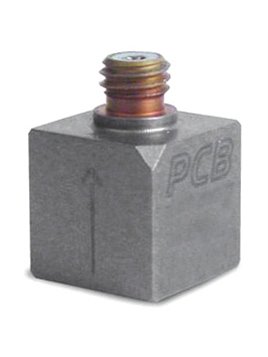

            PCB-333B45

          • ICP®-modal vibration sensor,
          • Measuring range 10 g,
          • Sensitivity500 mV / g,
          • Frequency range 0.5 … 3,000 Hz,
          • 10-32 female connector above
              • PCB-3501A202KG
              0

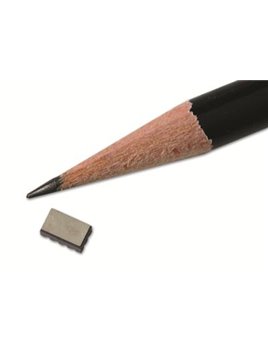

              PCB-3501A202KG

            • MEMS high shock sensor,
            • Measuring range 2,000 g
            • Sensitivity 0.02 mV / V / g,
            • Frequency range 0 … 10,000 Hz,
            • Surface mount
                • PCB-(M)350B03
                1

                PCB-(M)350B03

              • ICP® shock acceleration sensor,
              • With electric and mechanical filter,
              • Measuring range 10,000 g,
              • Sensitivity 0.5 mV / g,
              • Frequency range 0.4 … 10,000 Hz,
              • 10-32 female connector above,
              • No longer available (replacement: PCB-(M)350C03)
                  • PCB-(M)350B04
                  0

                  PCB-(M)350B04

                  • ICP® shock acceleration sensor,
                  • With electric and mechanical filter,
                  • Measuring range 5,000 g,
                  • Sensitivity 1 mV / g,
                  • Frequency range 0.4 … 10,000 Hz,
                  • 10-32 female connector above,
                  • No longer available (replacement: PCB-(M)350C04)
                    PCB-(M)350B21
                    0

                    PCB-(M)350B21

                  • ICP® shock acceleration sensor,
                  • Masseisoliert,
                  • Measuring range 100,000 g,
                  • Sensitivity 0.05 mV / g,
                  • Frequency range 1 … 10,000 Hz,
                  • Integrated connection cable, length 3 m,
                    ending on 10-32 plug,
                  • no longer available (replacement: ) PCB-(M)350B01)
                      • PCB-(M)350B23
                      0

                      PCB-(M)350B23

                    • ICP® shock acceleration sensor,
                    • Masseisoliert,
                    • With electric and mechanical filter,
                    • Measuring range 10,000 g,
                    • Frequency range 0.4 … 10,000 Hz,
                    • Integrated connection cable, length 3 m,
                      ending on 10-32 plug,
                    • no longer available (replacement: ) PCB-(M)350C23)
                        • PCB-(M)350B24
                        0

                        PCB-(M)350B24

                      • ICP® shock acceleration sensor,
                      • Masseisoliert,
                      • With electric and mechanical filter,
                      • Measuring range 5,000 g,
                      • Sensitivity 1 mV / g,
                      • Frequency range 0.4 … 10,000 Hz,
                      • Integrated connection cable, length 3 m,
                        ending on 10-32 plug,
                      • no longer available (replacement: ) PCB-(M)350C24)
                          • PCB-352B01
                          0

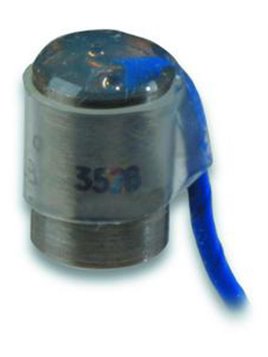

                          PCB-352B01

                        • ICP®-miniature vibration sensor,
                        • Measuring range 5,000 g,
                        • Sensitivity 1 mV / g,
                        • Frequency range 2 … 10,000 Hz,
                        • Mass 0.7 grams,
                        • Integrated cable, length 3 m,
                          ending on 10-32 plug
                            • Back to top
