PCB-352B01
zoom_out_map

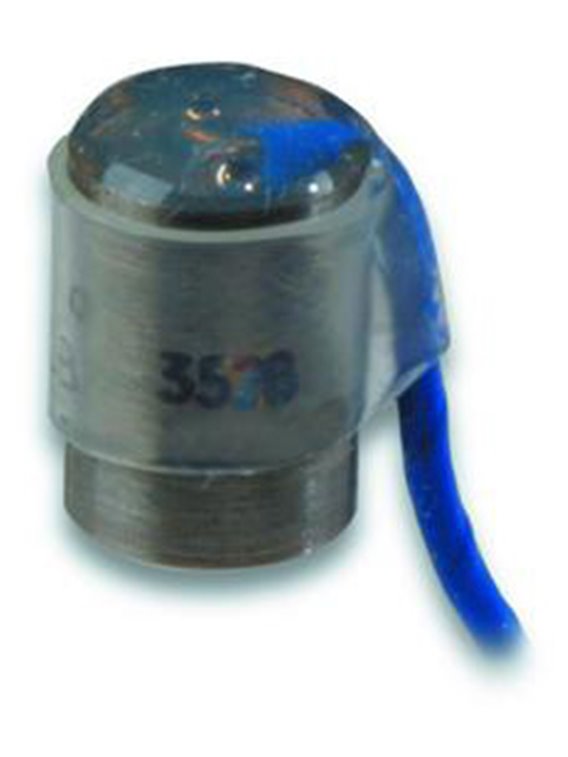

PCB-352B01

  • ICP®-miniature vibration sensor,
  • Measuring range 5,000 g,
  • Sensitivity 1 mV / g,
  • Frequency range 2 … 10,000 Hz,
  • Mass 0.7 grams,
  • Integrated cable, length 3 m,
    ending on 10-32 plug
  • basic data
    sensitivity (±20%) 1.0 mV / g 0.10 mV/(m/s²)
    range ±5. 000 g PK ±49. 050 m/s² pk
    frequency range (±5%) 2 … 10,000 Hz
    Frequency range (± 10%) 1 … 20,000 Hz
    resonance frequency ≥ 65,000 Hz
    wide band resolution 0.02 g RMS 0.2 m/s² RMS [2]
    Linearity ≤ 1% [1]
    transverse acceleration sensitivity ≤ 5%
    conditions of use
    (Shock) overload limit ± 10.000 g pk ±98.100 m/s² pk
    Temperature range (operation) -65 … 250 ° F -54 … 121 ° C [3]
    Technical properties
    Supply voltage 18 … 30 V DC
    Constant power supply 2 … 20 mA
    output impedance ≤200Ω
    Bias voltage 7 … 11 V DC
    discharging charging time constant 0.3 … 1,0 s
    physical properties
    Size - diameter 0.24 in 6.1 mm
    Size - height 0.32 in 8.1 mm
    dimensions (without cable) 0.03 oz 0.7 grams [2]
    sensor element Ceramic
    Geometry of the sensor element shear principle
    housing material titanium
    Sealing hermetically sealed welded
    electrical connector pins soldered cable
    cable outlet Top
    cable length 10 ft 3 m
    cord type type 030, coaxial cable
    Fixing Adhesive mounting
    Notes
    [1] zero-based balancing line, determined using the method of least squares
    [2] typically
    [3] the data for temperatures above 121 ° C applies only for transducers with HT option.
    Equipment
    080A109 mounting wax -1
    080A90 Superglue -1
    ACS-1 frequency response, traceable to NIST (10 Hz up to the upper 5% point) -1
    (HT) high temperature electronics
    Temperature range -65 … 325 ° F -54 … 163 ° C
