List of products by brand PCB Piezotronics

PCB Piezotronics was founded in 1967 as a manufacturer of piezoelectric quartz sensors, accelerometers, and associated electronics for the measurement of dynamic pressure, force, and vibration. The unique expertise of the company was the incorporation of microelectronic signal conditioning circuitry within these sensors to make them easier to use and more environmentally compatible. These ICP® sensors gained wide popularity and became the foundation for the company's success.
Subsequent growth and steady investment in facilities, machinery, and equipment permitted a constant broadening of the product offering. Measurement capabilities expanded with the addition of piezoceramic, tourmaline, capacitive, piezoresistive, and strain gage sensing technologies. Ensuing products include industrial accelerometers, DC accelerometers, load cells, torque sensors, microphones, pressure transmitters, and calibration equipment.
Showing 1297-1308 of 1981 item(s)
Showing 1297-1308 of 1981 item(s)

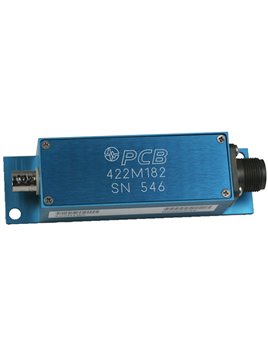

PCB-422M182

  • Differential line-charge amplifier,
  • Input range ±1. 250 pC,
  • Output range ±5 V,
  • Transcription factor: 4 mV / pC,
  • Frequency range 2 … 55,000 Hz (depends on the constant current)
    • PCB-482A21

    • 1-channel power supply unit,
    • Input: ICP®,
    • Gain 1 x,
    • BNC-input and output,
    • Including power supply
      • PCB-301A10

      • ICP® calibration reference vibration sensor,
      • Measurement range 50 g,
      • Sensitivity 100 mV/g,
      • Frequency range: 0.5 … 10,000 Hz,
      • 1/4 "-28 internal thread above,
      • 1/4 "-28 internal thread below,
      • 10-32 female connector on the side

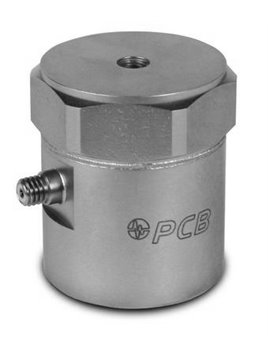

        • PCB-301A11

        • ICP® calibration reference vibration sensor,
        • Measurement range 50 g,
        • Sensitivity 100 mV/g,
        • ,
        • frequency range: 0.5 … 10,000 Hz,
        • 10-32-female thread above,
        • 1/4 "-28 internal thread below,
        • 10-32 socket on the side"

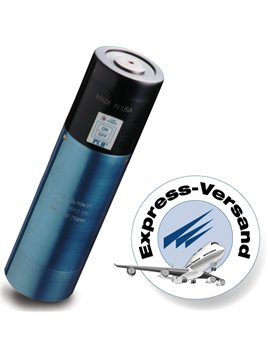

          • PCB-394C06

          • Battery-powered vibration thrusters,
          • 1 g at 159.2 Hz,
          • Max Sensormasse 210 grams.
          • Including calibration certificate

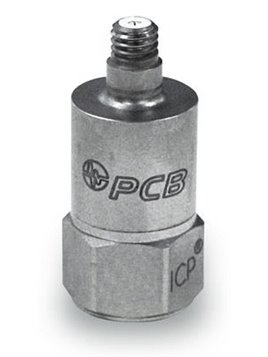

            • PCB-320C02

            • ICP® high-temperature vibration sensor,
            • Continuous use temperature up to 163 ° C,
            • Measuring range 250 g of sensitivity
              20 mV / g,
            • frequency range 1 … 6,000 Hz,
            • 10-32 female connector above
              • PCB-(M)320C11

              • ICP® high-temperature vibration sensor,
              • Continuous use temperature up to 163 ° C,
              • Measuring range 1000 g,
              • Sensitivity 5 mV / g,
              • Frequency range 2 … 10,000 Hz,
              • Mass 2 grams,
              • 5-44 female connector on the side
                • PCB-(M)320C14

                • ICP® high-temperature vibration sensor,
                • Continuous use temperature up to 163 ° C,
                • Measuring range 1000 g,
                • Sensitivity 5 mV / g,
                • Frequency range 2 … 10,000 Hz,
                • Mass 1.7 grams,
                • 10-32 female connector above
