List of products by brand PCB Piezotronics

PCB Piezotronics was founded in 1967 as a manufacturer of piezoelectric quartz sensors, accelerometers, and associated electronics for the measurement of dynamic pressure, force, and vibration. The unique expertise of the company was the incorporation of microelectronic signal conditioning circuitry within these sensors to make them easier to use and more environmentally compatible. These ICP® sensors gained wide popularity and became the foundation for the company's success.

Subsequent growth and steady investment in facilities, machinery, and equipment permitted a constant broadening of the product offering. Measurement capabilities expanded with the addition of piezoceramic, tourmaline, capacitive, piezoresistive, and strain gage sensing technologies. Ensuing products include industrial accelerometers, DC accelerometers, load cells, torque sensors, microphones, pressure transmitters, and calibration equipment.

-> PCB Piezotronics Website

Showing 1285-1296 of 1981 item(s)

Sort by:

Showing 1285-1296 of 1981 item(s)

PCB-EX(M)603C01

Industrial ICP® vibration sensor,

With ATEX / CSA approval,

Measurement range 50 g,

Sensitivity 100 mV/g,

Frequency range 0.5 … 10,000 Hz,

One-point calibration at 100 Hz,

2-pin female connector above

PCB-EX(M)607A01

Industrial ICP® vibration sensor,

With ATEX / CSA approval,

Measurement range 50 g,

Sensitivity 100 mV/g,

Frequency range 0.5 … 10,000 Hz,

One-point calibration at 100 Hz,

2-pin connector side, freely adjustable

PCB-EX(M)607A11

Industrial ICP® vibration sensor,

With ATEX / CSA approval,

Measurement range 50 g,

Sensitivity 100 mV/g,

Frequency range 0.5 … 10,000 Hz,

One-point calibration at 100 Hz,

Free ausrichtbares integrated cable, length 3 m,
ending on cut end

PCB-EX(M)607A61

Industrial ICP® vibration sensor,

With ATEX / CSA approval,

Measurement range 50 g,

Sensitivity 100 mV/g,

Frequency range 0.5 … 10,000 Hz,

One-point calibration at 100 Hz,

Free ausrichtbares integrated connecting cable with reinforcement, length 3 m,
ending on cut end

PCB-EX(M)608A11

Industrial ICP® vibration sensor,

With ATEX / CSA approval,

Measurement range 50 g,

Sensitivity 100 mV/g,

Frequency range 0.5 … 10,000 Hz,

One-point calibration at 100 Hz,

Integrated cable, length 3 m,
ending on cut end

PCB-EX(M)628F01

Industrial ICP® vibration sensor,

With ATEX / CSA approval,

Measurement range 50 g,

Sensitivity 100 mV/g,

Frequency range 0.33 … 12.000 Hz,

Frequency response calibration,

2-pin female connector above

PCB-EX641B70D

Vibrationstransmitter mit Stromausgang entsprechend
dem Effektivwert der Schwinggeschwindigkeit,

Mit ATEX-Zulassung (EX d),

Messbereich 0 … 12,7 mm/s RMS,

Ausgangsbereich 4 … 20 mA,

Frequenzbereich 10 … 1.000 Hz,

Anschlussklemmen oben

PCB-EX641B71D

Vibrationstransmitter mit Stromausgang entsprechend
dem Effektivwert der Schwinggeschwindigkeit,

Mit ATEX-Zulassung (EX d),

Messbereich 0 … 25,4 mm/s RMS,

Ausgangsbereich 4 … 20 mA,

Frequenzbereich 10 … 1.000 Hz,

Anschlussklemmen oben

PCB-MXM622A11

Industrial ICP® vibration sensor,

With mining approval

Measurement range 50 g,

Sensitivity 100 mV/g,

Frequency range 0.2 … 10,000 Hz,

Frequency response calibration,

Integrated cable, length 3 m,
ending on cut end

PCB-RHM240M40

Industrial ICP® strain sensor,
Measuring range 300 µ ?
Sensitivity 10 mV / µ ?
Lower limiting frequency 0.004 Hz,
Integrated cable, length 3 m, ending on cut end

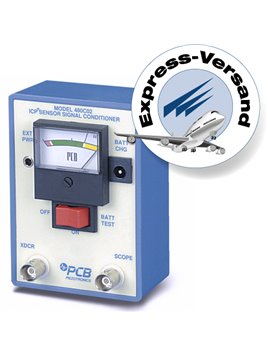

PCB-480C02

Battery-powered 1-channel power supply unit,
Input: ICP®,
Gain 1 x,
BNC input and output

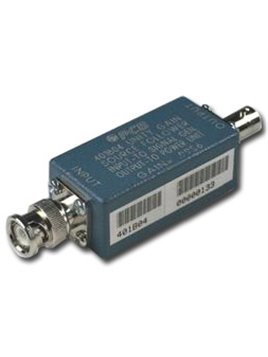

PCB-401B04

ICP® sensor Simulator for connection to a frequency generator,
For the validation of ICP® supply units
