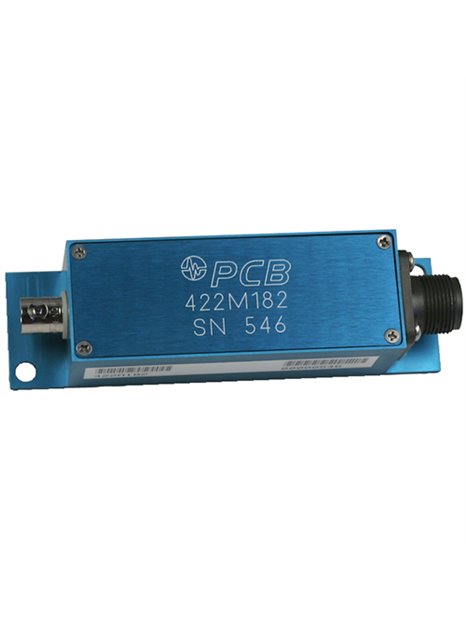

PCB-422M182
zoom_out_map

PCB-422M182

  • Differential line-charge amplifier,
  • Input range ±1. 250 pC,
  • Output range ±5 V,
  • Transcription factor: 4 mV / pC,
  • Frequency range 2 … 55,000 Hz (depends on the constant current)
  • basic data
    transcription factor (±5%) 4 mV / pC

    lower limiting frequency (-5%) 2 Hz   [3]

    Upper frequency limit (constant current 2.2 mA) 30,000 Hz   [2]

    Upper frequency limit (constant current 4 mA) 45,000 Hz   [2]

    upper frequency limit (constant current 20 mA) 55,000 Hz   [2]

    Linearity ≤1.0% FS
    Conditions of use
    Temperature range (operation) -60 … 185 ° F -51 … 85 ° C

    Temperature effect on transcription factor < 1%
    technical characteristics
    supply voltage 22 … 28 V DC

    Constant power supply 2.2 … 20 mA

    output range ±5 V pk

    Output impedance < 250Ω

    Bias voltage 12 … 16 V DC

    Wide band noise (1 … 10,000 Hz) 28 µV -91 dB [1]

    spectral noise (1 Hz) 10.0 µV / √Hz -100 dB [1]

    Spectral noise (10 Hz) 3.2 µV / √Hz -110 dB [1]

    spectral noise (100 Hz) 1.0 µV / √Hz -120 dB [1]

    Spectral noise (1,000 Hz) 0.56 µV / √Hz -125 dB [1]

    spectral noise (10,000 Hz) 0.56 µV / √Hz -125 dB [1]

    Discharging charging time constant 0.

    minimal resistance at the sensor input 50,000Ω

    influence the Input capacitance (sensor + cable) on transcription factor 0,0009 %/pF
    physical properties
    housing material aluminum

    Electrical connection (input) 2-Pin

    electrical connection (output) BNC Plug

    dimensions 3.5Oz 109 grams
    notes
    [1] tested with a voltage source and a capacitor (to simulate of a sensor)

    [2] Above the specified rate, it comes to errors due to the low maximum rise and drop speed of the charge amplifier.

    [3] the lower cut-off frequency tolerance: ±20%

    [4] details: see PCB Declaration of Conformance PS024. CE conformity is only guaranteed, if the housing is earthed.
