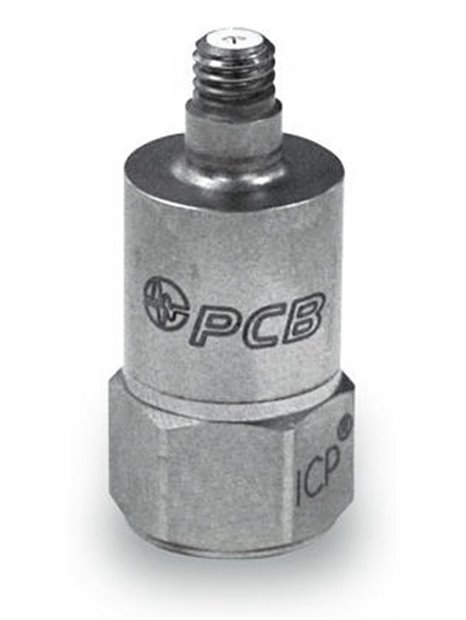

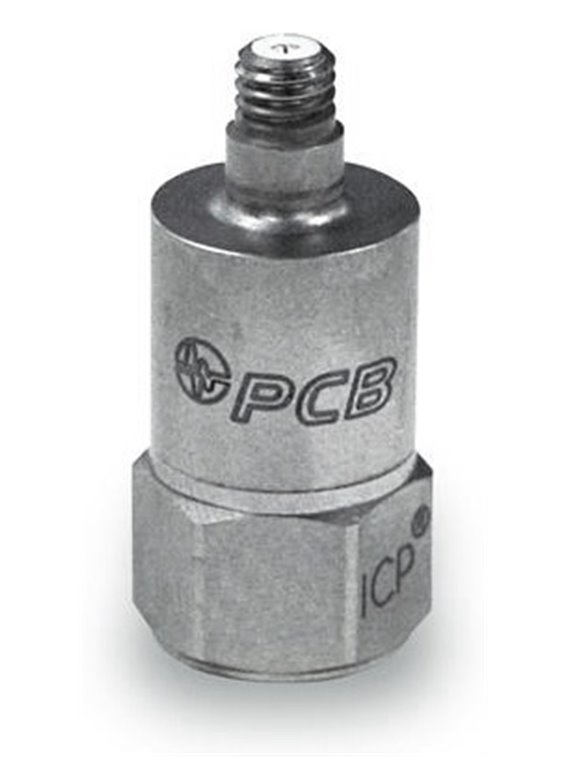

PCB-320C02

  • ICP® high-temperature vibration sensor,
  • Continuous use temperature up to 163 ° C,
  • Measuring range 250 g of sensitivity
    20 mV / g,
  • frequency range 1 … 6,000 Hz,
  • 10-32 female connector above
  • ,

    basic data
    sensitivity (±10%) 20 mV / g 2.04 mV/(m/s²)

    range ±250 g pk ±2. 452 m/s² pk

    frequency range (±5%) 1 … 6,000 Hz

    Frequency range (± 10%) 0.7 … 9,000 Hz

    frequency range (± 3 dB) 0.35 … 18,000 Hz

    Resonance frequency ≥35,000 Hz

    wide band resolution 0.003 g RMS 0.03 m/s² RMS [3]

    Linearity ≤1%   [1]

    transverse acceleration sensitivity ≤5%   [2]
    conditions of use
    Overload limit (shock) ±7. 000 g pk ±68. 670 m/s² pk

    Temperature range (operation) -100 … 325 ° F -73 … 163 ° C

    Strain sensitivity (base area) ≤0.0005 g/µε ≤0.005 (m/s²)/µε [3]
    technical characteristics
    Supply voltage 18 … 30 V DC

    Constant power supply 2 … 20 mA

    output impedance ≤100 Ω

    Bias voltage 8 … 12 V DC

    Discharging charging time constant 0.5 … 2.6 s

    spectral noise (1 Hz) 1,600 µg / √Hz 15,700 (µm / s ²) /. ? Hz

    spectral noise (10 Hz) 350 µg / √Hz 3.433 (µm / s ²) / √Hz [3]

    spectral noise (100 Hz) 90 µg / √Hz 883 (µm / s ²) / √Hz [3]

    spectral noise (1,000 Hz) 32 µg / √Hz 314 (µm / s ²) / √Hz [3]
    Physical properties
    measurements 0.38 oz 10.5 grams [3]

    sensor element quartz

    geometry of the Sensor element shear principle

    housing material titanium

    sealing hermetically sealed welded

    Electrical connection 10-32-coaxial socket

    connection position above

    Mounting thread 10-32 female thread

    Assembly torque 10 … 20 in-lb 113 … 225 NCM
    notes
    [1] Zero-balance just, determined using the method of least squares

    [2] transverse acceleration sensitivity typically ≤ 3%

    [3] typically

    [4] details: see PCBs Declaration of conformance PS023
    equipment
    080A109 Mount wax -1

    081 B 05 mounting bolts (10-32 on 10-32) -1

    ACS-1 Frequency response, traceable to NIST (10 Hz up to the upper 5% point) -1

    M081B05 mounting bolts 10-32 to M6 x 0.75 -1
    (J) mass insulation of
    frequency range (5%) 4,000 Hz

    frequency range (10%) 7,000 Hz

    Frequency range (3 dB) 10,000 Hz

    resonance frequency 22

    electrical insulation > 100,000,000Ω

    Size - hex 0.50 in 12.7 mm

    size - height 1.19 in 30.2 mm
    (W) Watertight cable connection
    connection position above
