PCB-478B05
zoom_out_map

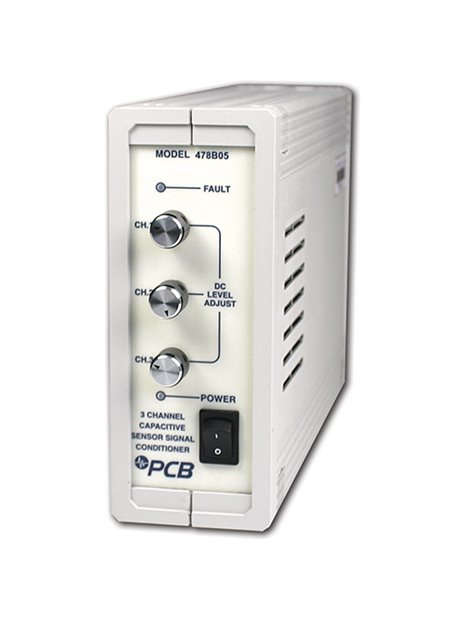

PCB-478B05

  • Versorgunseinheit for MEMS sensors
  • basic data
    number channels 3
    lower limiting frequency (±5%) 0 Hz
    top Cutoff frequency (±5%) ≥ 2,000 Hz
    voltage gain (±1%) 1 x
    electrical
    power supply f for sensor (±10%) 17.3 V
    DC Offset ±2, 25 mV
    spectral noise (1 Hz) 0.47 µV / √ Hz -12 dB [1]
    Spectral noise (10 Hz) 0.12 µV / √ Hz -139 dB [1]
    spectral noise (100 Hz) 0.075 MV / √ Hz -142 dB [1]
    Spectral noise (1,000 Hz) 0.075 MV / √ Hz -142 dB [1]
    spectral noise (10,000 Hz) 0.075 MV / √ Hz -142 dB [1]
    Wide band noise (1 … 10,000 Hz) 5.0 MV -106 dB [1]
    supply voltage (via adapter)
    Voltage 32 … 38 V DC [2]
    power consumption 0.12 A
    -physical Properties
    (sensor input) connection 4-pin Jack
    connection (output) BNC Jack
    connection ( DC power supply) DIN socket
    size - deep 11 in 28 cm
    size - height 6.3 in 16 cm
    Size - width 2.4 in 6.1 cm
    mass 1.67 oz 756 grams
    notes
    [1] Typically
    [2] the right DC PSU supplied.
    [3] details: see PCBs Declaration of conformance PS024. CE conformity is only guaranteed, if the housing is earthed.
    Equipment
    017AXX Power cord-1
    488B 04/NCPower supply-1
    PCB-478B05

    Specific References

    Download

    478B05_drawing.PDF

    Technical drawing

    Download (682.42k)

    478B05_manual.PDF

    Operating instructions

    Download (1.67M)

    478B05_specs.PDF

    Technical data sheet

    Download (365.43k)
