Miniature acceleration sensors

Miniature acceleration sensors

Accelerometers with ceramic sensor elements are characterized by excellent resolution and high charge efficiency. These properties make it possible to realize even small sensor designs. Miniature acceleration transducers (mass from 0.16 grams) are used for measurements on small and light structures in which the vibration behavior may not be falsified by additionally applied large transducer masses. With miniature sensors frequencies of up to 15 kHz can be measured.

Showing 13-22 of 22 item(s)
Sort by:
Best sellers Relevance Name, A to Z Name, Z to A
Showing 13-22 of 22 item(s)

Active filters

PCB-352A21/NC
1

PCB-352A21/NC

  • ICP®-miniature vibration sensor,
  • Mass 0.6 grams.
  • Measuring range 500 g
  • Sensitivity 10 mV / g,.
  • Frequency range 1... 10,000 Hz,
  • 3-56 female connector on the side.
  • Without cable
    PCB-(M)353B18
    0

    PCB-(M)353B18

    • ICP®-miniature vibration sensor,
    • Measuring range 500 g
    • Sensitivity 10 mV / g,.
    • Frequency range 1... 10,000 Hz,
    • Mass 1.8 grams.
    • 10-32 female connector above
      PCB-352A24/NC
      1

      PCB-352A24/NC

      • ICP®-miniature vibration sensor,
      • Mass 0.8 grams.
      • Mass-insulated,.
      • Measurement range 50 g,
      • Sensitivity 100 mV/g,
      • Frequency range 1... 8,000 Hz,
      • 3-56 female connector on the side.
      • Without cable
        PCB-352A25/NC
        0

        PCB-352A25/NC

      • ICP®-miniature vibration sensor,
      • Mass 0.6 grams,
      • Measuring range 2,000 g
      • Sensitivity 2.5 mV / g,
      • Frequency range 1 … 10,000 Hz,
      • 3 56-connector side,
      • Without connection cable
          • PCB-352A56
          0

          PCB-352A56

        • ICP®-miniature vibration sensor,
        • Mass 1.8 grams,
        • With TEDS memory chip,
        • Measurement range 50 g,
        • Sensitivity 100 mV/g,
        • Frequency range 0.5 … 10,000 Hz,
        • 5-44 female connector on the side
            • PCB-352A57
            0

            PCB-352A57

            • ICP®-miniature vibration sensor,
            • Mass 1.3 grams.
            • With TEDS memory chip,.
            • Measuring range 2,000 g
            • Sensitivity 2.5 mV / g,.
            • Frequency range 0.5... 10,000 Hz,
            • 5-44 connector side,.
            • Suitable for vacuum applications
              (Special cables required, details on request)
              PCB-352A71
              1

              PCB-352A71

            • ICP®-miniature vibration sensor,
            • Mass 0.64 grams,
            • Measuring range 500 g
            • Sensitivity 10 mV / g,
              • ,
            • frequency range 0.5 … 10,000 Hz,
            • integrated cable, length 3 m,
              ending on 10-32 plug
                • PCB-352A72
                0

                PCB-352A72

              • ICP®-miniature vibration sensor,
              • Mass 0.64 grams,
              • With built-in low-pass filter,
              • Measuring range 500 g
              • Sensitivity 10 mV / g,
              • Frequency range 0.5 … 4,500 Hz,
              • Integrated cable, length 3 m,
                ending on 10-32 plug
                  • PCB-352A73
                  1

                  PCB-352A73

                • ICP®-miniature vibration sensor,
                • Mass 0.2 grams,
                • Measuring range 1000 g,
                • Sensitivity 5 mV / g,
                • Frequency range 2 … 10,000 Hz,
                • Integrated cable, length 3 m,
                  ending on 10-32 plug

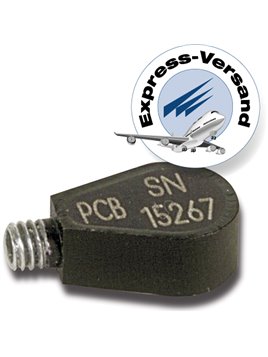

                    • PCB-352C22/NC
                    0

                    PCB-352C22/NC

                    • ICP®-miniature vibration sensor,
                    • Mass 0.5 grams.
                    • Mass-insulated,.
                    • Measuring range 500 g
                    • Sensitivity 10 mV / g,.
                    • Frequency range 1... 10,000 Hz,
                    • 3-56 female connector on the side.
                    • Without cable
