PCB Piezotronics was founded in 1967 as a manufacturer of piezoelectric quartz sensors, accelerometers, and associated electronics for the measurement of dynamic pressure, force, and vibration. The unique expertise of the company was the incorporation of microelectronic signal conditioning circuitry within these sensors to make them easier to use and more environmentally compatible. These ICP® sensors gained wide popularity and became the foundation for the company's success.
Subsequent growth and steady investment in facilities, machinery, and equipment permitted a constant broadening of the product offering. Measurement capabilities expanded with the addition of piezoceramic, tourmaline, capacitive, piezoresistive, and strain gage sensing technologies. Ensuing products include industrial accelerometers, DC accelerometers, load cells, torque sensors, microphones, pressure transmitters, and calibration equipment.
Showing 1897-1908 of 1981 item(s)
Showing 1897-1908 of 1981 item(s)

PCB-086C04

  • Impact hammer with integrated ICP® power sensor,
  • Hammer mass 0.16 kg,
  • Force to 4.448 N,
  • Sensitivity 1,1 mV / N,
  • Includes additional tips, mass and carrying case
    • PCB-086D05

    • Impact hammer with integrated ICP® power sensor,
    • Hammer mass 0.32 kg,
    • Force up to 22,000 N
    • Sensitivity 0.24 mV / N,
    • Includes additional tips, mass and carrying case
      • PCB-086D20

        • Impact hammer with integrated ICP® power sensor,
        • Hammer mass 1.1 kg,
        • Force up to 22,000 N
        • Sensitivity 0.24 mV / N,
        • Includes additional tips and carrying case

          PCB-086D50

        • Impact hammer with integrated ICP® power sensor,
        • Hammer mass 5.4 kg,
        • Force up to 22,000 N
        • Sensitivity 0.24 mV / N,
        • Includes additional tips and carrying case
          • PCB-426E01

          • ICP® preamplifiers for 1/2 "-microphones,
          • Gain - 0.05 dB,
          • Frequency range 0.9 … 125,000 Hz,
          • Incl. TEDS memory chip
            • PCB-130F20

              • ICP® array free field microphone,
              • with TEDS 1.0,
              • diameter 12.7 mm (rear) and 7 mm (front),
              • sensitivity 45 mV / PA,
              • dynamic range > 122 dB,
              • frequency range 10... 20,000 Hz,
              • BNC connector

                PCB-130F21

                • ICP® array free field microphone,
                • with TEDS 1.0,
                • diameter 7 mm,
                • sensitivity 45 mV / PA,
                • dynamic range > 122 dB,
                • frequency range 10... 20,000 Hz,
                • 10-32 socket

                  PCB-130F22

                  • ICP® array free field microphone,
                  • with TEDS 1.0,
                  • diameter 7 mm,
                  • sensitivity 45 mV / PA,
                  • dynamic range > 122 dB,
                  • frequency range 10... 20,000 Hz,
                  • SMB connector

                    PCB-352B70

                  • ICP® vibration sensor,
                  • Measuring range 5,000 g,
                  • Sensitivity 1 mV / g,
                  • Frequency range 0.7 … 9,000 Hz,
                  • 10-32 female connector above
                    • PCB-(M)352A60

                    • ICP® vibration sensor,
                    • Measuring range 500 g
                    • Sensitivity 10 mV / g,
                    • Frequency range 5 … 60,000 Hz,
                    • 5-44 female connector above
                      • PCB-352B

                        • ICP® vibration sensor,
                        • Measuring range 5 g,
                        • Sensitivity 1,000 mV / g,
                        • Frequency range 2 … 10,000 Hz,
                        • 10-32 female connector above

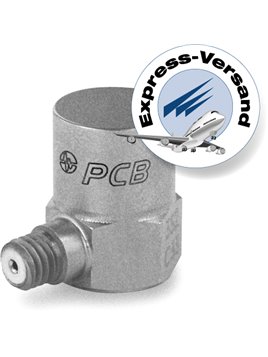

                          PCB-352C03

                          • ICP® vibration sensor,
                          • Measuring range 500 g
                          • Sensitivity 10 mV / g,.
                          • Frequency range 0.5... 10,000 Hz,
                          • 10-32 socket side
