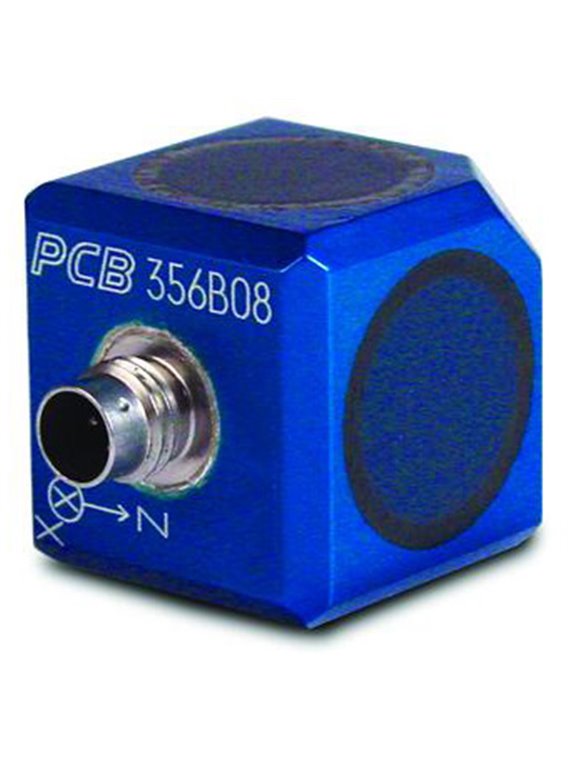

PCB-356B08
zoom_out_map

PCB-356B08

  • Triaxial ICP®-modal vibration sensor,
  • Measurement range 50 g,
  • Sensitivity 100 mV/g,
  • Frequency range 2 … 7,000 Hz,
  • 4-pin female connector on the side
  • basic data
    sensitivity (±10%) 100 mV/g 10 mV/(m/s²)
    range ±50 g pk ±490 m/s 2 pk
    frequency range (±5%) 0.5 … 5,000 Hz
    Frequency range (± 10%) 0.3 … 6,500 Hz
    resonance frequency ≥ 20,000 Hz
    wide band resolution 0.0001 g RMS 0.001 m/s² RMS [1]
    linearity ≤ 1% [2]
    Transverse acceleration sensitivity ≤ 5%
    conditions of use
    Overload limit (shock) ±7. 000 g PK ±68. 600 m/s² pk
    Temperature range (operation) 65 … 170 ° F -54 … 77 ° C
    Strain sensitivity (footprint) 0.001 g/µε 0.01 (m/s²)/µε [1]
    specifications
    power supply 20 … 30 V DC
    constant power supply 2 … 20 mA
    output impedance ≤200Ω
    Bias voltage 7 … 12 V DC
    discharging charging time constant 1.0 … 3.0 s
    Settling time < br(auf Bias-Spannung ±10 %) < 10 s
    spectral noise (1 Hz) 40 µg / √ Hz 392 (µm /) s ²) / √ Hz [1]
    spectral noise (10 Hz) 10 µg / √ Hz 98 (µm / s ²) / √ Hz [1]
    spectral noise (100 Hz) 3 µg / √ Hz 29.4 (µm / s ²) / √ Hz [1]
    spectral noise (1,000 Hz) 1 µg / √ Hz 9.8 (µm / s ²) / √ Hz [1]
    Spectral noise (10,000 Hz) 0,5 µg / √ Hz 4.9 (µm / s ²) / √ Hz [1]
    physical properties
    sensor element ceramic
    Geometry of the sensor element shear principle
    housing material anodized aluminum
    Sealing epoxy resin
    size - height 0.80 in 20.3 mm
    size - length 1.03 in 26.2 mm
    size - width 0.80 in 20.3 mm
    mass 0.72 oz 20 grams [1]
    Electrical connection 1/4 "-28 4-pin
    connection position side
    mounting thread 10-32 female thread '
    Notes
    [1] typically
    [2] zero-based balancing line, determined using the method of least squares
    [3] Details: See PCBs Declaration of conformance PS023
    equipment
    080A109 mounting wax -1
    080A68 adhesive mounting, 7/8 in hex, 10-32 thread, hardcoated aluminum -1
    081 B 05 mounting bolts (10-32 on 10-32) -1
    ACS-1T frequency response for Triaxial accelerometer, traceable to NIST, 10 Hz up to the upper 5% frequency -1
    M081B05 mounting bolts 10-32 to M6 x 0.75 -1
    (A) glue Assembly
    Accessories
    080A109 mounting wax -1
    080A90 Glue -1
    (J) mass insulation of
    electrical insulation > 100,000,000 Ω
    size - height 0.85 in 21.6 mm
    size - length 1.03 in 26.2 mm
    Size - width 0.85 in 21.6 mm
    mass 0.78 oz 22 grams
    (T) TEDS memory in accordance with IEEE PP1451. 4
    Bias voltage 8.5 … 13.0 V DC
    (TLA) TEDS LMS International - free format
    Bias voltage 8.5 … 13.0 V DC
    (TLB) TEDS LMS international - format for the automotive industry
    Bias voltage 8.5 … 13.0 V DC
    (TLC) TEDS LMS international - format for the aviation industry
    Bias voltage 8.5 … 13.0 V DC
