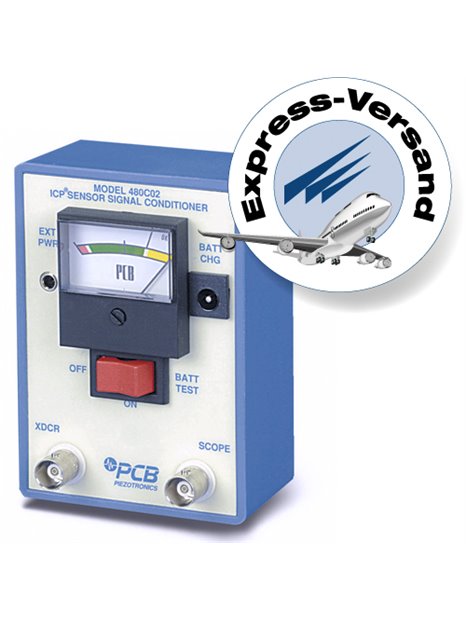

PCB-480C02
zoom_out_map

PCB-480C02

  • Battery-powered 1-channel power supply unit,
  • Input: ICP®,
  • Gain 1 x,
  • BNC input and output
basic data
number channels 1

frequency range (-5%) 0.05..≥ 500, 000 Hz   [2]

voltage gain (±2%) 1 x

bias voltage/error display Centre 13 VDC (±1 V)
conditions of use
temperature range 32... 122 ° F 0... 50 ° C
specifications
power supply (for sensor) 25... 29 V DC

constant power supply (for sensor) 2.0... 3.2 mA   [4]

discharging charging time constant > 7 s   [3]

DC Offset < 30 mV   [3]

Spectral noise (1 Hz) 0.25 µV/√Hz 132 dB

spectral noise (10 Hz) 0.07 µV/√Hz 143 dB

Spectral noise (100 Hz) 0.05 µV/√Hz -146 dB

Spectral noise (1,000 Hz) 0.04 µV/√Hz -148 dB

Spectral noise (10,000 Hz) 0.03 µV/√Hz -150 dB

Wide band noise (1... 10,000 Hz) 3.25 µV rms -110 dB rms

Power supply (standard) Batteries

Number of batteries 3

Battery type 9V block battery

Battery life (alkaline batteries) 100 hours

Battery life (rechargeable NiCd batteries) 36 hours

Power supply (alternative) External DC power supply

Supply voltage 25... 29 V DC   [1]

Power consumption 5 mA   [1]
Physical properties
Electrical connection (sensor input) BNC connector

Electrical connection (output) BNC connector

Electrical connection (external DC voltage supply) 3, 5 mm jack

Electrical connection (charger) Switchcraft Jack #722

Size - depth 4 in 10 cm

Size - height 2.9 in 7.4 cm

Size - width 2.2 in 5.6 cm

Weight (with batteries) 0.7 lb 0.3 kg
Notes
[1] When using an external DC power supply

[2] Lower cut-off frequency specified for an output load impedance of 1 MΩ

[3] With a starting weight of 1 MΩ

[4] Limited by an internal GLight power indicator light

[5] Details: see PCB Declaration of conformance PS024
PCB-480C02

Specific References

Download

480C02_drawing.PDF

Technical drawing

Download (972.77k)

480C02_manual.PDF

Operating instructions

Download (1.59M)

480C02_specs.PDF

Technical data sheet

Download (429.78k)
