PCB-401B04
zoom_out_map

PCB-401B04

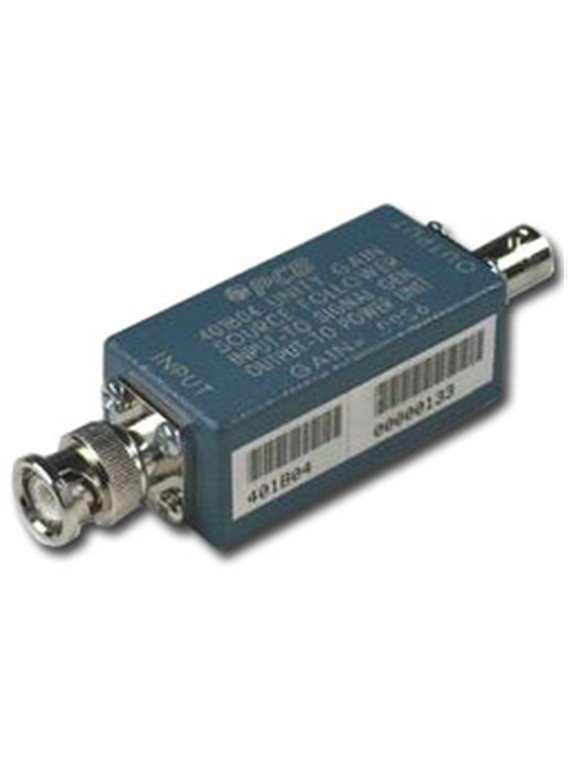

  • ICP® sensor Simulator for connection to a frequency generator,
  • For the validation of ICP® supply units
basic data
output range ± 5 V
Lower limit frequency 0 Hz
Upper limit frequency
(constant current 2 mA)
110,000 Hz [1]
Upper limit frequency
(constant current 4 mA)
220,000 Hz [1]
Upper limit frequency
(constant current 20 mA)
1,000,000 Hz [1]
linearity error 2% FS
Operating conditions
The temperature range (operation) 30 ... 150 ° F 0 ... 50 ° C
Technical characteristics
supply voltage 18 ... 30 V DC [3]
Constant current supply 2 ... 20 mA
output impedance <100 Ω
Bias voltage 7 ... 14 V DC
Broadband noise (10,000 Hz) 12 µVrms [2]
Spectral Noise (1 Hz) 4 µg/√Hz [2]
Spectral noise (10 Hz) 1 µg/√Hz [2]
Spectral noise (100 Hz) 0.3 µg/√Hz [2]
Spectral noise (1,000 Hz) 0.1 µg/√Hz [2]
Spectral noise (10,000 Hz) 0.05 µg/√Hz [2]
insulation resistance 1,000 MΩ
physical properties
housing material aluminum
Electrical connection (input) BNC connector
Electrical connection (output) BNC connector
Size - Length 2.2 in 55.9 mm
Size - Width 1.1 27.9
Size - Height 0.9 22.9
Dimensions 2.50 oz 70.9 grams
Hints
[1] Above the specified frequency errors occur because of the low maximum rise and fall rates.
[2] Typically, tested with a 1,000 pF capacitor at the input.
[3] In an open circuit voltage of <20 V DC input range is limited to ± 3V.
[4] Details: see PCB Declaration of Conformance PS024
PCB-401B04

Specific References

Download

401B04_drawing.PDF

Technical drawing

Download (61.15k)

401B04_manual.PDF

Operating instructions

Download (418.65k)

401B04_specs.PDF

Technical data sheet

Download (78.13k)
