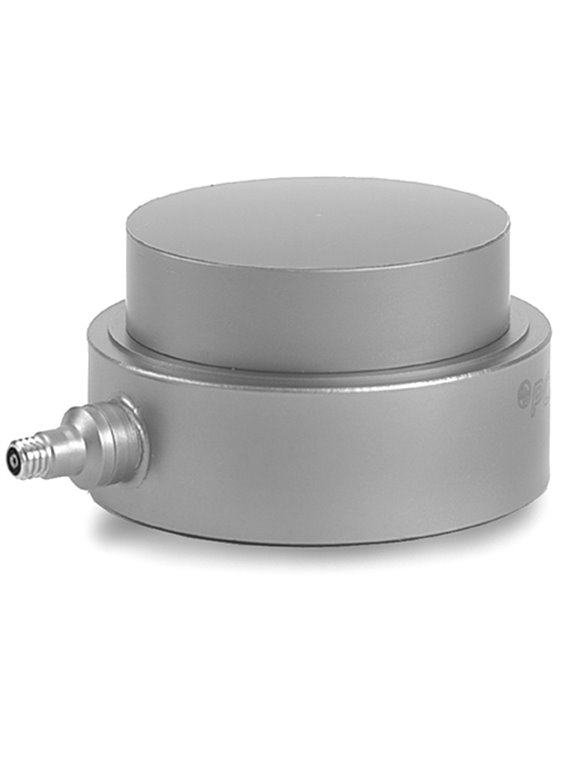

      • ICP® sensor for power measurement,
      • Measuring range 222 kN,
      • Sensitivity 22.5 mV / kN,.
      • Frequency range 0.0003... 30,000 Hz,
      • 10-32 socket side



      basic data
      sensitivity (±15%)0.10 mV / lb22.48 mV / kN

      measuring range (pressure)50,000 lb222.4 kN

      Maximum permissible static load (force)75,000 lb333,6 kN

      wide band resolution1 lb RMS4.45 N RMS[1]

      Lower limiting frequency (-5%)0.0003 Hz [2]

      upper limit frequency30.000 Hz[4]

      linearity error≤ 1% FS [3]
      conditions
      temperature range-65 … 250 ° F-54 … 121 ° C

      temperature coefficient Temperature coefficient of sensitivity≤0,05 %/°F? 0.27 %/°C
      technical properties
      discharge charge time constant (at room temperature) ≥ 2,000 s

      Supply20 … 30 V DC

      constant power supply2 … 20 mA

      Output impedance≤100 Ω

      Bias voltage8 … 14 V DC

      Spectral noise (1 Hz)0.10 lb / √Hz0.45 N / √Hz[1]

      spectral noise (10 Hz)0,0304 lb / √Hz0.14 N / √Hz[1]

      spectral noise (100 Hz)0,00807 lb / √Hz0,0360 N / √Hz[1]

      spectral noise (1,000 Hz)0,00193 lb / √Hz0,00862 N / √Hz[1]

      (pressure) output polaritypositive
      physical properties
      stiffness97 lb/µin17 kN/µm[1]

      Size - diameter2.125 in53.9 mm

      size - height0.750 in19.0 mm

      mass9.9 oz280 g

      housing materialstainless steel

      sealinghermetic

      Electrical connection10-32-coaxial socket

      connection positionside

      Mounting thread1/4 "-28 threadedno equivalent
      notes
      [1]typically

      [2]based on the" Calculated discharge charge time constant

      [3]zero-based balancing line, determined using the method of least squares

      [4]Accepted value determined on the basis of solid state Dynamics calculations

      [5]details: see PCBs Declaration of conformance PS023
      included Accessories
      080A81adhesive for thread lock-1

      081A06mounting bolts, 1/4 "28 to 1/4"-28 x 0.37 in long, BeCu, without shoulder-1

      081 B 20mounting bolts, with shoulder (1/4 "-28 1/4"-28)-1

      084A36premium cap, convex (for model 200-50)-1

      M081A61mounting bolts 1/4 "28 M6 x 1-1
      (S) negative output polarity

      (W) waterproof cable connection"
      Electrical connectionsealed cable connection

      cable exitside
