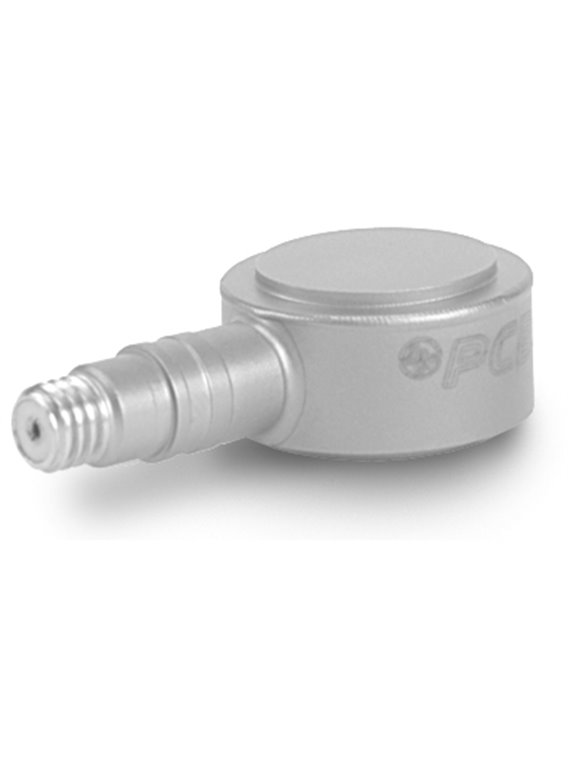

PCB-200B02
zoom_out_map

PCB-200B02

  • ICP® sensor for power measurement,
  • Measuring range 445 N,
  • Sensitivity 11,2 µV / N,
  • Frequency range 0.001 … 75,000 Hz,
  • 10-32 female connector on the side
  • basic data
    sensitivity (±15%) 50 mV / lb 11.241 mV / kN
    (pressure) measuring range 100 lb 0,4448 kN
    Maximum permissible static load (force) 600 lb 2,669 kN
    wide band resolution 0.002 lb RMS 0,008896 N RMS [1]
    Lower limiting frequency (-5%) 0.001 Hz [3]
    upper frequency limit 75,000 Hz [4]
    linearity error ≤ 1% FS [2]
    conditions
    temperature range -65 … 250 ° F -54 … 121 ° C
    temperature coefficient Temperature coefficient of sensitivity ≤ 0.03 %/°F ≤ 0,054 %/°C
    technical properties
    discharge charge time constant (at room temperature) ≥ 500 s
    Supply 20 … 30 V DC
    constant power supply2 … 20 mA
    Output impedance ≤ 100 Ω
    Bias voltage 8 … 14 V DC
    (Pressure) output polarity positive
    physical properties
    stiffness 11 lb/µin 1.9 kN/µm [1]
    Size - diameter 0,650 in 16.51 mm
    size - height 0.360 in 9.14 mm
    Gr öße - diameter of the measuring surface 0.500 in 12.7 mm
    mass 0.5 oz 14 grams
    housing material Stainless steel
    sealing hermetically sealed
    electrical connection 10-32-coaxial socket
    Connection position side
    mounting thread 10-32 female thread
    notes
    [1] Typically
    [2] zero-based balancing line, determined using the method of least squares
    [3] calculated on basis of discharging charging time constant
    [4] suppose value determined on the basis of solid state Dynamics calculations
    [5] details: see PCBs Declaration of conformance PS023
    equipment
    080A81 adhesive for thread lock -1
    081B 05 mounting bolts (10-32 on 10-32) -1
    084A83 impact plate -1
    M081A62 Mounting bolts, 10-32 to M6 x 1, BeCu, with shoulder -1
    (S) negative output polarity
    (W) waterproof cable connection
    Electrical connection sealed cable connection
    Cable exit side
