    PCB-200B01
    zoom_out_map

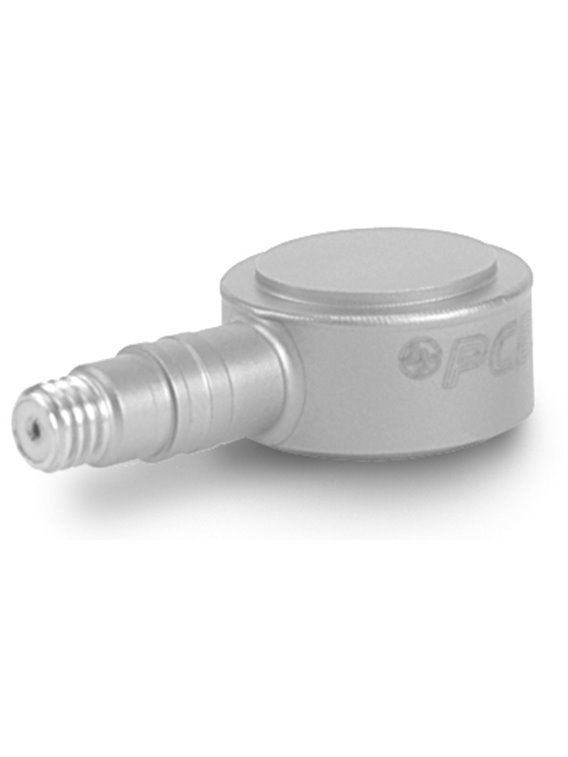

      PCB-200B01

    • ICP® sensor for power measurement,
    • Measuring range 44.5 N,
    • Sensitivity 112 mV / N,
    • Frequency range 0.01 … 75,000 Hz,
    • 10-32 female connector on the side
      • basic data
      sensitivity (±15%)/500 mV / lb112.410 mV / kN
      measuring range (pressure)10 lb0,04448 kN
      Maximum permissible static load (force)150 lb0,6672 kN
      wide band resolution0,0002 lb RMS 0,0008896 N RMS[1]
      lower limiting frequency (-5%)0.01 Hz[2]
      upper frequency limit 75,000 Hz[4]
      linearity≤ 1% FS[3]
      conditions
      temperature range-65 … 250 ° F-54 … 121 ° C
      Temperature coefficient of sensitivity≤ 0.03 %/°F≤ 0,054 %/°C
      technical
      discharging charging time constant (at Room temperature)≥ 50 s
      power18 … 30 V DC
      Konstantstromversorgung2 … 20 mA
      output impedance≤ 100 Ω
      Bias voltage8 … 12 V DC[5]
      (pressure) output polaritypositive
      physical properties
      stiffness11 lb/µin1.9 kN /. µm[1]
      size - diameter0,650 in16.51 mm
      size - height0.360 in9.14 mm
      Size - diameter of the measuring surface0.500 in12.7 mm
      mass0.5 oz14 grams
      go äusematerialstainless steel
      sealinghermetically sealed
      electrical connection10-32-coaxial socket
      Connection positionside
      mounting thread10-32 female thread
      notes
      [1 ]Typically
      [2]onBASIS of discharging charging time constant calculated
      [3]zero-based balancing line, determined using the method of least squares
      [4] Accepted value determined on the basis of solid state Dynamics calculations
      [5]the sensor contains a protected amplifier electronics, so a relatively long Time possible is.
      [6]details: see PCBs Declaration of conformance PS023
      equipment
      080A81adhesive for Thread lock-1
      081 B 05mounting bolts (10-32 on 10-32)-1
      084A83 Impact plate-1
      M081A62mounting bolts, 10-32 to M6 x 1, BeCu, with shoulder-1
      (N) negative Ausgangspolarit ät
      (W) waterproof cable connection
      electrical connectionsealed cable connection
      Cable outletSalim
      PCB-200B01

      Specific References

      Download

      200B01_drawing.PDF

      Technical drawing

      Download (132.66k)

      200B01_manual.PDF

      Operating instructions

      Download (991.31k)

      200B01_specs.PDF

      Technical data sheet

      Download (76.13k)
