List of products by supplier PCB Piezotronics, Inc.

Showing 1921-1932 of 1933 item(s)

Sort by:

Showing 1921-1932 of 1933 item(s)

PCB-TLD352M131

ICP®-Vibrationssensor,
Measuring range ± 50 g pk,
Sensitivity 100 mV / g,
Frequency range 0.5 ... 10.000 Hz,
10-32 connector at the top,
Ground isolated,
High frequency calibration included

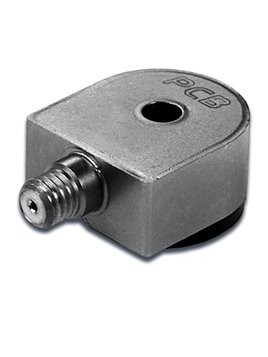

PCB-TLD355M102

ICP®-Vibrationssensor,
With through hole,
Ionizer with ground insulation,
Ground isolated,
Measuring range 500 g,
Sensitivity 10 mV / g,
Frequency range 1 ... 7,000 Hz,
10-32 connector on the side

PCB-TO(M)640B31

Vibrationstransmitter mit Stromausgang entsprechend
dem Spitzenwert der Schwinggeschwindigkeit,

Zusätzlicher Temperaturausgang,

Messbereich 0 … 25,4 mm/s,

Ausgangsbereich 4 … 20 mA,

Frequenzbereich 3 … 1.000 Hz,

4-Pin-Bajonettstecker oben

PCB-TO(M)640B32

Vibrationstransmitter mit Stromausgang entsprechend
dem Spitzenwert der Schwinggeschwindigkeit,

Zusätzlicher Temperaturausgang,

Messbereich 0 … 50,8 mm/s,

Ausgangsbereich 4 … 20 mA,

Frequenzbereich 3 … 1.000 Hz,

4-Pin-Bajonettstecker oben

PCB-TO(M)641B31

Vibrationstransmitter mit Stromausgang entsprechend
dem Effektivwert der Schwinggeschwindigkeit,

Zusätzlicher Temperaturausgang,

Messbereich 0 … 25,4 mm/s RMS,

Ausgangsbereich 4 … 20 mA,

Frequenzbereich 10 … 1.000 Hz,

4-Pin-Bajonettstecker oben

PCB-TO(M)646B32

Vibrationstransmitter mit Stromausgang entsprechend
dem Effektivwert der Schwingbeschleunigung,

Zusätzlicher Temperaturausgang,

Messbereich 0 … 10 g RMS,

Ausgangsbereich 4 … 20 mA,

Frequenzbereich 3 …?10.000 Hz,

4-Pin-Bajonettstecker oben

PCB-VO(M)622A01

Industrial ICP® vibration sensor,

With vibration velocity output

Measuring range 1.27 m/s,

Sensitivity 3.9 V/(m/s),

Frequency range 3 … 9,000 Hz,

Frequency response calibration,

2-pin female connector above

PCB-VO(M)622A11

Industrial ICP® vibration sensor,

With vibration velocity output

Measuring range 1.27 m/s,

Sensitivity 3.9 V/(m/s),

Frequency range 3 … 9,000 Hz,

Frequency response calibration,

Integrated cable, length 3 m,
ending on cut end

PCB-VO(M)625B01

Industrial ICP® vibration sensor,

With vibration velocity output

With through hole,

Measuring range 1.27 m/s,

Sensitivity 3.9 mV/(mm/s),

Frequency range 1.5 … 6,000 Hz,

Frequency response calibration,

2-pin female connector on the side

PCB-W(M)320C15

ICP® high-temperature vibration sensor,

Continuous use temperature up to 163 ° C,

Water - and oil-tight cable connection,

Measuring range 500 g

Sensitivity 10 mV / g,

Frequency range 2 … 10,000 Hz,

Mass 2 grams,

5-44 female connector on the side

PCB-W356A61/NC

Triaxial ICP® high-temperature vibration sensor,

Continuous use temperature up to 163 ° C,

Water - and oil-tight cable connection,

With built-in low-pass filter,

Measuring range 500 g

Sensitivity 10 mV / g,

Frequency range 2 … 4,000 Hz,

Weight 4 grams,

Integrated connection cable, length 1.5 m,
ending on 4-pin female connector,

without extension cable

PCB-WHT356B11/NC

Triaxial ICP® high-temperature vibration sensor,

Continuous use temperature up to 163 ° C,

Water - and oil-tight cable connection,

Measuring range 500 g

Sensitivity 10 mV / g,

Frequency range 2 … 10,000 Hz,

Weight 4 grams,

Integrated connection cable, length 1.5 m,
ending on 4-pin female connector,

without extension cable
