List of products by supplier PCB Piezotronics, Inc.

Amplitude calibration of triaxial PCB accelerometers from 10 Hz up to the top 5% frequency, NIST traceable

Amplitude calibration of uniaxial PCB accelerometers from 10 Hz up to the upper 5% frequency, NIST traceable

Calibration of modal hammer

Calibration of PCB modal hammer model series 086

Amplitude calibration of triaxial accelerometers from 10 Hz up to the upper 5% frequency, NIST traceable

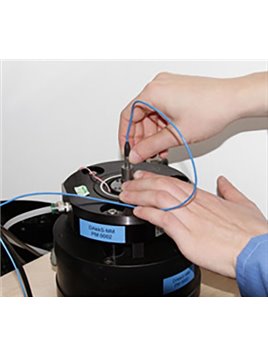

Amplitude calibration of uniaxial accelerometers from 10 Hz up to the upper 5% frequency, NIST traceable

• Works with Windows, iOS, Linux, Android, and Mac OS
• Record vibration data via laptop or tablet
• Uses existing operating system drivers – no download required
• Piezoelectric ruggedness and extended dynamic range
• Eliminates need for data acquisition
• Flat response up to 8 kHz
• 24 bit internal ADC
• Supported by independent software vendors

• Easily save and share data on-the-go
• Plug & play signal conditioning
• Makes high quality measurement more accessible
• Pocket-sized, USB powered, portable signal conditioning
• Analysis options from time domain to RMS to FFT and more
• Simplifies measurement chain without sacrificing quality
• No driver installation required

• For perfect shots in the Studio
• For analysis of the acoustics
• To the calibration of live performances
• For loudspeaker optimization
• To test microphones and monitors

• IP69K compliant ICP® acceleration sensor Kit, low-noise,
• Aligned on high hygienic requirements in food production.
• Consisting of sensor PCB-(M)601A92 & cable 507QSXXXBZ,.
• Industrial ICP® vibration sensor,
• Measuring range 10 g,
• Sensitivity 500 mV / g,.
• Frequency range 0.17... 10,000 Hz,
• One-point calibration at 100 Hz,
• M12 socket top

• IP69K compliant ICP® acceleration sensor Kit, side mounted,
• Aligned on the hygienic requirements in food production.
• Sensor PCB-(M)602D91 & cable 507QSXXXBZ,
• Industrial ICP® vibration sensor,
• With drill through,.
• Measurement range 50 g,
• Sensitivity 100 mV/g,
• Frequency range 0.5... 8,000 Hz,
• One-point calibration at 100 Hz,
• M12 connector

• IP69K compliant ICP® acceleration sensor Kit, compact design,
• Aligned on high hygienic requirements in food production.
• Consisting of sensor PCB-(M)603C91 & cable 507QSXXXBZ,.
• Industrial ICP® vibration sensor,
• Measurement range 50 g,
• Sensitivity 100 mV/g,
• Frequency range 0.5... 10,000 Hz,
• One-point calibration at 100 Hz,
• M12 socket top
