List of products by brand PCB Piezotronics

PCB Piezotronics was founded in 1967 as a manufacturer of piezoelectric quartz sensors, accelerometers, and associated electronics for the measurement of dynamic pressure, force, and vibration. The unique expertise of the company was the incorporation of microelectronic signal conditioning circuitry within these sensors to make them easier to use and more environmentally compatible. These ICP® sensors gained wide popularity and became the foundation for the company's success.

Subsequent growth and steady investment in facilities, machinery, and equipment permitted a constant broadening of the product offering. Measurement capabilities expanded with the addition of piezoceramic, tourmaline, capacitive, piezoresistive, and strain gage sensing technologies. Ensuing products include industrial accelerometers, DC accelerometers, load cells, torque sensors, microphones, pressure transmitters, and calibration equipment.

-> PCB Piezotronics Website

Showing 397-408 of 1981 item(s)

Sort by:

Showing 397-408 of 1981 item(s)

PCB-350B43/NC

ICP® Triaxial shock accelerometer, 0.5 mV/g, 10k g range, mechanically isolated and electrically filtered, 5-ft integral cable, no mating cable supplied

Sensitivity: (±30%)0.5 mV/g (0.05 mV/(m/s²))
Measurement Range: ±10000 g pk (±98000 m/s² pk)
Frequency Range: (±1dB)0.4 to 10000 Hz
Electrical Connector: Integral Cable (Integral Cable)

PCB-350B44/NC

ICP® Triaxial shock accelerometer, 1.0 mV/g, 5k g range, mechanically isolated and electrically filtered, 5-ft integral cable, no mating cable supplied

Sensitivity: (±30%)1.0 mV/g (.1 mV/(m/s²))
Measurement Range: ±5000 g pk (±49000 m/s² pk)
Frequency Range: (±1dB)0.4 to 10000 Hz
Electrical Connector: Integral Cable (Integral Cable)

PCB-351B14

Cryogenic, miniature, quartz shear ICP® accel., 5 mV/g, 1 to 8k Hz, 10-32 top conn. (-320 to +250F/-196 to +121C)

Sensitivity: (±10%)5 mV/g (0.51 mV/(m/s²))
Measurement Range: ±300 g pk (±2943 m/s² pk)
Broadband Resolution: 0.01 g rms (0.1 m/s² rms)
Frequency Range: (±5%)1 to 8000 Hz
Sensing Element: Quartz
Weight: 0.06 oz (1.8 gm)

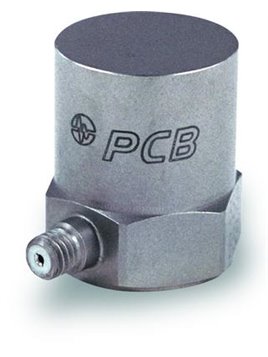

PCB-351B31

Cryogenic, quartz shear ICP® accel., 50 mV/g, 1 to 4k Hz, 10-32 side conn. (-320 to +250 F/-196 to +121 C)

Sensitivity: (±10%)50 mV/g (5.10 mV/(m/s²))
Measurement Range: ±30 g pk (±294 m/s² pk)
Broadband Resolution: 0.002 g rms (0.02 m/s² rms)
Frequency Range: (±5%)1 to 4000 Hz
Sensing Element: Quartz
Weight: 0.7 oz (20 gm)

PCB-352A26/NC

Miniature, Lightweight (0.2 gm), Ceramic Shear ICP® Accel., 10 mV/g, 2 to 10k Hz, No Extension Cable

Sensitivity: (±20%)10 mV/g (1.02 mV/(m/s²))
Measurement Range: ±500 g pk (±4905 m/s² pk)
Broadband Resolution: 0.003 g rms (0.03 m/s² rms)
Frequency Range: (±5%)2.0 to 10000 Hz
Sensing Element: Ceramic
Weight: 0.007 oz (0.2 gm)

PCB-352A59/NC

Teardrop ICP® accel; 10 mV/g; Titanium housing; TEDS version 1.0; no extension cable provided

Sensitivity: (±15%)10 mV/g (1.0 mV/(m/s²))
Measurement Range: ±500 g pk (±4900 m/s² pk)
Broadband Resolution: .005 g rms (.05 m/s² rms)
Frequency Range: (±5%)1.0 to 10000 Hz
Sensing Element: Ceramic
Weight: .03 oz (.9 gm)

PCB-354B04

Triaxial, Thru-hole mtg, Ceramic shear ICP® accel, 10 mV/g, 0.4 to 10 kHz, Case isolated, TEDS Ver 1.0, 4-pin connector, incl. both 6-32 & M3 fasteners

354B04 improves upon the 354A04 with extended frequency response to 10 kHz at 5%,

Sensitivity: (±5%)10.0 mV/g (1.02 mV/(m/s²))
Measurement Range: ±500 g pk (±4905 m/s² pk)
Electrical Connector: 1/4-28 4-Pin (1/4-28 4-Pin)

PCB-354B05

Triaxial, Thru-hole mtg, Ceramic shear ICP® accel, 100 mV/g, 0.4 to 10k Hz, Case isolated, TEDS Ver 1.0, 4-pin connector, incl. both 6-32 & M3 fasteners

354B05 improves upon the 354A05 with extended frequency response to 10 kHz at 5%,

Sensitivity: (±5%)100 mV/g (10.2 mV/(m/s²))
Measurement Range: ±50 g pk (±491 m/s² pk)
Electrical Connector: 1/4-28 4-Pin (1/4-28 4-Pin)

PCB-355A44

Miniature ring-style, ceramic shear ICP® accel., 10 mV/g, 1 to 9k Hz, integral cable, case isolated

10 mV/g version of 355M73. Similar low freq spec as M355B12. 1 Hz to 9 kHz +/-5%. Temp -65 to +250 F, 20 foot integral 032 cable, case isolated. No Hydrotest required. hermetic.

Sensitivity: (±10%)10 mV/g (1.02 mV/(m/s²))
Measurement Range: ±500 g pk (±4905 m/s² pk)
Broadband Resolution: 0.001 g rms (0.01 m/s² rms)
Frequency Range: (±5%)1 to 5500 Hz
Sensing Element: Ceramic
Weight: .13 oz (3.6 gm)

PCB-355M73

Miniature ring-style, ceramic shear ICP® accel., 100 mV/g, 7 to 10k Hz, integral waterproof cable, 20-ft twisted shielded pair to pigtails, case isolated

Waterproof, pressure tested cables over-molded directly to the sensor

Sensitivity: (±10%)100 mV/g (10.2 mV/(m/s²))
Measurement Range: ±50 g pk (±491 m/s² pk)
Broadband Resolution: 0.001 g rms (0.01 m/s² rms)
Frequency Range: (±5%)7 to 9000 Hz
Sensing Element: Ceramic
Weight: .13 oz (3.6 gm)

PCB-356A09/NC

Triaxial, lightweight (1.0 gm) miniature, adhesive mount, ceramic shear ICP® accel., 10 mV/g, 0.25" cube, mini 4-pin connector no mating cable supplied

Sensitivity: (±20%)10 mV/g (1.02 mV/(m/s²))
Measurement Range: ±500 g pk (±4905 m/s² pk)
Electrical Connector: 8-36 4-Pin (8-36 4-Pin)

PCB-356M132

Low Outgassing, Triaxial, high sensitivity, ceramic shear ICP® accel., 500 mV/g, 0.5 to 3k Hz, titanium hsg, 4-pin conn.

This accelerometer features low out-gassing construction that is ideal for use in thermal vacuum chambers for environmental testing.

Sensitivity: (±10%)500 mV/g (51 mV/(m/s²))
Measurement Range: ±10 g pk (±98 m/s² pk)
Electrical Connector: 1/4-28 4-Pin
