PCB Piezotronics was founded in 1967 as a manufacturer of piezoelectric quartz sensors, accelerometers, and associated electronics for the measurement of dynamic pressure, force, and vibration. The unique expertise of the company was the incorporation of microelectronic signal conditioning circuitry within these sensors to make them easier to use and more environmentally compatible. These ICP® sensors gained wide popularity and became the foundation for the company's success.
Subsequent growth and steady investment in facilities, machinery, and equipment permitted a constant broadening of the product offering. Measurement capabilities expanded with the addition of piezoceramic, tourmaline, capacitive, piezoresistive, and strain gage sensing technologies. Ensuing products include industrial accelerometers, DC accelerometers, load cells, torque sensors, microphones, pressure transmitters, and calibration equipment.
Showing 1789-1800 of 1981 item(s)
Showing 1789-1800 of 1981 item(s)

PCB-116B

  • Pressure sensor with stainless steel diaphragm and charge output,
  • Continuous use temperature-240 … 399 ° C,
  • Beschleunigungskompensiert,
  • Measuring range 690 kPa,
  • Sensitivity 0,870 pC/kPa,
  • 10-32 female connector
    • PCB-113B21

      • ICP® high frequency pressure sensor with INVAR-membrane,
      • Beschleunigungskompensiert,
      • Measuring range 1.379 kPa,
      • Sensitivity 3.6 mV / kPa,
      • Lower limiting frequency 0.5 Hz,
      • 10-32 female connector

        PCB-113B22

      • ICP® high frequency pressure sensor with INVAR-membrane,
      • Beschleunigungskompensiert,
      • Measuring range 34.475 kPa,
      • Sensitivity 0.145 mV / kPa,
      • Lower limiting frequency 0.001 Hz,
      • 10-32 female connector
        • PCB-113B23

        • ICP® high frequency pressure sensor with INVAR-membrane,
        • Beschleunigungskompensiert,
        • Measuring range 68.950 kPa,
        • Sensitivity 0.073 mV / kPa,
        • Lower limiting frequency 0.0005 Hz,
        • 10-32 female connector

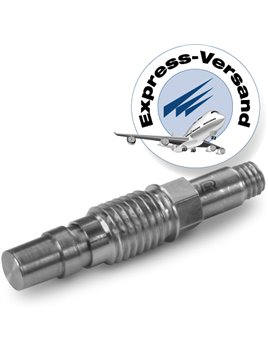

          • PCB-113B24

          • ICP® high frequency pressure sensor with INVAR-membrane,
          • beschleunigungskompensiert,
          • Measuring range 6.895 kPa,
          • Sensitivity 0,725 mV / kPa,
          • Lower limiting frequency 0.005 Hz,
          • 10-32 female connector
            • PCB-113B26

              • ICP® high frequency pressure sensor with INVAR-membrane,
              • Beschleunigungskompensiert,
              • Measuring range 3.450 kPa,
              • Sensitivity 1.45 mV / kPa,
              • Lower limiting frequency 0.01 Hz,
              • 10-32 female connector

                PCB-113B27

                • ICP® high frequency pressure sensor with INVAR-membrane,
                • Beschleunigungskompensiert,
                • Measuring range 689,4 kPa,
                • Sensitivity 7.25 mV / kPa,
                • Lower limiting frequency 0.5 Hz,
                • 10-32 female connector

                  PCB-113B28

                • ICP® high frequency pressure sensor with INVAR-membrane,
                • Beschleunigungskompensiert,
                • Measuring range 344,7 kPa,
                • Sensitivity 14.5 mV / kPa,
                • Lower limiting frequency 0.5 Hz,
                • 10-32 female connector
                  • PCB-003G05

                  • Low-Noise-Teflon coaxial cable
                  • Length 1.5 m,
                  • 5-44 plug on 10-32 plug
                    • PCB-003G10

                    • Low-Noise-Teflon coaxial cable
                    • 3 meters,
                    • 5-44 plug on 10-32 plug
                      • PCB-003G20

                      • Low-Noise-Teflon coaxial cable
                      • Length 6 meters
                      • 5-44 plug on 10-32 plug
                        • PCB-003G30

                        • Low-Noise-Teflon coaxial cable
                        • Length 9 meters
                        • 5-44 plug on 10-32 plug
