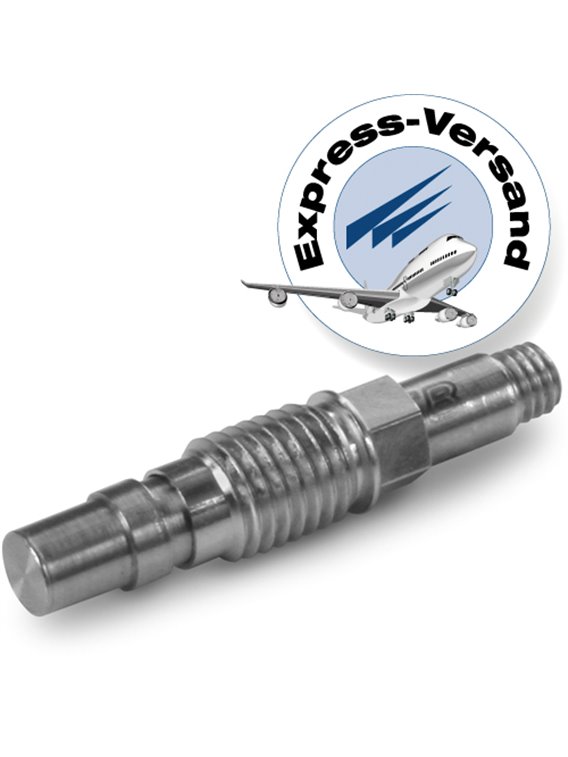

PCB-113B22

  • ICP® high frequency pressure sensor with INVAR-membrane,
  • Beschleunigungskompensiert,
  • Measuring range 34.475 kPa,
  • Sensitivity 0.145 mV / kPa,
  • Lower limiting frequency 0.001 Hz,
  • 10-32 female connector
  •

    basic data
    measuring range (±5 V output range) 5,000 psi 34.475 kPa

    usable range (output range ±10 V) 10,000 psi 68.950 kPa [3]

    sensitivity (±10%) 1.0 mV / psi 0.145 mV / kPa

    maximum pressure 15,000 psi 103.425 kPa

    Resolution 20 mpsi 0.14 kPa [1]

    resonance frequency ≥ 500, 000 Hz

    rise time ≤ 1.0 µs

    Lower limiting frequency (-5%) 0.001 Hz

    linearity ≤1.0% FS   [2]
    Conditions of use
    acceleration sensitivity ≤ 0.002 psi/g ≤ 0,0014 kPa/(m/s²)

    temperature range (operation) -100 … 275 ° F -73 … 135 ° C

    Temperature coefficient of sensitivity ≤ 0.03 %/°F ≤ 0,054 %/°C [1]

    maximum shock (for Fraction of a second) 3,000° F 1.649 ° C

    maximum acceleration 2,000 g pk 19.614 m/s 2 pk

    Maximum shock resistance 20,000 g pk 196.140 m/s² pk
    Technical properties
    Output polarity (positive pressure) positive

    Discharging charging time constant (at room temperature) ≥ 500 s

    supply 20 … 30 V DC

    Constant power supply 2 … 20 mA

    output impedance < 100Ω

    Bias voltage 8 … 14 V DC
    physical properties
    geometry of the sensor element compression principle

    Sensor element quartz

    Gehäusematerial 17-4 (Stainless steel)

    membrane INVAR

    sealing hermetically sealed welded

    Electrical connection 10-32-coaxial socket

    weight 0.21 oz 6.0 grams
    notes
    [1] Typically

    [2] zero-based balancing line, determined using the method of least squares

    [3] for a Output range up to 10 V, the supply voltage must be at least 24 V DC. At low bias voltage of the sensor, no negative output range is usable up to-10 V.

    [4] details: see PCBs Declaration of conformance PS023
    equipment
    060A03 installation sleeve, 5 /. 16-24-2A thread, 1/4 "hex, (stainless steel) -1

    060A05 installation sleeve, M7 x 0.75-6 g-thread -1

    065A02 sealing ring f for flush mounting, 0,248 "outside x 0.219"x 0.015 "high brass 3

    065A05 gasket spacer, 0,248" outside x 0,221 "x 0.240" high, 17-4 (Stainless steel) -1
    (E) Emralon coating
    coating Emralon

    electrical insulation >100 MΩ

    supplied accessories ör

    065A08 insulation ring, 0.250 "x outside 0,218" x 0.027 "high, anodized aluminium 3

    065A22 Seal, 0.250 "x outside 0,218" x 0.015 "high, Torlon or Vespel 3
    (S) stainless steel diaphragm

    (W)-waterproof Cable connection
    equipment

    060A03 installation sleeve, 5/16-24-2A thread, 1/4 "hex, (stainless steel) -1
    (WM) waterproof cable connection
    Accessories

    060A05 installation sleeve, M7 x 0,75-6 g-thread -1
