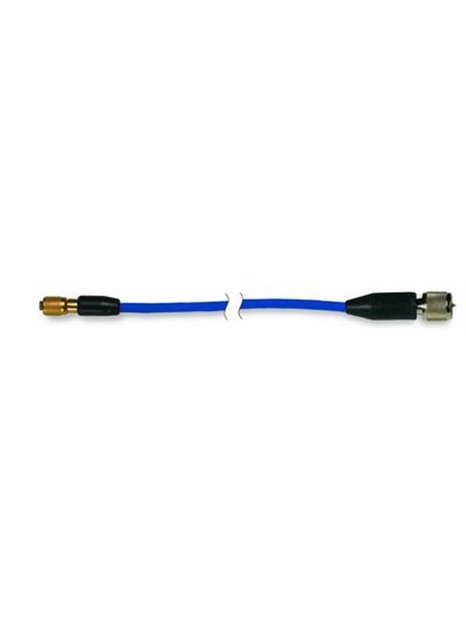

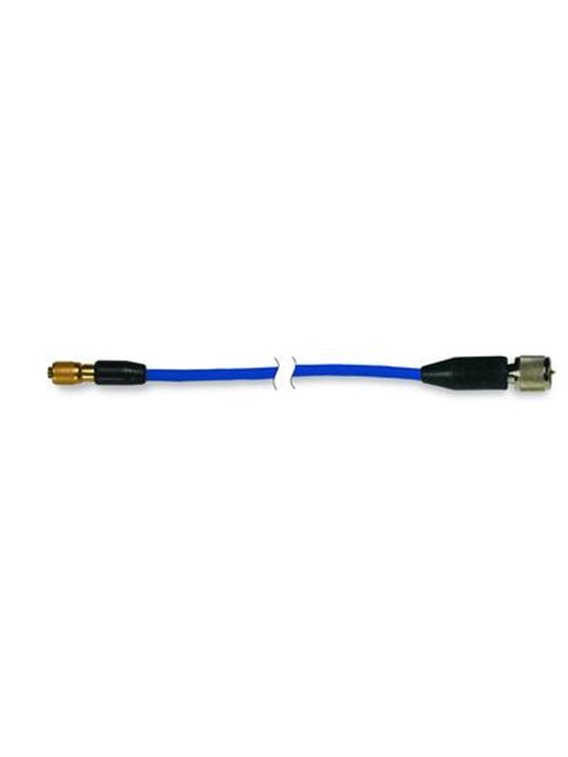

PCB-003G10
zoom_out_map

PCB-003G10

  • Low-Noise-Teflon coaxial cable
  • 3 meters,
  • 5-44 plug on 10-32 plug
  • connector/cable end 1
    connector type 5-44-KoaxialStecker
    Connector (signal) female
    Connection method coupling
    connection threads 5-44 cap ring
    temperature range - 320 … 500 ° F -196 … 260 ° C
    housing material brass
    size - od 0.16 in 4.1 mm
    size - length 0.66 in 17 mm
    mass 0.02 oz 0.72 grams
    Connector/cable end 2
    connector type 10-32 coaxial plug
    Connector (signal) male
    Connection method coupling
    Thread cap 10-32 ring
    strain relief moulded spout
    Temperature range -320 … 500 ° F -196 … 260 ° C
    Size - od 0.25 in 6.4 mm
    size - length 0.94 in 24 mm
    Mass 0.1 oz 2 grams
    cable
    cable length 10 ft 3 m
    cable type Low-noise coaxial cable
    Temperature -320 … 500 ° F -196 … 260 ° C
    train capacity 75 lb 330 N [1]
    Impedance (±2 Ω) 50 Ω
    capacity (±2 pF/ft) 30 pF / ft pF/m for 90
    insulation resistance ( at 50 V, 20 ° C) > 1 TΩ
    noise (pk-pk) ≤ 3 mV
    diameter of the sheath 0.079 in 2.01 mm [1]
    Coat material PTFE
    coat color Blue
    Wire version solid
    conductor material nickel-plated steel with copper plating
    Conductor diameter (29 AWG) 0.011 in 0,279 mm
    wire insulation virgin PTFE
    shield braided (at least 90% covered)
    Screen material nickel plated wire
    Noise barrier materials (via the ladders) liquid graphite
    Noise barrier materials (over isolation) Graphite impregnated PTFE tape
    minimum bending radius 1 in 25.4 mm
    Mass 0.1 oz/ft 9.5 gm/m [1]
    notes
    [1] typically
