Can be used universally

Universal use



The acceleration sensors presented here are versatile and cover a variety of applications. Due to the shear design, these sensors are characterized by good long-term stability. The integrated ICP® amplifier guarantees a clean transmission of the measurement signal, even with long test leads.



Showing 13-22 of 22 item(s)
Sort by:
Best sellers Relevance Name, A to Z Name, Z to A
Showing 13-22 of 22 item(s)

Active filters

PCB-356B11/NC
0

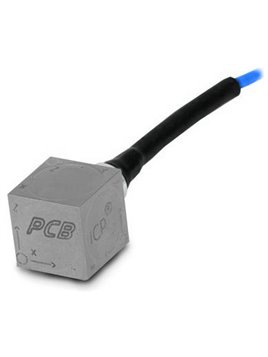

PCB-356B11/NC

  • Triaxial ICP® miniature vibration sensor,
  • Measuring range 500 g
  • Sensitivity 10 mV / g,
  • Frequency range 2 … 7,000 Hz,
  • Weight 4 grams,
  • Integrated connection cable, length 1.5 m,
    ending on 4-pin female connector,
  • without extension cable
      • PCB-356B18
      2

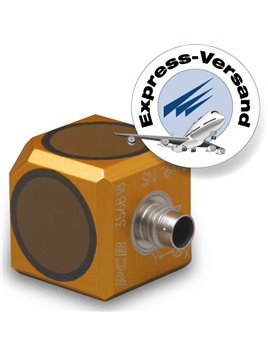

      PCB-356B18

      • Triaxial ICP®-modal vibration sensor,
      • Measuring range 5 g,
      • Sensitivity 1,000 mV / g,.
      • Frequency range 0.5... 3,000 Hz,
      • 4-pin female connector on the side
        PCB-356A01
        0

        PCB-356A01

        • Triaxial ICP® miniature vibration sensor,
        • Mass 1 gram,
        • Measuring range 1000 g,
        • Sensitivity 5 mV / g,
        • Frequency range 2 … 8,000 Hz,
        • Integrated connection cable, length 1.5 m, ending on 4-pin female connector,
        • including extension cable, length 1.5 m, ending to three BNC
          PCB-(M)354C02
          0

          PCB-(M)354C02

        • Triaxial ICP® vibration sensor,
        • With through hole,
        • Masseisoliert,
        • Measuring range 500 g
        • Sensitivity 10 mV / g,
        • Frequency range 0.5 … 2,000 Hz,
        • 4-pin female connector on the side
            • PCB-356B20/NC
            0

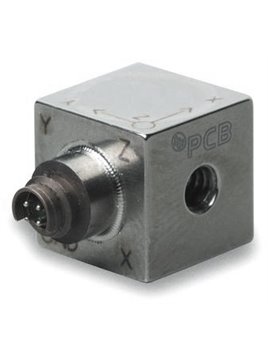

            PCB-356B20/NC

          • Triaxial ICP® miniature vibration sensor,
          • Measuring range 5,000 g,
          • Sensitivity 1 mV / g,
          • Frequency range 2 … 7,000 Hz,
          • Weight 4 grams,
          • 4-pin mini connector side,
          • Without connection cable
              • PCB-(M)354C03
              0

              PCB-(M)354C03

            • Triaxial ICP® vibration sensor,
            • With through hole,
            • Masseisoliert,
            • Measurement range 50 g,
            • Sensitivity 100 mV/g,
            • Frequency range 0.5 … 2,000 Hz,
            • 4-pin female connector on the side
                • PCB-356B21/NC
                1

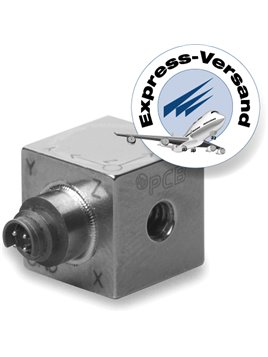

                PCB-356B21/NC

                • Triaxial ICP® miniature vibration sensor,
                • Measuring range 500 g
                • Sensitivity 10 mV / g,.
                • Frequency range 2... 7,000 Hz,
                • Weight 4 grams.
                • 4-pin mini connector on the side.
                • Without cable
                  PCB-356A32
                  0

                  PCB-356A32

                • Triaxial ICP® miniature vibration sensor,
                • Measurement range 50 g,
                • Sensitivity 100 mV/g,
                • Frequency range 1 … 4.000 Hz,
                • Mass 5 grams,
                • 4-pin mini connector side,
                • Including connection cable, length 3 m,
                  ending to three BNC
                    • PCB-356A02
                    0

                    PCB-356A02

                    • Triaxial ICP® vibration sensor,
                    • Measuring range 500 g
                    • Sensitivity 10 mV / g,.
                    • Frequency range 1... 5,000 Hz,
                    • 4-pin female connector on the side
                      PCB-356A03/NC
                      1

                      PCB-356A03/NC

                      • Triaxial ICP® miniature vibration sensor,
                      • Mass 1 gram,.
                      • Measuring range 500 g
                      • Sensitivity 10 mV / g,.
                      • Frequency range 2... 8,000 Hz,
                      • Integrated cable, length 1.5 m,
                        ending on 4-pin female connector.
                      • Without extension cable
