List of products by brand PCB Piezotronics

PCB Piezotronics was founded in 1967 as a manufacturer of piezoelectric quartz sensors, accelerometers, and associated electronics for the measurement of dynamic pressure, force, and vibration. The unique expertise of the company was the incorporation of microelectronic signal conditioning circuitry within these sensors to make them easier to use and more environmentally compatible. These ICP® sensors gained wide popularity and became the foundation for the company's success.
Subsequent growth and steady investment in facilities, machinery, and equipment permitted a constant broadening of the product offering. Measurement capabilities expanded with the addition of piezoceramic, tourmaline, capacitive, piezoresistive, and strain gage sensing technologies. Ensuing products include industrial accelerometers, DC accelerometers, load cells, torque sensors, microphones, pressure transmitters, and calibration equipment.
Showing 985-996 of 1981 item(s)
Showing 985-996 of 1981 item(s)

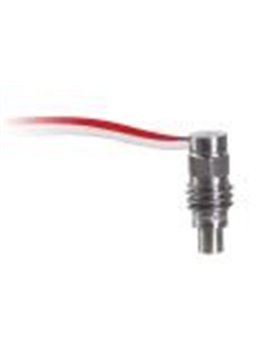

PCB-106B

  • Sub-miniature ICP® pressure sensor with stainless steel diaphragm
  • Measuring range 690 kPa
  • Sensitivity 7.3 mV / kPa
  • Lower limit frequency 0.5 Hz
  • Integrated connection cable

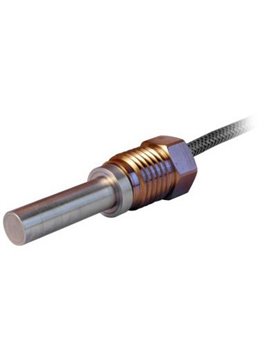

    PCB-176M09

    • Measurement Range: 20 psi (1.4 bar)
    • Sensitivity: (±20%) 17 pC/psi (247 pC/bar)
    • Sensing Element: UHT-12™
    • Temperature Range: -94 to 986 °F (-70 to 530 °C)
    • Electrical Connector: 7/16-27 2-Pin
    • Weight: 8.3 oz (235 gm)

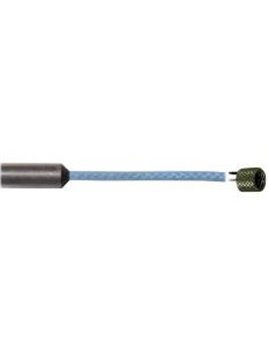

      PCB-132B38

      • Miniature-ICP® pressure sensor
      • Measuring range 345 kPa
      • Sensitivity 20.3 mV / kPa
      • Frequency range 11... 1,000 kHz
      • Integrated cable, length 3 m,
        ending on open ends

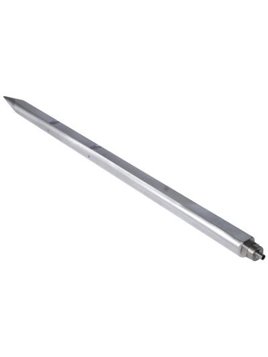

        PCB-137B25

        • ICP® pressure sensor
        • For blast pressure measurements
        • Measuring range 345 kPa
        • Sensitivity 14.5 mV / kPa
        • 4-pin connector

          PCB-137B26

          • ICP® pressure sensor
          • For blast pressure -and speed measurements
          • Measuring range 1724 kPa
          • Sensitivity 2.9 mV / kPa
          • 4-pin connector

            PCB-137B27

            • Measurement Range: 500 psi (3447 kPa)
            • Sensitivity: (±15%) 10 mV/psi (1.45 mV/kPa)
            • Resonant Frequency: >=400 kHz
            • Electrical Connector: 4-Pin
            • Weight: 16.1 oz (456 gm)

              PCB-137B28

              • Measurement Range: 1000 psi (6895 kPa)
              • Sensitivity: (±15%) 1 mV/psi (.145 mV/kPa)
              • Resonant Frequency: >=400 kHz
              • Electrical Connector: 4-Pin
              • Weight: 16.1 oz (456 gm)

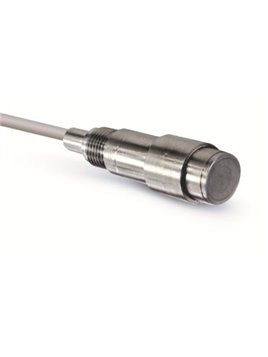

                PCB-176A02

                • Pressure sensor with charge output for detecting combustion instability in turbines,
                • With ATEX / CSA approval,
                • Continuous use temperature up to 650 ° C,
                • With UHT-12™ sensor element,
                  (no popcorn noise),
                • Measurement range 50 bar,
                • Sensitivity 87 pC/bar,
                • Frequency range up to 20,000 Hz,
                • Integrated hardline cable, length 3 m,
                  ending on 7/16-27-connector

                  PCB-034W05

                  • Protection class IP 68
                  • Shielded four-wire Teflon cable
                  • Length 1.5 meters
                  • 4-pin connector to three BNC connectors

                    PCB-034W10

                    • Protection class IP 68
                    • Shielded four-wire Teflon cable
                    • Length 3 meters
                    • 4-pin connector to three BNC connectors

                      PCB-034W20

                      • Protection class IP 68
                      • Shielded four-wire Teflon cable
                      • Length 6 meters
                      • 4-pin connector to three BNC connectors

                        PCB-034W30

                        • Protection class IP 68
                        • Shielded four-wire Teflon cable
                        • Length 9 meters
                        • 4-pin connector to three BNC connectors
