List of products by brand PCB Piezotronics

PCB Piezotronics was founded in 1967 as a manufacturer of piezoelectric quartz sensors, accelerometers, and associated electronics for the measurement of dynamic pressure, force, and vibration. The unique expertise of the company was the incorporation of microelectronic signal conditioning circuitry within these sensors to make them easier to use and more environmentally compatible. These ICP® sensors gained wide popularity and became the foundation for the company's success.
Subsequent growth and steady investment in facilities, machinery, and equipment permitted a constant broadening of the product offering. Measurement capabilities expanded with the addition of piezoceramic, tourmaline, capacitive, piezoresistive, and strain gage sensing technologies. Ensuing products include industrial accelerometers, DC accelerometers, load cells, torque sensors, microphones, pressure transmitters, and calibration equipment.
Showing 1549-1560 of 1981 item(s)
Showing 1549-1560 of 1981 item(s)

PCB-351B04

  • ICP® vibration sensor for cryogenic applications,
  • Continuous use temperature up to-196 ° C,
  • Measuring range 150 g,
  • Sensitivity 10 mV / g,
  • Frequency range 1 … 6,000 Hz,
  • 10-32 female connector above
    • PCB-(M)351B11

    • ICP® vibration sensor for cryogenic applications,
    • Continuous use temperature up to-196 ° C,
    • Measuring range 300 g,
    • Sensitivity 5 mV / g,
    • Frequency range 1 … 10,000 Hz,
    • Mass 2.5 grams,
    • 10-32 female connector on the side

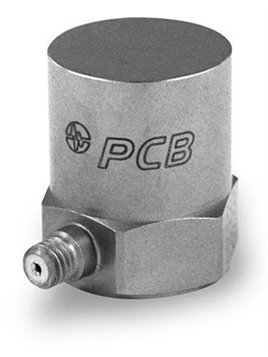

      • PCB-351B41

      • ICP® vibration sensor for cryogenic applications,
      • Continuous use temperature up to-196 ° C,
      • Measuring range 15 g,
      • Sensitivity 100 mV/g,
      • Frequency range 1 … 2,000 Hz,
      • 10-32 female connector on the side

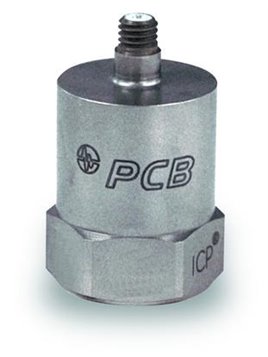

        • PCB-351B42

        • ICP® vibration sensor for cryogenic applications,
        • Continuous use temperature up to-196 ° C,
        • Measuring range 15 g,
        • Sensitivity 100 mV/g,
        • Frequency range 1 … 2,000 Hz,
        • 10-32 female connector above
          • PCB-3711B1110G

          • MEMS-DC acceleration sensor,
          • Suitable for measuring static accelerations,
          • Measuring range 10 g,
          • Sensitivity200 mV / g,
          • Frequency range 0 … 1,000 Hz,
          • Supply voltage 6 … 30 V DC,
          • 4-pin female connector on the side
            • PCB-3711B11200G

            • MEMS-DC acceleration sensor,
            • Suitable for measuring static accelerations,
            • Measuring range 200 g
            • Sensitivity 10 mV / g,
            • Frequency range 0 … 850 Hz,
            • Supply voltage 6 … 30 V DC,
            • 4-pin female connector on the side
              • PCB-3711B112G

              • MEMS-DC acceleration sensor,
              • Suitable for measuring static accelerations,
              • Measurement range 2 g,
              • Sensitivity 1,000 mV / g,
              • Frequency range 0 … 250 Hz,
              • Supply voltage 6 … 30 V DC,
              • 4-pin female connector on the side
                • PCB-3711B1130G

                • MEMS accelerometer,
                • Suitable for measuring static accelerations,
                • Measurement range 30 g,
                • Sensitivity 66.7 mV / g,
                • Frequency range 0 … 1,000 Hz,
                • Supply voltage 6 … 30 V DC,
                • 4-pin female connector on the side

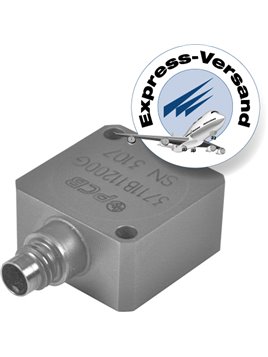

                  • PCB-3711B1150G

                  • MEMS accelerometer,
                  • Suitable for measuring static accelerations,
                  • Measurement range 50 g,
                  • Sensitivity 40 mV / g,
                  • Frequency range 0 … 1,000 Hz,
                  • Supply voltage 6 … 30 V DC,
                  • 4-pin female connector on the side
                    • PCB-3711B1210G

                    • MEMS accelerometer,
                    • Suitable for measuring static accelerations,
                    • Measuring range 10 g,
                    • Sensitivity200 mV / g,
                    • Frequency range 0 … 1,000 Hz,
                    • Supply voltage 6 … 30 V DC,
                    • Integrated cable, length 3 m,
                      ending on stripped and tinned ends
                      • PCB-3711B12200G

                      • MEMS accelerometer,
                      • Suitable for measuring static accelerations,
                      • Measuring range 200 g
                      • Sensitivity 10 mV / g,
                      • Frequency range 0 … 850 Hz,
                      • Supply voltage 6 … 30 V DC,
                      • Integrated cable, length 3 m,
                        ending on stripped and tinned ends
                        • PCB-3711B122G

                        • MEMS accelerometer,
                        • Suitable for measuring static accelerations,
                        • Measurement range 2 g,
                        • Sensitivity 1,000 mV / g,
                        • Frequency range 0 … 250 Hz,
                        • Supply voltage 6 … 30 V DC,
                        • Integrated cable, length 3 m,
                          ending on stripped and tinned ends
