List of products by brand PCB Piezotronics

PCB Piezotronics was founded in 1967 as a manufacturer of piezoelectric quartz sensors, accelerometers, and associated electronics for the measurement of dynamic pressure, force, and vibration. The unique expertise of the company was the incorporation of microelectronic signal conditioning circuitry within these sensors to make them easier to use and more environmentally compatible. These ICP® sensors gained wide popularity and became the foundation for the company's success.
Subsequent growth and steady investment in facilities, machinery, and equipment permitted a constant broadening of the product offering. Measurement capabilities expanded with the addition of piezoceramic, tourmaline, capacitive, piezoresistive, and strain gage sensing technologies. Ensuing products include industrial accelerometers, DC accelerometers, load cells, torque sensors, microphones, pressure transmitters, and calibration equipment.
-> PCB Piezotronics Website
Showing 1537-1548 of 1981 item(s)
Sort by:
Relevance Name, A to Z Name, Z to A
Showing 1537-1548 of 1981 item(s)

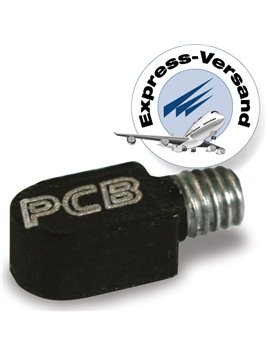

PCB-352C23
1

PCB-352C23

  • ICP®-miniature vibration sensor,
  • Mass 0.2 grams,
  • Masseisoliert,
  • Measuring range 1000 g,
  • Sensitivity 5 mV / g,
  • Frequency range 2 … 10,000 Hz,
  • 3 56-connector side,
  • Including connection cable, length 3 m,
    ending on 10-32 plug

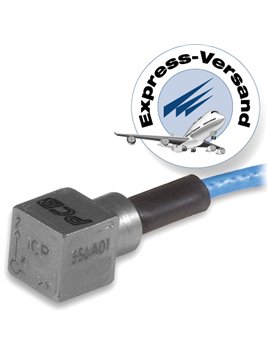

      • PCB-356A03
      0

      PCB-356A03

    • Triaxial ICP® miniature vibration sensor,
    • Mass 1 gram,
    • Measuring range 500 g
    • Sensitivity 10 mV / g,
    • Frequency range 2 … 8,000 Hz,
    • Integrated connection cable, length 1.5 m,
      ending on 4-pin female connector,
    • including extension cable, length 1.5 m,
      ending to three BNC
        • PCB-288D01
        1

        PCB-288D01

      • Piezoelectric impedance measuring head,
      • Combination of ICP® force sensor and ICP® vibration sensor,
      • Force: measurement range 222 N, sensitivity 22 mV / N,
      • Vibration: measurement range 50 g, Sensitivity 100 mV/g,
      • Two 10-32 connectors on the side
          • PCB-130A23
          0

          PCB-130A23

        • ICP® array free field microphone,
        • With TEDS 1.0,
        • Diameter 7 mm,
        • Sensitivity 14 mV / PA,
        • Dynamic range > 143 dB,
        • Frequency range 20 … 20,000 Hz,
        • SMB connector
            • PCB-130A24
            0

            PCB-130A24

            • Wasserdichtes ICP®-Array-free-fieldmikrofon,
            • Ideal für Akustikmessungen an Fahrzeugbremsen,
            • Mit TEDS 1.0,
            • Durchmesser 13,2 mm,
            • Empfindlichkeit 10 mV/Pa,
            • Dynamikbereich >143 dB,
            • Frequenzbereich 20 … 16.000 Hz,
            • BNC-Anschlussbuchse
              PCB-130B40
              0

              PCB-130B40

              • ICP® surface microphone,
              • with TEDS 1.0,
              • sensitivity 8.5 mV / PA,
              • dynamic range > 142 dB,
              • frequency range 20... 20,000 Hz,
              • integrated cable, length 1.5 m,
                ending on 10-32 plug
                PCB-357B69
                1

                PCB-357B69

              • Vibration sensor with charge output,
              • Continuous use temperature up to 482 ° C,
              • Decay,
              • Measuring range 500 g
              • Sensitivity 3.5 pC/g,
              • Upper frequency limit 6,000 Hz,
              • 10-32 socket side,
              • Including hardline cable
              • 3 meters,
              • Ending on 10-32 socket
                  • PCB-357C71
                  0

                  PCB-357C71

                • Vibration sensor with charge output,
                • Continuous use temperature up to 482 ° C,
                • Decay,
                • Measuring range 500 g
                • Sensitivity 10 pC/g,
                • Upper frequency limit 4,000 Hz,
                • 2-pin female connector on the side
                    • PCB-357C72
                    0

                    PCB-357C72

                  • Vibration sensor with charge output,
                  • Continuous use temperature up to 482 ° C,
                  • Decay,
                  • Measuring range 500 g
                  • Sensitivity 50 pC/g,
                  • Upper limit frequency 2.500 Hz,
                  • 2-pin female connector on the side
                      • PCB-357C73
                      0

                      PCB-357C73

                    • Vibration sensor with charge output,
                    • Continuous use temperature up to 482 ° C,
                    • Decay,
                    • Measuring range 500 g
                    • Sensitivity 100 pC/g,
                    • Upper frequency limit 2,000 Hz,
                    • 2-pin female connector on the side
                        • PCB-357E91
                        0

                        PCB-357E91

                        • Vibration sensor with charge output,
                        • Measuring axis perpendicular to the mounting screw,
                        • Continuous use temperature up to 649 ° C,
                        • With drill through,
                        • Measuring range 1000 g,
                        • Sensitivity 5 pC/g,
                        • Upper cutoff frequency 2.500 Hz,
                        • Integrated hardline cable, length 3 m, ending on 10-32 socket,
                        • New: Slim 10-32 socket (diameter 6. 35 mm),

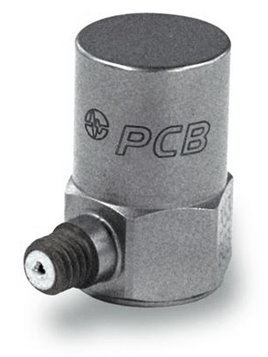

                          PCB-351B03
                          0

                          PCB-351B03

                        • ICP® vibration sensor for cryogenic applications,
                        • Continuous use temperature up to-196 ° C,
                        • Measuring range 150 g,
                        • Sensitivity 10 mV / g,
                        • Frequency range 1 … 6,000 Hz,
                        • 10-32 female connector on the side
