List of products by brand PCB Piezotronics

PCB Piezotronics was founded in 1967 as a manufacturer of piezoelectric quartz sensors, accelerometers, and associated electronics for the measurement of dynamic pressure, force, and vibration. The unique expertise of the company was the incorporation of microelectronic signal conditioning circuitry within these sensors to make them easier to use and more environmentally compatible. These ICP® sensors gained wide popularity and became the foundation for the company's success.
Subsequent growth and steady investment in facilities, machinery, and equipment permitted a constant broadening of the product offering. Measurement capabilities expanded with the addition of piezoceramic, tourmaline, capacitive, piezoresistive, and strain gage sensing technologies. Ensuing products include industrial accelerometers, DC accelerometers, load cells, torque sensors, microphones, pressure transmitters, and calibration equipment.
-> PCB Piezotronics Website
Showing 1189-1200 of 1981 item(s)
Sort by:
Relevance Name, A to Z Name, Z to A
Showing 1189-1200 of 1981 item(s)
PCB-HT356B20/NC
1

PCB-HT356B20/NC

  • Triaxial ICP® high-temperature vibration sensor,
  • Measuring range 5,000 g,
  • Sensitivity 1 mV / g,
  • Frequency range 2 … 10,000 Hz,
  • Weight 4 grams,
  • 4-pin mini connector side,
  • Without connection cable
      • PCB-HT356B21/NC
      0

      PCB-HT356B21/NC

      • Triaxial ICP® high-temperature vibration sensor,
      • Continuous use temperature up to 163 ° C,
      • Measuring range 500 g
      • Sensitivity 10 mV / g,.
      • Frequency range 2... 7,000 Hz,
      • Weight 4 grams.
      • 4-pin mini connector on the side.
      • Without cable
        PCB-TLD339A34
        0

        PCB-TLD339A34

      • Triaxial ICP® high-temperature vibration sensor,
      • Continuous use temperature up to 163 ° C,
      • Low temperature coefficient,
      • Measuring range 100 g,
      • Sensitivity 50 mV / g,
      • Frequency range 1 … 8,000 Hz,
      • 4-pin female connector on the side
          • PCB-TLD339A36
          0

          PCB-TLD339A36

        • Triaxial ICP® high-temperature vibration sensor,
        • Continuous use temperature up to 163 ° C,
        • Low temperature coefficient,
        • With built-in low-pass filter,
        • Measuring range 500 g
        • Sensitivity 10 mV / g,
        • Frequency range 1 … 8,000 Hz,
        • 4-pin female connector on the side
            • PCB-3713E1150G
            0

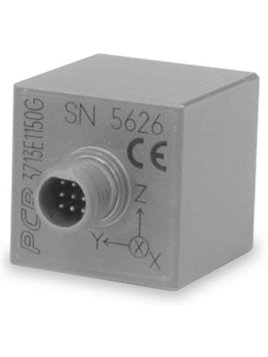

            PCB-3713E1150G

          • Triaxial MEMS accelerometer,
          • Suitable for measuring static accelerations,
          • Measurement range 50 g,
          • Sensitivity 40 mV / g,
          • Typical frequency range 0 … 2,000 Hz,
          • Supply voltage 6 … 30 V DC,
          • 9-pin female connector on the side
              • PCB-(M)601A01
              1

              PCB-(M)601A01

            • Industrial ICP® vibration sensor,
            • Measurement range 50 g,
            • Sensitivity 100 mV/g,
            • Frequency range 0.27 … 10,000 Hz,
            • One-point calibration at 100 Hz,
            • 2-pin female connector above
                • PCB-(M)601A02
                0

                PCB-(M)601A02

              • Industrial ICP® vibration sensor,
              • Measuring range 10 g,
              • Sensitivity500 mV / g,
              • Frequency range 0.17 … 10,000 Hz,
              • One-point calibration at 100 Hz,
              • 2-pin female connector above
                  • PCB-(M)601A11
                  0

                  PCB-(M)601A11

                • Industrial ICP® vibration sensor,
                • Measurement range 50 g,
                • Sensitivity 100 mV/g,
                • Frequency range 0.27 … 10,000 Hz,
                • One-point calibration at 100 Hz,
                • Integrated cable, length 3 m,
                  ending on cut end
                    • PCB-(M)601A62
                    1

                    PCB-(M)601A62

                  • Industrial ICP® vibration sensor,
                  • Measuring range 10 g,
                  • Sensitivity500 mV / g,
                  • Frequency range 0.17 … 10,000 Hz,
                  • One-point calibration at 100 Hz,
                  • Integrated armored cable, length 3 m,
                    ending on cut end
                      • PCB-(M)601A92
                      0

                      PCB-(M)601A92

                    • Industrial ICP® vibration sensor,
                    • Measuring range 10 g,
                    • Sensitivity500 mV / g,
                    • Frequency range 0.17 … 10,000 Hz,
                    • One-point calibration at 100 Hz,
                    • M12 connection socket top
                        • PCB-(M)602D01
                        0

                        PCB-(M)602D01

                      • Industrial ICP® vibration sensor,
                      • With through hole,
                      • Measurement range 50 g,
                      • Sensitivity 100 mV/g,
                      • Frequency range 0.5 … 8,000 Hz,
                      • One-point calibration at 100 Hz,
                      • 2-pin female connector on the side
                          • PCB-(M)602D02
                          0

                          PCB-(M)602D02

                        • Industrial ICP® vibration sensor,
                        • With through hole,
                        • Measuring range 10 g,
                        • Sensitivity500 mV / g,
                        • Frequency range 0.5 … 3,000 Hz,
                        • One-point calibration at 100 Hz,
                        • 2-pin female connector on the side
