List of products by brand PCB Piezotronics

PCB Piezotronics was founded in 1967 as a manufacturer of piezoelectric quartz sensors, accelerometers, and associated electronics for the measurement of dynamic pressure, force, and vibration. The unique expertise of the company was the incorporation of microelectronic signal conditioning circuitry within these sensors to make them easier to use and more environmentally compatible. These ICP® sensors gained wide popularity and became the foundation for the company's success.

Subsequent growth and steady investment in facilities, machinery, and equipment permitted a constant broadening of the product offering. Measurement capabilities expanded with the addition of piezoceramic, tourmaline, capacitive, piezoresistive, and strain gage sensing technologies. Ensuing products include industrial accelerometers, DC accelerometers, load cells, torque sensors, microphones, pressure transmitters, and calibration equipment.

-> PCB Piezotronics Website

Showing 109-120 of 1981 item(s)

Sort by:

Showing 109-120 of 1981 item(s)

PCB-HTJ356B01

Triaxial, lightweight miniature, ceramic shear ICP® accel., 5 mV/g, to +356 F (+180 C), ground isolated (incl. 034G05)

Sensitivity: (±20%)5 mV/g (0.51 mV/(m/s²))
Measurement Range: ±1000 g pk (±9810 m/s² pk)
Electrical Connector: Integral Cable

PCB-HTTLD356A02

Triaxial, general purpose, ceramic shear ICP® accel., 10 mV/g, 1 to 5k Hz, 14 mm cube size, 4-pin conn., +325 F operating temp, TEDS 1.0

Sensitivity: (±10%)10 mV/g (1.02 mV/(m/s²))
Measurement Range: ±500 g pk (±4900 m/s² pk)
Electrical Connector: 1/4-28 4-Pin

PCB-HTTLD356A15

Triaxial, high sensitivity, ceramic shear ICP® accel., 100 mV/g, 2 to 5k Hz, titanium hsg, 4-pin conn., TEDS 1.0, to +325F

Sensitivity: (±10%)100 mV/g (10.2 mV/(m/s²))
Measurement Range: ±50 g pk (±490 m/s² pk)
Electrical Connector: 1/4-28 4-Pin

PCB-HW

9-pin D-Sub plug (for mating to inputs of Model 478A30 signal conditioner)

PCB-J320C18

ESS mini (2 gm), quartz shear ICP® accel, 10 mV/g, 2 to 8k Hz, 10-32 top conn., 5-40 mtg stud (to +325 F) ground isolated

Sensitivity: (±10%)10 mV/g (1.02 mV/(m/s²))
Measurement Range: ±500 g pk (±4900 m/s² pk)
Broadband Resolution: 0.005 g rms (0.05 m/s² rms)
Frequency Range: (±5%)1.0 to 10000 Hz
Sensing Element: Quartz
Weight: 0.06 oz (1.7 gm)

PCB-J320C33

ESS high sensitivity, quartz shear ICP® accel, 100 mV/g, 1 to 4k Hz, 10-32 side conn. (to +325 F) ground isolated

Sensitivity: (±10%)100 mV/g (10.2 mV/(m/s²))
Measurement Range: ±50 g pk (±490 m/s² pk)
Broadband Resolution: 0.0003 g rms (0.003 m/s² rms)
Frequency Range: (±5%)1 to 4000 Hz
Sensing Element: Quartz
Weight: 0.7 oz (20 gm)

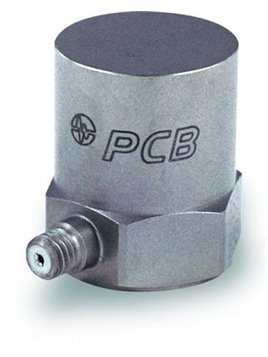

PCB-J351B41

Cryogenic, quartz shear ICP® accel., 100 mV/g, 1 to 2k Hz, 10-32 side conn. (-320 to +250 F/-196 to +121 C) ground isolated

Sensitivity: (±10%)100 mV/g (10.2 mV/(m/s²))
Measurement Range: ±15 g pk (±147 m/s² pk)
Broadband Resolution: 0.0005 g rms (0.005 m/s² rms)
Frequency Range: (±5%)1 to 2000 Hz
Sensing Element: Quartz
Weight: 1.4 oz (40 gm)

PCB-J352C04

General purpose, ceramic shear ICP® accel., 10 mV/g, 0.5 to 9k Hz, 10-32 top conn. ground isolated

Sensitivity: (±10%)10 mV/g (1.02 mV/(m/s²))
Measurement Range: ±500 g pk (±4900 m/s² pk)
Broadband Resolution: 0.0005 g rms (0.005 m/s² rms)
Frequency Range: (±5%)0.5 to 10000 Hz
Sensing Element: Ceramic
Weight: 0.20 oz (5.8 gm)

PCB-J352C33

High sensitivity, ceramic shear ICP® accel., 100 mV/g, 0.5 Hz to 9k Hz, 10-32 side conn., ground isolated

Sensitivity: (±10%)100 mV/g (10.2 mV/(m/s²))
Measurement Range: ±50 g pk (±490 m/s² pk)
Broadband Resolution: 0.00015 g rms (0.0015 m/s² rms)
Frequency Range: (±5%)0.5 to 10000 Hz
Sensing Element: Ceramic
Weight: 0.20 oz (5.8 gm)

PCB-J352C34

High sensitivity, ceramic shear ICP® accel., 100 mV/g, 0.5 Hz to 9k Hz, 10-32 top conn., ground isolated

Sensitivity: (±10%)100 mV/g (10.2 mV/(m/s²))
Measurement Range: ±50 g pk (±490 m/s² pk)
Broadband Resolution: 0.00015 g rms (0.0015 m/s² rms)
Frequency Range: (±5%)0.5 to 10000 Hz
Sensing Element: Ceramic
Weight: 0.20 oz (5.8 gm)

PCB-J352C65

High sensitivity, miniature (2 gm), ceramic shear ICP® accel., 100 mV/g, 0.5 to 8k Hz, 5-44 side conn., ground isolated

Sensitivity: (±10%)100 mV/g (10.2 mV/(m/s²))
Measurement Range: ±50 g pk (±491 m/s² pk)
Broadband Resolution: 0.00016 g rms (0.0015 m/s² rms)
Frequency Range: (±5%)0.5 to 10000 Hz
Sensing Element: Ceramic
Weight: 0.070 oz (2.0 gm)

PCB-J352C68

High sensitivity, miniature (2 gm), ceramic shear ICP® accel., 100 mV/g, 0.5 to 8k Hz, 10-32 top conn., ground isolated

Sensitivity: (±10%)100 mV/g (10.2 mV/(m/s²))
Measurement Range: ±50 g pk (±491 m/s² pk)
Broadband Resolution: 0.00016 g rms (0.0015 m/s² rms)
Frequency Range: (±5%)0.5 to 10000 Hz
Sensing Element: Ceramic
Weight: 0.070 oz (2.0 gm)
