PCB-(M)625B02
zoom_out_map

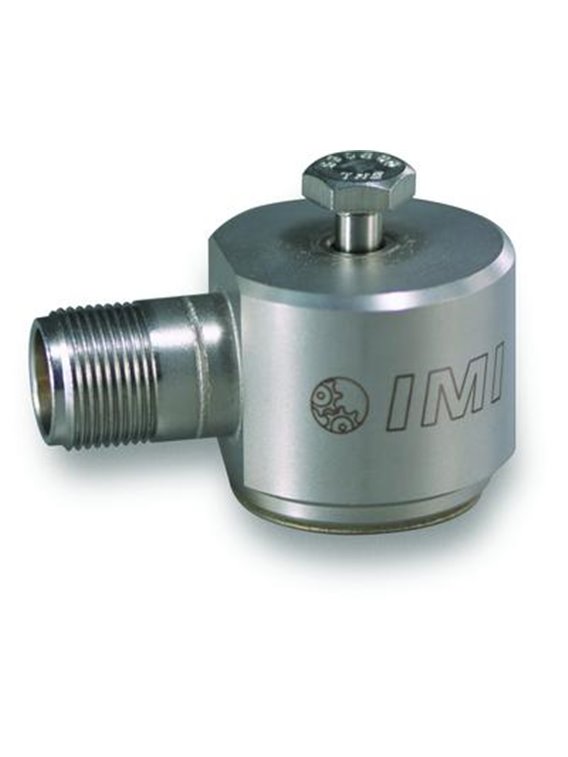

PCB-(M)625B02

  • Industrial ICP® vibration sensor,
  • With through hole,
  • Measuring range 10 g,
  • Sensitivity500 mV / g,
  • Frequency range 0.2 … 6,000 Hz,
  • Frequency response calibration,
  • 2-pin female connector on the side
  •

    basic data
    sensitivity (±5%) 500 mV / g 51 mV/(m/s²) [5]

    measuring range ± 10 g ±98 m / s²

    Frequency range (±5%) 30 … 120,000 cpm 0.5 … 2,000 Hz [1]

    frequency range (± 10%) 22 … 240,000 cpm 0,37 … 4,000 Hz

    frequency range (± 3 dB) 12 … 360,000 cpm 0.2 … 6,000 Hz

    resonance frequency 720 kcpm 12,000 Hz [] 4]

    wide band resolution 15 µg 147 µm / s ² [4]

    linearity ≤1%   [2]

    Transverse acceleration sensitivity ≤ 7%
    conditions of use
    Overload limit (shock) 2,500 g pk 24,525 m/s² pk

    temperature range -65 … 250 ° F -54 … 121 ° C

    Protection IP68
    technical characteristics
    settling time (on bias voltage ± 1%) ≤4,5 s

    discharging charging time constant ≥ 1.0 s

    Power 18 … 28 V DC

    constant power supply 2 … 20 mA

    output impedance < 100Ω

    Bias voltage 8 … 12V DC

    Spectral noise (10 Hz) 0.9 µg / √Hz 8.8 (µm / s ²) / √Hz [4]

    spectral noise (100 Hz) 0.7 µg / √Hz 7.0 (µm / s ²) / √Hz [4]

    spectral noise (1,000 Hz) 0.3 µg / √Hz 3.1 (µm / s ²) / √Hz [4]

    Electrical protection RFI/ESD

    electrical insulation (housing) >100 MΩ
    physical properties
    - diameterr 1.3 in 35.1 mm

    size - height 1 1/8 in 28.7 mm

    weight 6.1 oz 173 grams

    Mounting hole

    mounting thread 1/4"-28 no equivalent [3]

    Assembly torque 2 … 5 ft-lb 2.7 … 6.8 Nm

    Sensor element ceramic

    geometry of the sensor element shear principle

    parts usematerial stainless steel

    sealing hermetically sealed welded

    wiring 2-pin connector ( MIL-C-5015)

    connection position side
    notes
    [1] the upper cut-off frequency tolerance: ±10%

    [2] zero-based balancing line, determined using the method of least squares

    [3] mounting with M6 screw possible

    [4] typically

    [5] conversion factor 1 g = 9.81 m/s²

    [6] details: see PCBs Declaration of conformance PS023
    Accessories
    080 B 45 temperature protection -1

    081A73 Mounting screw 1/4 "-28 x 1.34" -1

    ICS-1 frequency response for uniaxial sensors from 10 Hz up to the upper 5% frequency -1
    (M) metric mounting
    Equipment

    M081A73 metric mounting bolt with M6 thread -1
    (TO) temperature output
    Temperature range 36 … 250 ° F 2 … 121 ° C

    Transcription factor 5.56 mV / ° F
    (zero point at 32 °F)
    10 mV / ° C

    electrical connection 3-Pin

    Pin assigNment (PIN A) acceleration output

    pin assigNment (PIN B) dimensions

    Pin assigNment (PIN C) temperature output
    (LB) low bias voltage
    Bias voltage 6 … 8 V DC

    Power 12 … 28 V DC

    measuring range ±7 g ±69 m/s²
