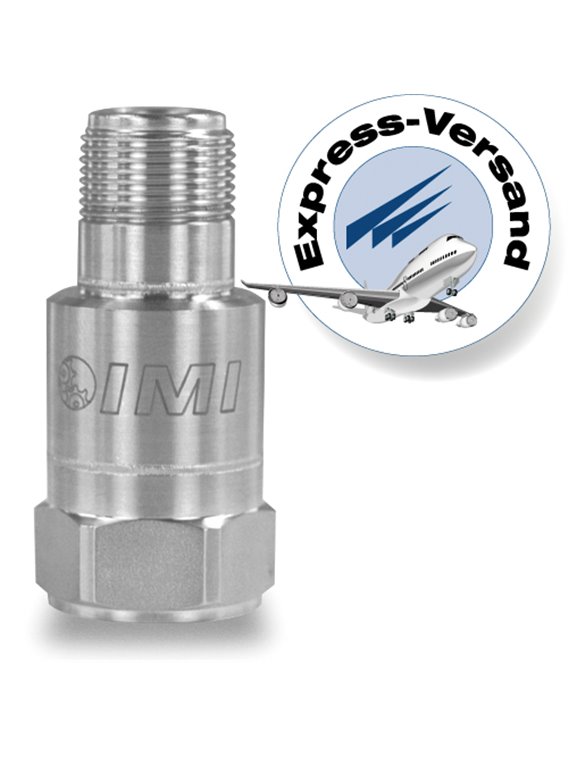

PCB-(M)622B01
    zoom_out_map

      PCB-(M)622B01

    • Industrial ICP® vibration sensor,
    • Measurement range 50 g,
    • Sensitivity 100 mV/g,
    • Frequency range 0.2 … 15,000 Hz,
    • Frequency response calibration,
    • 2-pin female connector above
    •

      basic data
      sensitivity (±5%)100 mV/g10.2 mV/(m/s²)[5]

      measuring range±50 g±490 m / s²

      Frequency range (±5%)35 … 360,000 cpm0.58 … 6,000 Hz[2]

      frequency range (± 10%)25 … 600,000 cpm0,42 … 10,000 Hz

      frequency range (± 3 dB)12 … 900,000 cpm0.2 … 15,000 Hz

      resonance frequency1,800 kcpm30,000 Hz[1]

      wide band resolution50 µg490 µm / s ²[1]

      linearity≤1% [3]

      Transverse acceleration sensitivity≤5%
      conditions of use
      Overload limit (shock)5,000 g pk 49,050 m/s² pk

      temperature range-65 … 250 ° F-54 … 121 ° C

      SchutzartIP68
      technical characteristics
      settling time (on bias voltage ± 1%)≤5.0 s

      discharging charging time constant≥0.8 s

      power18 … 28 V DC

      constant power supply2 … 20 mA

      Output impedance< 100Ω

      Bias voltage8 … 12 V DC

      Spectral noise (10 Hz)4.0 µg / √Hz39.2 (µm / s ²) / √Hz[1]

      spectral noise (100 Hz)0.8 µg /. ? Hz7.85 (µm / s ²) / √Hz[1]

      spectral noise (1,000 Hz)0.4 µg / √Hz3.92 (µm / s ²) / √Hz[1]

      Electrical protectionRFI/ESD

      Electrical insulation>100 MΩ
      physical properties
      size - hex7/8 in22 mm

      Size - height2.06 in52.3 mm

      mass3.3 oz94 grams

      mounting thread1/4 "-28 threadedNo equivalent[4]

      Assembly torque2 … 5 ft-lb2.7 … 6.8 Nm

      sensor elementceramic

      geometry of the Sensor elementshear principle

      housing materialstainless steel

      sealinghermetically sealed welded

      Electrical connection2-pin connector (MIL-C-5015)

      connection positionabove
      notes
      [1]typically

      [2]the upper cut-off frequency tolerance: ±10%

      [3]zero-based balancing line, determined using the method of least squares

      [4]no equivalent in SI units

      [5]conversion factor 1 g = 9.81 m/s²

      [6]details: see PCBs Declaration of conformance PS023
      included Accessories
      081A40mounting bolts with 1/4 "-28 thread-1

      ICS-1frequency response for uniaxial sensors from 10 Hz up to the upper 5% frequency-1
      (M) metric mounting
      equipment

      M081A61metric mounting bolts with M6 thread-1
