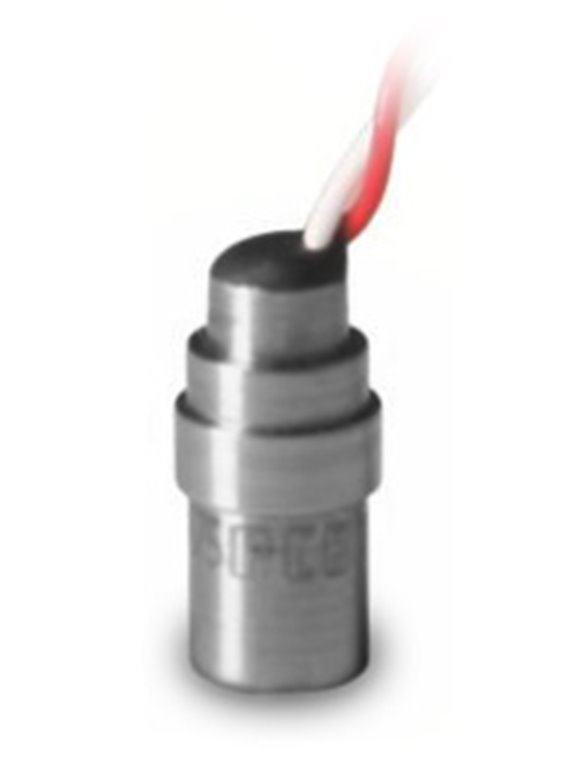

PCB-112M362
| basic data | |||
| measuring range (±5 V output range) | 50 psi | 345 kPa | |
| usable range (output range ±10 V) | 100 psi | 690 kPa | [2] |
| Sensitivity (±15%) | ? 100 M? / psi | 14.5 mV / kPa | |
| maximum pressure | 500 psi | 3,450 kPa | |
| release Sung | 0.001 psi | 0.007 kPa | |
| resonance frequency | ≥250,000 Hz | ||
| rise time | ≤ 2.0 µs | ||
| Lower limiting frequency (-5%) | 0.50 Hz | ||
| linearity | ≤1.0% FS | [1] | |
| conditions of use | |||
| Acceleration sensitivity | ≤ 0.002 psi/g | ≤ 0,0014 kPa/(m/s²) | |
| Temperature range (operation) | -100 … 275 ° F | -73 … 135 ° C | |
| Temperature coefficient of sensitivity | ≤ 0.06 %/°F | ≤ 0.108 %/°C | |
| Maximum shock (for fraction of a second) | 3,000 ° F | 1,650 ° C | |
| maximum shock resistance | 20,000 g pk | 196,000 m/s² pk | |
| Technical properties | |||
| discharge charge time constant (at room temperature) | ≥ 1.0 s | ||
| power | 22 … 30 V DC | ||
| Constant power supply | 2 … 20 mA | ||
| output impedance | <?200 ?Omega; | ||
| Bias voltage | 8 … 14 V DC | ||
| Physical properties | |||
| geometry of the sensor element | compression principle | ||
| sensor element | quartz | ||
| Housing material | 17-4 (Stainless steel) | ||
| membrane | INVAR | ||
| sealing | hermetically sealed welded | ||
| electrical connection | 10-32-coaxial socket | ||
| Mass | 0.17 oz | 4.9 grams | |
| cable terminating resistance | 10-32-coaxial socket | ||
| cable | 16 in | 41 cm | |
| notes | |||
| [1] | zero-based balancing line, determined using the method of least squares | ||
| [2] | for a Output range up to 10 V, the supply voltage must be at least 24 V DC. At low bias voltage of the sensor, no negative output range is usable up to-10 V. | ||
| Equipment | |||
| 070A04 | extension connector, 0.6 "long, 10-32 plug to 10-32 socket | -1 | |
| 070A05 | Cable coupler (10-32 socket on 10-32 socket) | -1 |
