List of products by brand PCB Piezotronics

PCB Piezotronics was founded in 1967 as a manufacturer of piezoelectric quartz sensors, accelerometers, and associated electronics for the measurement of dynamic pressure, force, and vibration. The unique expertise of the company was the incorporation of microelectronic signal conditioning circuitry within these sensors to make them easier to use and more environmentally compatible. These ICP® sensors gained wide popularity and became the foundation for the company's success.
Subsequent growth and steady investment in facilities, machinery, and equipment permitted a constant broadening of the product offering. Measurement capabilities expanded with the addition of piezoceramic, tourmaline, capacitive, piezoresistive, and strain gage sensing technologies. Ensuing products include industrial accelerometers, DC accelerometers, load cells, torque sensors, microphones, pressure transmitters, and calibration equipment.
-> PCB Piezotronics Website
Showing 445-456 of 1981 item(s)
Sort by:
Relevance Name, A to Z Name, Z to A
Showing 445-456 of 1981 item(s)

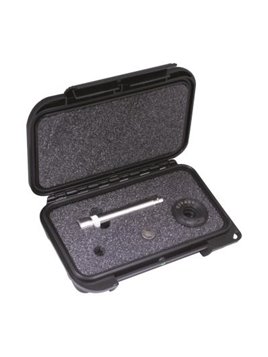

PCB-379A13
0

PCB-379A13

Rugged Microphone Kit, 378C20 Microphone & Preamplifier, 079A52 Rugged Grid Cap & 079A59 Calibration Adapter

  • Nominal Microphone Diameter: 1/2"
  • Frequency Response Characteristic: Random Incidence
  • Frequency Range: (±2dB)3.75 to 16000 Hz
  • Dynamic Range: 137 dB re 20 µPa
    PCB-3991B1120KG
    0

    PCB-3991B1120KG

    MEMS Shock Accelerometer, 20 Kg, thru hole mount, 096 integral cable

    • Sensitivity: (±50%)0.010 mV/g (0.001 mV/(m/s²))
    • Measurement Range: ±0 to 20000 g (±0 to 196100 m/s² pk)
    • Frequency Range: (1dB)0 to 10000 Hz
    • Sensing Geometry: Full Active
    • Mounting: Through Holes (2)
    • Weight: 0.045 oz (1.28 gm)
      PCB-3991B1160KG
      0

      PCB-3991B1160KG

      MEMS Shock Accelerometer, 60 Kg, thru hole mount, 096 integral cable

      • Sensitivity: (±50%)0.003 mV/g (0.0003 mV/(m/s²))
      • Measurement Range: ±0 to 60000 g (±0 to 588400 m/s² pk)
      • Frequency Range: (1dB)0 to 20000 Hz
      • Sensing Geometry: Full Active
      • Mounting: Through Holes (2)
      • Weight: 0.045 oz (1.28 gm)
        PCB-3991B1160KG/010LN
        1

        PCB-3991B1160KG/010LN

        ACCELEROMETER, 3991B1160KG/010LN

        • Sensitivity: (±50%)0.003 mV/g (0.0003 mV/(m/s²))
        • Measurement Range: ±0 to 60000 g (±0 to 588400 m/s² pk)
        • Frequency Range: (1dB)0 to 20000 Hz
        • Sensing Geometry: Full Active
        • Mounting: Through Holes (2)
        • Weight: 0.045 oz (1.28 gm)
          PCB-4104-02A
          0

          PCB-4104-02A

          PCB L&T Torque Sensor, Rotary Transformer, Shaft to Shaft, 1k in-lb Capacity FS, 15k RPM Max., MS Conn.

          • Measurement Range: 1000 in-lb (113 Nm)
          • Sensitivity: 2.5 mV/V (2.5 mV/V)
          • Non-Linearity: <=0.05 % FS
          • Mounting: 1.00 in Dia. Keyed Shaft (25.4 mm Dia. Keyed Shaft)
          • Maximum Speed: 15000 RPM
            PCB-4115K-04A
            0

            PCB-4115K-04A

            PCB L&T Torque Sensor, Rotary Transformer, 500 in-lb Capacity FS, Flanges and Splines per AND10262 & AND20002

            Speed sensor sold separately.
            • Measurement Range: 500 in-lb (55 Nm)
            • Sensitivity: (±15%)2.5 mV/V (2.5 mV/V)
            • Non-Linearity: <=0.05 % FS
            • Mounting: Flange w/ Splined Shaft
            • Maximum Speed: 15000 RPM
              PCB-4115K-08A
              0

              PCB-4115K-08A

              PCB L&T Torque Sensor, Rotary Transformer, 2000 in-lb Capacity FS, Flanges and Splines per AND10262 & AND20002

              Speed sensor sold separately.
              • Measurement Range: 2000 in-lb (225 Nm)
              • Sensitivity: (±15%)2.5 mV/V (2.5 mV/V)
              • Non-Linearity: <=0.05 % FS
              • Mounting: Flange w/ Splined Shaft
              • Maximum Speed: 15000 RPM
                PCB-4115K-11A
                0

                PCB-4115K-11A

                Torque Sensor, Rotary Transformer, 5000 in-lb Capacity FS, Flanges and Splines per AND10262 & AND20002

                • Measurement Range: 5000 in-lb (565 Nm)
                • Sensitivity: (±15%)2.5 mV/V (2.5 mV/V)
                • Non-Linearity: <=0.05 % FS
                • Mounting: Flange w/ Splined Shaft
                • Maximum Speed: 15000 RPM
                  PCB-422E65/A
                  0

                  PCB-422E65/A

                  In-line charge converter, 1 mV/pC, +/-5V output, -5% frequency 5 Hz, 10-32 jack conn., Rad Hard

                  • Sensitivity: (±2%)1 mV/pC
                  • Output Voltage: ±5 V
                  • Temperature Range: -65 to +250 °F (-54 to +121 °C)
                  • Housing Material: Stainless Steel
                    PCB-426A30
                    0

                    PCB-426A30

                    1/2-inch preamplifier with 7-pin LEMO conn. (for externally polarized microphones)

                    • Nominal Microphone Diameter: 1/2"
                    • Temperature Range: -40 to +185 °F (-40 to +85 °C)
                    • Output Voltage: 28 Vpp
                    • Size - Length: 5.2 in (132 mm)
                      PCB-426B31
                      0

                      PCB-426B31

                      1/4" preamplifier with 7-pin LEMO conn. (for externally polarized microphones)

                      • Nominal Microphone Diameter: 1/4"
                      • Temperature Range: -4 to 167 °F (-20 to 75 °C)
                      • Output Voltage: ±50 V
                      • Size - Length: 4 in (101.6 mm)
