List of products by brand PCB Piezotronics

PCB Piezotronics was founded in 1967 as a manufacturer of piezoelectric quartz sensors, accelerometers, and associated electronics for the measurement of dynamic pressure, force, and vibration. The unique expertise of the company was the incorporation of microelectronic signal conditioning circuitry within these sensors to make them easier to use and more environmentally compatible. These ICP® sensors gained wide popularity and became the foundation for the company's success.

Subsequent growth and steady investment in facilities, machinery, and equipment permitted a constant broadening of the product offering. Measurement capabilities expanded with the addition of piezoceramic, tourmaline, capacitive, piezoresistive, and strain gage sensing technologies. Ensuing products include industrial accelerometers, DC accelerometers, load cells, torque sensors, microphones, pressure transmitters, and calibration equipment.

-> PCB Piezotronics Website

Showing 433-444 of 1981 item(s)

Sort by:

Showing 433-444 of 1981 item(s)

PCB-376A33

Patented phantom powered 48V, 24V or 12V, 377A06 microphone and 426A14 preamplifier system

Nominal Microphone Diameter: 1/2"
Frequency Response Characteristic: Free-Field
Frequency Range: (±3dB)3.15 to 40000 Hz
Dynamic Range: 150 dB re 20 µPa

PCB-376C01

377C01 microphone with short 426A07 preamplifier, TEDS

Nominal Microphone Diameter: 1/4"
Frequency Response Characteristic: Free-Field
Frequency Range: (+2 / -3dB)4 to 100000 Hz
Dynamic Range: 165 dB re 20 µPa

PCB-376C10

377C10, 0.25 inch microphone with a 426A07 short preamplifier, and system calibration with TEDS

Nominal Microphone Diameter: 1/4"
Frequency Response Characteristic: Pressure
Frequency Range: (±2dB)5 to 70000 Hz (5 to 70000 Hz)
Dynamic Range: 173 dB re 20 µPa

PCB-377A06

1/2 in Free-Field, Prepolarized, 12.6 mV/Pa Microphone

Nominal Microphone Diameter: 1/2"
Frequency Response Characteristic: Free-Field
Frequency Range: (±3dB)3.15 to 40000 Hz
Inherent Noise: 20 dB(A)

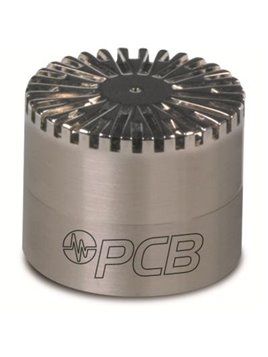

PCB-377A15

1 in prepolarized pressure microphone

Nominal Microphone Diameter: 1"
Frequency Response Characteristic: Pressure
Frequency Range: (+/-2dB)5 to 8000 Hz
Inherent Noise: 10 dB(A) re 20 µPa
Dynamic Range: >150 dB re 20 µPa

PCB-377A21

1/2" prepoplarized random incidence condenser microphone, low sensitivity, high frequency

Nominal Microphone Diameter: 1/2"
Frequency Response Characteristic: Random Incidence
Frequency Range: (±2dB)4 to 25000 Hz
Dynamic Range: 162 dB re 20 µPa

PCB-377C13

1/2" pressure, prepolarized condenser microphone, 12.6 mV/Pa (+/-2 dB), 3.2 Hz to 20 kHz (+/-2 dB), 4Hz to 12.5 kHz (+/-1 dB)

Nominal Microphone Diameter: 1/2"
Frequency Response Characteristic: Pressure
Frequency Range: (±2dB)3.15 to 20000 Hz
Dynamic Range: 162 dB re 20 µPa

PCB-377C20/426A14

377C20 microphone paired with a 426A14 preamplifier

Nominal Microphone Diameter: 1/2"
Frequency Response Characteristic: Random Incidence
Frequency Range: (±2dB)3.15 to 16000 Hz
Inherent Noise: 14 dB(A) re 20 µPa
Dynamic Range: 146 dB re 20 µPa

PCB-377C41

1/2" condenser microphone, free-field, 200 V Polarization

Nominal Microphone Diameter: 1/2"
Frequency Response Characteristic: Free-Field
Frequency Range: (±2dB)3.15 to 20000 Hz
Dynamic Range: >146 dB re 20 µPa

PCB-378C13

TEDS 377C13 pressure microphone and 426E01 preamplifier, 12.6 mV/Pa (+/-2 dB), 3.2 Hz to 20 kHz (+/-2 dB), 4Hz to 12.5 kHz (+/-1 dB)

Nominal Microphone Diameter: 1/2"
Frequency Response Characteristic: Pressure
Frequency Range: (±2dB)3.15 to 20000 Hz
Dynamic Range: 150 dB re 20 µPa

PCB-379A02

Grid Array microphone stand & holders

6 ft (3m) x 6 ft (3m) array stand. Holders included to support 130 Series array microphones or 378 condenser microphones . Spacing can be adjusted in both axis as needed.

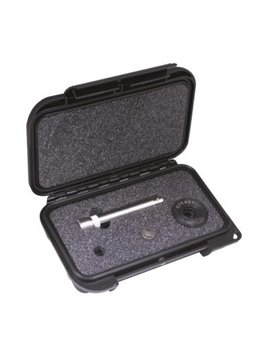

PCB-379A12

Rugged Microphone Kit, 378B02 Microphone & Preamplifier, 079A52 Rugged Grid Cap & 079A59 Calibration Adaptor

Nominal Microphone Diameter: 1/2"
Frequency Response Characteristic: Free-Field
Frequency Range: (±2dB)3.75 to 20000 Hz
Inherent Noise: 15.5 dB(A) re 20 µPa
Dynamic Range: 137 dB re 20 µPa
