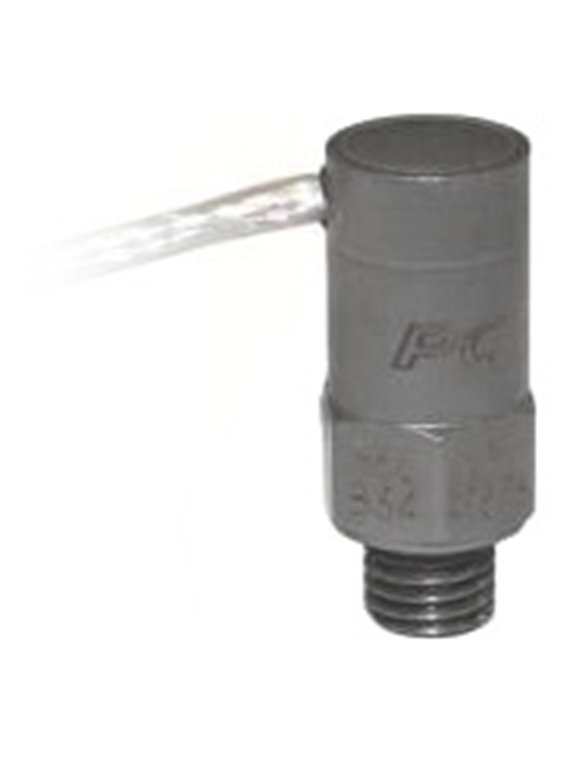

PCB-350B11
zoom_out_map

PCB-350B11

  • ICP® shock acceleration sensor,
  • Masseisoliert,
  • Measuring range 100,000 g,
  • Sensitivity 0.05 mV / g,
  • Frequency range 1 … 10,000 Hz,
  • Integrated cable, length 3 m,
    ending on 10-32 plug
  • basic data
    sensitivity (±30%) 0.05 mV / g 0.005 mV/(m/s²)

    range ±100. 000 g PK ±980. 000 m/s² pk

    Frequency range (± 1 dB) 1 … 10,000 Hz

    frequency range (± 3 dB) 0,5 … 35,000 Hz

    Resonance frequency ≥ 200.000 Hz

    wide band resolution 0.3 g RMS 2,9 m/s² RMS [1]

    Linearity error (per 10,000 g / 98.100 m/s²) ±0. 5%   [2]

    transverse acceleration sensitivity ≤ 7%
    Conditions of use
    Overload limit (shock) ±200. 000 g pk ±1. 960.000 m/s² pk

    Temperature range (operation) -65 …200 °F -54 … 93 ° C

    Strain sensitivity (footprint) 0.2 g/µε 2.0 (m/s²)/µε [1]
    technical characteristics
    Supply voltage 18 … 30 V DC

    constant power supply 2 … 20 mA

    Output impedance ≤100 Ω

    Bias voltage 8 … 12 V DC

    discharging charging time constant 0.5 … 0,7 s   [1]

    Settling time < br(auf Bias-Spannung ±10 %) <5 s

    electrical insulation (housing) >100 MΩ
    Physical properties
    Sensor element ceramic

    Geometry of the sensor element shear principle

    housing material titanium

    sealing Hermetically sealed

    size-Hexagonal 0.375 in 9.5 mm

    size - height 0.80 in 20.3 mm

    dimensions (without cable) 0.19 oz 4.8 grams [1]

    Electrical connection integrated cable

    cable length 10 ft 3 m

    cable type type 032,. screened two-core cable with twisted wire

    mounting thread 1/4 "-28 thread
    notes
    [1] " Typically

    [2] maximum sensitivity drift

    [3] details: see PCBs Declaration of conformance PS023
    Accessories
    ACS-14 Hopkinson bar calibration for shock resistance -1

    ACS-22 frequency response, rückf ührbar on NIST (100 Hz to ±1dB point) -1
    (M) metric mounting
    mounting thread M6 x 0.75 male
