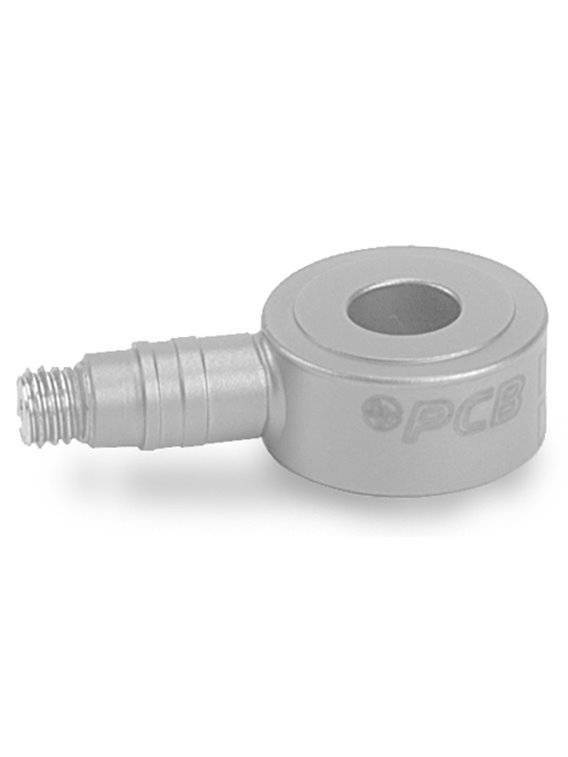

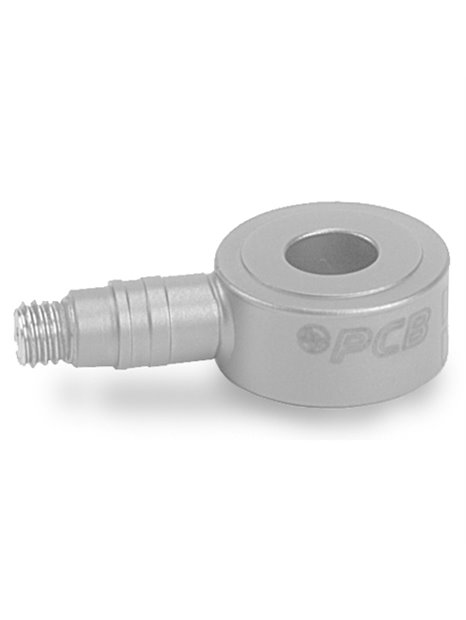

PCB-201B05
| basic data | |||
| sensitivity (±15%) | 1 mV / lb | 224.8 mV / kN | |
| measuring range (pressure) | 5,000 lb | 22.24 kN | |
| Maximum permissible static load (force) | 8,000 lb | 35,59 kN | |
| wide band resolution | 0.10 lb RMS | 0,4448 N RMS | [1] |
| Lower limiting frequency (-5%) | 0.0003 Hz | [3] | |
| upper cut-off frequency | 90,000 Hz | [4] | |
| linearity error | ≤ 1% FS | [2] | |
| conditions | |||
| temperature range | -65 … 250 ° F | -54 … 121 ° C | |
| temperature coefficient Temperature coefficient of sensitivity | ≤ 0.03 %/°F | ≤ 0,054 %/°C | |
| technical properties | |||
| discharge charge time constant (at room temperature) | ≥ 2,000 s | ||
| Supply | 20 … 30 V DC | ||
| constant power supply | 2 … 20 mA | ||
| Output impedance | ≤100 Ω | ||
| Bias voltage | 8 … 14 V DC | ||
| (Pressure) output polarity | positive | ||
| physical properties | |||
| 1,000 lb | 4,448 kN | preload | |
| Stiffness | 12 lb/µin | 2.1 kN/µm | [1] |
| size - diameter | 0,650 in | 16.5 mm | |
| size ße - height | 0,310 in | 7.9 mm | |
| size - inner diameter (hole diameter) | 0,251 in | 6.38 mm | |
| size -. Diameter of the measuring surface | 0.50 in | 12.7 mm | |
| weight | 0.35 oz | 10 grams | |
| housing material | stainless steel | ||
| Sealing | hermetically sealed | ||
| electrical connection | 10-32-coaxial socket | ||
| Anschlussposition | side | ||
| notes | |||
| [1] | typically | ||
| [2] | zero-based balancing line, determined with the method of least squares | ||
| [3] | calculated on the basis of discharging charging time constant | ||
| [4] | assume that value determined on the basis of Festkö body dynamics calculations | ||
| [5] | details: see PCBs Declaration of conformance PS023 | ||
| equipment | |||
| 080A82 | Grease | -1 | |
| 081A11 | mounting bolts, 10-32 x 0,730 ", BeCu | -1 | |
| 082 B 01 | washer | -1 | |
| 083 B 01 | Mounting sleeve | -1 | |
| M081A11 | mounting bolt, M5 x 0.8 x 0,730 ", BeCu | -1 | |
| M083B01 | mounting sleeve | -1 | |
| (S) negative output polarity | |||
| (W) waterproof cable | |||
| wiring | sealed cable connection | ||
| Cable outlet | On the side |
