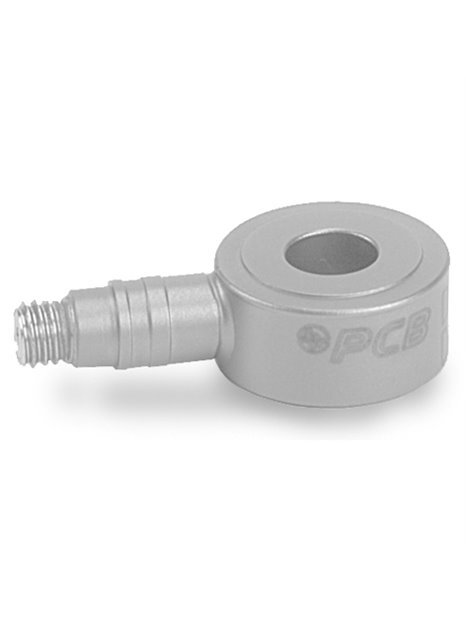

PCB-201B03
zoom_out_map

PCB-201B03

  • ICP® power measurement washer,
  • Measuring range 2.224 N,
  • Sensitivity 2,2 mV / N,
  • Frequency range 0.002 … 90,000 Hz,
  • 10-32 female connector on the side
  •

    basic data
    sensitivity (±15%) 10 mV / lb 2.248 mV / kN

    measuring range (pressure) 500 lb 2,224 kN

    Maximum permissible static load (force) 3,000 lb 13,34 kN

    wide band resolution 0.01 lb RMS 0,04448 N RMS [3]

    Lower limiting frequency (-5%) 0.002 Hz   [2]

    upper cut-off frequency 90,000 Hz   [4]

    linearity error ≤ 1% FS   [1]
    conditions
    temperature range -65 … 250 ° F -54 … 121 ° C

    temperature coefficient Temperature coefficient of sensitivity ≤ 0.03 %/°F ≤ 0,054 %/°C
    technical properties
    discharge charge time constant (at room temperature) ≥400 s

    Supply 20 … 30 V DC

    constant power supply On the side
    Notes
    [1] zero-based balancing line, determined using the method of least squares

    [2] on the basis of the Calculated discharge charge time constant

    [3] typically

    [4] assume that value determined on the basis of Festkö body dynamics calculations

    [5] details: see PCBs Declaration of conformance PS023
    equipment
    080A82 Grease -1

    081A11 mounting bolts, 10-32 x 0,730 ", BeCu -1

    082 B 01 washer -1

    083 B 01 Mounting sleeve -1

    M081A11 mounting bolt, M5 x 0.8 x 0,730 ", BeCu -1

    M083B01 mounting sleeve -1
    (S) negative output polarity

    (W) waterproof cable
    wiring sealed cable connection

    Cable outlet On the side
