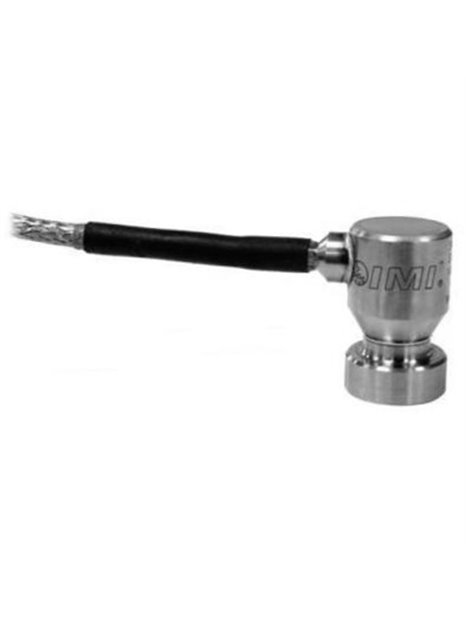

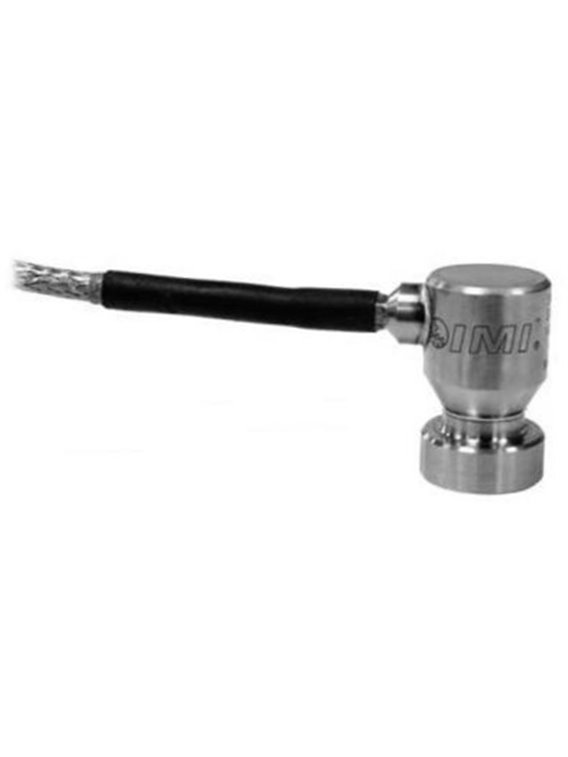

  • Industrial ICP® vibration sensor,
  • Integrated mounting magnet,
  • Settling time ≤ 2 s,
  • Measurement range 50 g,
  • Sensitivity 100 mV/g,
  • Frequency range 0.5 … 13,000 Hz,
  • Frequency response calibration,
  • Integrated armored cable, length 3 m,
    ending to BNC,
  • other cable configurations on request
  • ,
    basic data
    sensitivity (±5%) 100 mV/g 10.2 mV/(m/s²) [1]
    measuring range 50 Ω 490 m/s²
    Frequency range (±5%) 72 … 240,000 cpm 1.2 … 4,000 Hz
    frequency range (± 3 dB) 30 … 780,000 cpm 0.5 … 13,000 Hz
    Resonance frequency 1,620 kcpm 27,000 Hz [2]
    wide band resolution (1 … 10,000 Hz) 350 µg 3.434 µm / s ² [2]
    Linearity ≤1% [3]
    transverse acceleration sensitivity ≤ 7%
    conditions of use
    Overload limit (shock) 49,050 m/s² pk pk 5,000 g
    temperature range -65 … 250 ° F -54 … 121 ° C
    Protection class IP67
    technical characteristics
    settling time < br(auf Bias-Spannung ≤1 %) ≤ 2 s
    Discharge charge time constant ≥ 0.3s
    power 18 … 28 V DC
    constant power supply 2 … 20 mA
    output impedance < 150 Ω
    Bias voltage 8 … 12V DC
    Spectral noise (10 Hz) 8 µg / √ Hz 78.5 (µm / s ²) / √ Hz [2]
    spectral noise (100 Hz) 5 µg / √ Hz 49,1 (µm / s ²) / √ Hz [2]
    spectral noise (1,000 Hz) 4 µg / √ Hz 39.2 (µm / s ²) / √ Hz [2]
    Electrical insulation ≥ 100 MΩ
    physical properties
    size - diameter 5/8 in 15.9 mm
    Size - height 1.0 in 25.4 mm
    Mass 1.18 oz 33.5 grams
    sensor element ceramic
    geometrythe sensor element shear principle
    housing material stainless steel
    sealing hermetically sealed welded
    Electrical connection potted integrated cable
    cable exit side
    Cable length 10 ft 3 m
    Cable terminationBNC Plug
    cable type polyurethane [4]
    notes
    [1] Conversion factor 1 g = 9.81 m/s²
    [2] typically
    [3] zero-based balancing line, determined with the method of least squares
    [4] two-core cable with stainless steel reinforcement
    Accessories
    ICS-1 frequency response for Uni-axial sensors from 600 cpm (10 Hz) up to the upper 5% frequency -1
