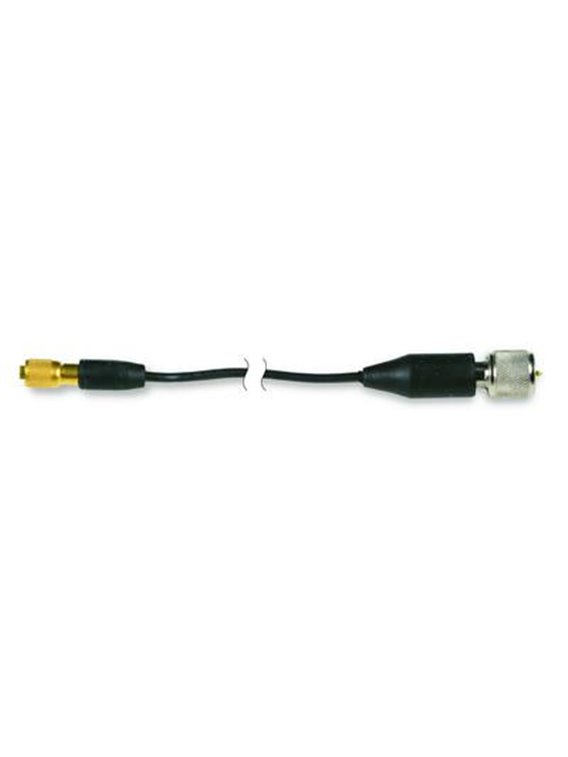

      PCB-018G03

    • Thin coaxial cable,
    • Length 90 cm,
    • 5-44 plug on 10-32 plug
    • connector/cable end 1
      connector type5-44-KoaxialStecker
      Connector (signal)female
      Connection methodcoupling
      connection threads5-44 cap ring
      temperature range- 320 … 500 ° F-196 … 260 ° C
      housing materialbrass
      size - od0.16 in4.1 mm
      size - length0.66 in17 mm
      mass0.02 oz0.72 grams
      Connector/cable end 2
      connector type10-32 coaxial plug
      Connector (signal)male
      Connection methodcoupling
      Threadcap 10-32 ring
      strain reliefmoulded spout
      Temperature range-320 … 500 ° F-196 … 260 ° C
      Size - od0.25 in6.4 mm
      size - length0.94 in24 mm
      Mass0.1 oz2 grams
      cable
      cable length3 ft90 cm
      cable typeThin coaxial cable
      Temperature range-22… 221 ° F-30 … 105 ° C
      train load capacity25 lb110 N[1]
      capacity (head to head at 21 ° C)55 pF / ftpF/m for 180
      diameter of the sheath0,054 in1.37 mm[1]
      Jacket materialPVC
      Jacket colourBlack
      wire versionsolid
      conductor materialTinned copper
      Head diameter (28 AWG)0.013 in0.33 mm[1]
      Conductor insulationPolypropylene
      ShieldingBraided (at least 90% covered)
      Shielding materialCopper
      Minimum bending radius0.5 in14.0 mm
      Mass0.16 oz/ft14.88 gm/m[1]
      Notes
      [1]Typically
