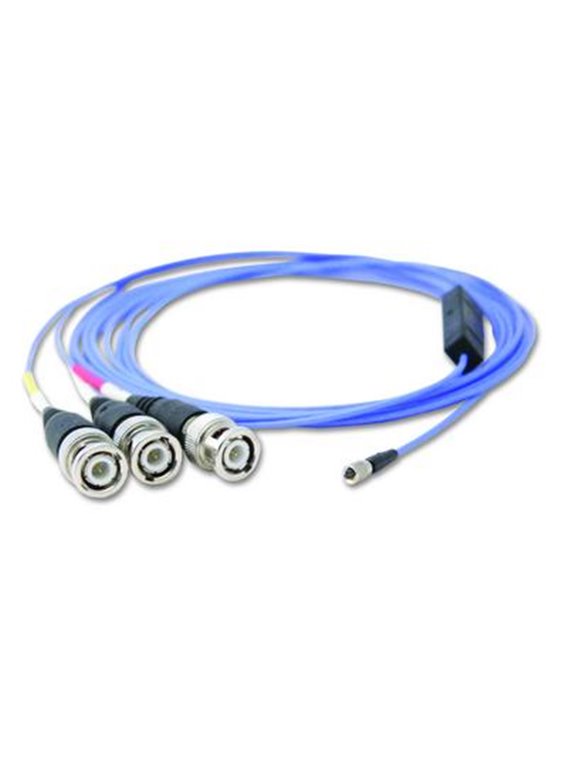

PCB-034K05
    zoom_out_map

      PCB-034K05

      • Four-wire Teflon shielded,
      • Length 1.5 m,
      • 4-pin mini connector to three BNC
      Connector / cable end 1
      connector typeMini 4-pin connector
      terminalsFemale
      connection methodscrew
      Strain reliefcast spout
      temperature range-65 ... 356 ° F-54 ... 180 ° C
      housing materialBrass
      Size - outer diameter0.20 in5 mm
      Size - Length0.69 in18 mm
      Dimensions0.030.80 grams
      Connector / cable end 2
      cable terminationTriple Splitting the three coaxial cables
      connector typeThree BNC connector
      Terminal (signal)Male
      connection methodbayonet
      Strain reliefcast spout
      temperature range-67 ... 230 ° F-55 ... 110 ° C
      captionsX-axis, Y-axis, Z-axis
      Size - Length1230.5 cm
      Electric wire
      cable length5 ft1.5 m
      cable typeShielded four-wire cable
      core Typenot twisted
      temperature range-130 ... 392 ° F-90 ... 200 ° C
      maximum traction20 lb90 N[1]
      Capacity (conductor to conductor at 21 ° C)14 pF / ft46 pF / m
      Capacity (conductor on screen at 21 ° C)25 pF / ft82 pF / m
      Maximum voltage (rms)160 V
      Noise level (peak to peak)<30 mV
      Diameter of the cable sheath0.077 in1.96mm[1]
      Material of the cable sheathFEP
      Color of cable sheathblue
      wire versionSolid
      conductorsSilver coated copper
      Conductor diameter (34 AWG)0.0060.15mm[1]
      conductor insulationvirgin PTFE
      shieldingBraided (min. 90% covered)
      screen materialSilver coated wire
      Screen diameter (each fiber 40 AWG)0.063 in1.60mm[1]
      Noise barrier materialGraphite impregnated PTFE tape
      Bending radius (minimum)1 in25.4 mm
      Dimensions0.09 oz / ft8.31 grams / m[1]
      Hints
      [1]typically,
