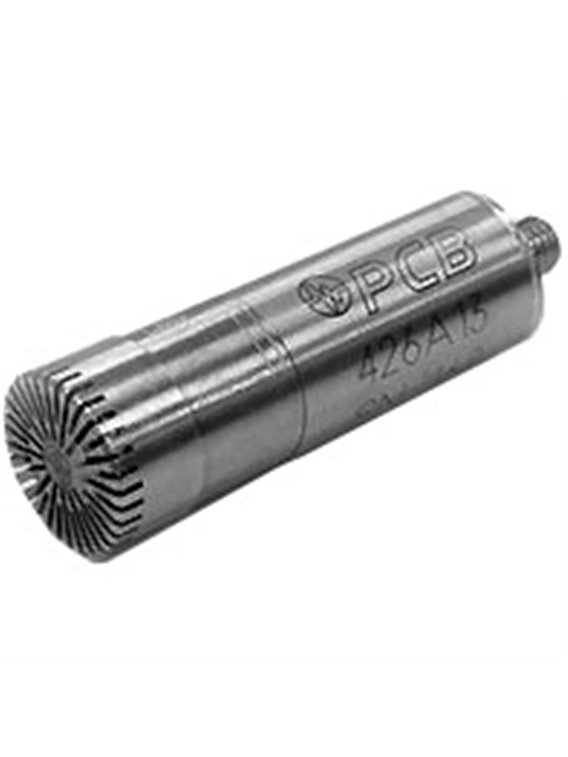

PCB-376B02

  • Short 1/2 "-ICP® precision microphone for free-field applications,
  • Combination of microphone capsule PCB-377 B 02 / preamp PCB-426A13,
  • Sensitivity 50 mV / PA,
  • Dynamic range > 135 dB,
  • Frequency range 3.75 … 20,000 Hz,
  • 10-32 socket
  • As system calibrated
  • basic data
    Nominal microphone diameter 1/2 "

    application free field

    Sensitivity 50 mV / PA   [2]

    sensitivity (±1. 5 dB) -26 dB in relation to 1 V / PA   [2]

    Frequency range (± 1 dB) 7 … 10,000 Hz

    (±2 dB) frequency range 3.75 … 20,000 Hz

    bottom Cutoff frequency (3 dB) 1.0 … 3.0 Hz

    noise < 18.5 dB in relation to 20 µPa

    noise < 16.5 dB(A) in relation to 20 µPa

    range > 135 dB in relation to 20 µPa

    TEDS Chip integrated by default   [1]
    conditions
    temperature range (operation) -40 … 158 °F -40 … 70 °C

    Temperature coefficient of sensitivity 0.005dB / ° F 0.009 dB / ° C [2] [3]

    influence of static pressure -0.013 dB/kPa   [2] [3]

    humidity coefficient of sensitivity ±0, 001 dB/% RH   [2]

    influence by axial vibration 63 dB in relation to 20 µPa   [3]
    technical characteristics
    Polarization voltage 0 V   [4]

    supply 20 … 32 V DC

    Constant power supply 2 … 20 mA

    Bias voltage 10 … 14 V DC

    Maximum output range ±8 V pk

    Output impedance < 50Ω
    physical properties
    housing material stainless steel alloy

    Pressure back   [5]

    electrical connection 10-32 socket

    Mounting thread (preamplifier) 0,5 - 60 UNS

    size - diameter (with cap) 0.52 in 13.2 mm

    Size - diameter 0.50 in 12.7 mm

    size - height (with cap) 1.85 in 47.0 mm

    Size - height (without protection cap) 1.81 in 46.0 mm

    Mass 0.41 oz 11.6 grams [3]
    instructions
    [1] TEDS memory in accordance with IEEE PP1451. 4

    [2] Related to 250 Hz

    [3] typically

    [4] Prepolarized

    [5 ] Pressurised by the pre

    [6] details: see PCBs Declaration of conformance PS076
    Accessories
    ACS-42 calibration of a microphone with pre-amplifier -1
    (TLD) TEDS memory in accordance with IEEE P1451. 4
    Accessories

    ACS-63 calibration of a microphone with Vorverstä stronger -1
