List of products by brand PCB Piezotronics

PCB Piezotronics was founded in 1967 as a manufacturer of piezoelectric quartz sensors, accelerometers, and associated electronics for the measurement of dynamic pressure, force, and vibration. The unique expertise of the company was the incorporation of microelectronic signal conditioning circuitry within these sensors to make them easier to use and more environmentally compatible. These ICP® sensors gained wide popularity and became the foundation for the company's success.
Subsequent growth and steady investment in facilities, machinery, and equipment permitted a constant broadening of the product offering. Measurement capabilities expanded with the addition of piezoceramic, tourmaline, capacitive, piezoresistive, and strain gage sensing technologies. Ensuing products include industrial accelerometers, DC accelerometers, load cells, torque sensors, microphones, pressure transmitters, and calibration equipment.
Showing 1093-1104 of 1981 item(s)
Showing 1093-1104 of 1981 item(s)

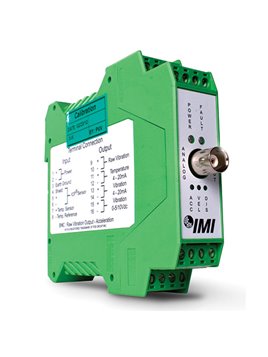

PCB-682C03

  • Transmitter for mounting on a DIN rail,
  • Connection of an industrial ICP® vibration sensor,
  • Integrated sensor power supply

    PCB-VO(M)622A01

  • Industrial ICP® vibration sensor,
  • With vibration velocity output
  • Measuring range 1.27 m/s,
  • Sensitivity 3.9 V/(m/s),
  • Frequency range 3 … 9,000 Hz,
  • Frequency response calibration,
  • 2-pin female connector above
    • PCB-VO(M)622A11

    • Industrial ICP® vibration sensor,
    • With vibration velocity output
    • Measuring range 1.27 m/s,
    • Sensitivity 3.9 V/(m/s),
    • Frequency range 3 … 9,000 Hz,
    • Frequency response calibration,
    • Integrated cable, length 3 m,
      ending on cut end
      • PCB-VO(M)625B01

      • Industrial ICP® vibration sensor,
      • With vibration velocity output
      • With through hole,
      • Measuring range 1.27 m/s,
      • Sensitivity 3.9 mV/(mm/s),
      • Frequency range 1.5 … 6,000 Hz,
      • Frequency response calibration,
      • 2-pin female connector on the side

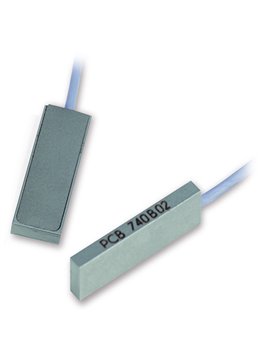

        • PCB-740B02

        • ICP® strain sensor,
        • Measuring range 100 µ ε
        • Sensitivity 50mv / µ ε
        • Frequency range 0.5 … 100,000 Hz,
        • Integrated cable, length 3 m,
          ending on 10-32 plug
          • PCB-RH(M)240A01

          • ICP® strain sensor,
          • Measurement range 50 µ ε
          • Sensitivity 100 mV / µε
          • Lower limiting frequency 0.015 Hz,
          • 10-32 female connector on the side
            • PCB-RH(M)240A02

            • ICP® strain sensor,
            • Measuring range 100 µ ε
            • Sensitivity 50mv / µ ε
            • Lower limiting frequency 0.004 Hz,
            • 10-32 female connector on the side
              • PCB-RH(M)240A03

              • ICP® strain sensor,
              • Measuring range 300 µ ε
              • Sensitivity 10 mV / µ ε
              • Lower limiting frequency 0.004 Hz,
              • 10-32 female connector on the side
