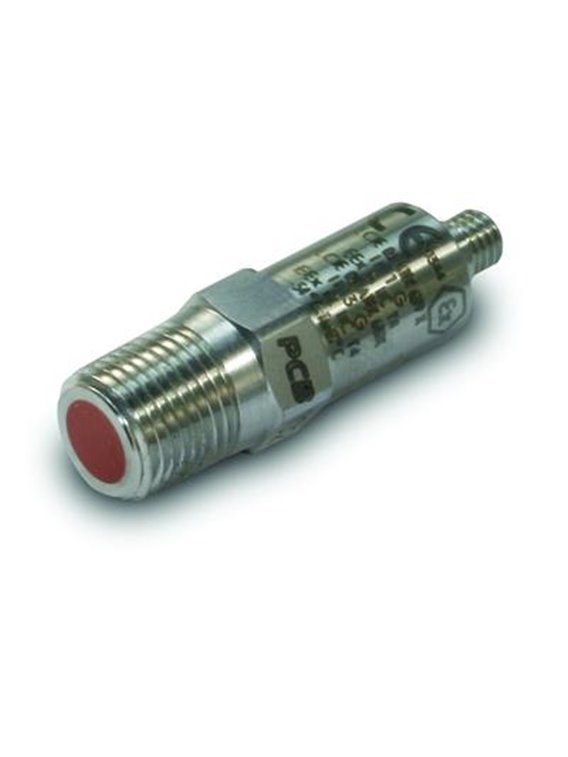

PCB-102M206

  • ICP® pressure sensor with stainless steel membrane,
  • With ATEX / CSA approval,
  • Masseisoliert,
  • Beschleunigungskompensiert,
  • Measuring range 344,8 kPa,
  • Sensitivity 14.5 mV / kPa,
  • Lower limiting frequency 0.5 Hz,
  • 10-32 female connector
  • basic data
    measuring range (±5 V output range) 50 psi 344.8 kPa
    sensitivity (±15%) ≥ 100 MΩ / psi 14,503 mV / kPa
    Maximum pressure 4 kpsi 27.580 kPa [9]
    resolution 0.001 psi kPa 0,0069 [10]
    Resonance frequency ≥ 250,000 Hz
    rise time (reflected pressure) ≤ 2 µs
    lower limiting frequency (-5%) 0.5 Hz
    Linearity ≤ 1.0% FS [8]
    conditions
    acceleration sensitivity ≤ 0.002 psi/g ≤ 0,0014 kPa/(m/s²)
    temperature range (operation) -65 … 250 ° F -54 … 121 ° C
    Temperature coefficient of sensitivity ≤ 0.10 %/°F ≤ 0.18 %/°C
    maximum shock (for fraction of a second) 3,000 ° F 1.649 ° C
    maximum Shock resistance 20,000g pk 196.133 m/s 2 pk
    approval for use in potentially explosive atmospheres ATEX [1] [2] [3]
    approval for use in potentially explosive atmospheres (C-US) CSA NRTL - Canadian Standards Association [4] [5] [6] [7]
    Technical characteristics
    output polarity (positive pressure) positive
    discharging charging time constant (at room temperature) ≥ 1.0 s
    Supply 20 … 28 V DC
    constant power supply 2 … 20 mA
    Output impedance < 100 Ω
    Bias voltage 8 … 14 V DC
    Electrical insulation ≥ 100 MΩ
    physical properties
    geometry of the sensor element compression principle
    Sensor elementQuartz
    Housing material stainless steel
    diaphragm 316 L (stainless steel) [11]
    sealing Hermetically sealed welded
    electrical connection 10-32-coaxial socket
    weight 0.6 oz 17.0 grams
    Notes
    [1] ex ia IIC T4
    [2] ex nL IIC T4
    [3] ex nA IIC T4
    [4] AEx ia IIC T4, DIV1 CL1 GR A-D
    [5] ex ia IIC T4, DIV1 CL1 GR A-D
    [6] AEx nA IIC T4,. DIV2 CL1 GR A-D
    [7] ex nL IIC T4, DIV2 CL1 GR A-D
    [8] zero-based balancing line, determined using the method of least squares
    [9] due to the high sensitivity of the static pressure should be very slowly loaded and be reduced.
    [10]Typically
    [11]Membrane with ablativer coating
    [12]Details: see PCB Declaration of conformance PS059
