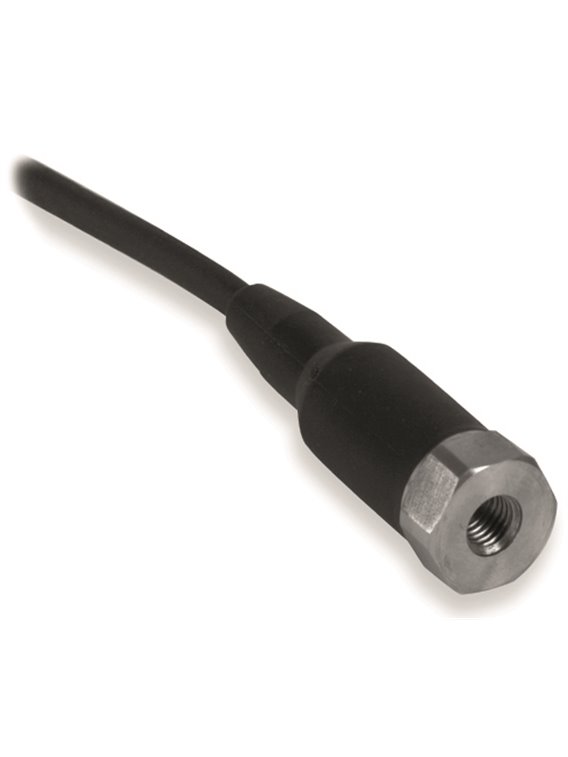

PCB-(M)608A10

  • Industrial ICP® vibration sensor,
  • Measuring range 500 g
  • Sensitivity 10 mV / g,
  • Frequency range 0.5 … 10,000 Hz,
  • One-point calibration at 100 Hz,
  • Integrated cable, length 3 m,
    ending on cut end
  • "
    basic data
    sensitivity (±15%) 10 mV / g 1.02 mV/(m/s²) [5]
    measuring range ≤500 Ω ±4. 905 m/s 2
    Frequency range (± 3 dB) 30 … 600,000 cpm 0.5 … 10,000 Hz
    resonance frequency 1,320 kcpm 22,000 Hz [1]
    Wide band resolution 2,000 µg 19.620 µm / s ² [1]
    linearity ≤1% [2]
    Lateral acceleration sensitivity ≤ 7%
    Conditions of use
    Overload limit (shock) 5,000 g pk 49,050 m/s² pk
    Temperature range -65 … 250 ° F -54 … 121 ° C
    protection class IP68
    technical characteristics
    Settling time (on bias voltage ± 1%) ≤ 3.0 s
    discharging charging time constant ≥ 0.4 s
    Power 18 … 28 V DC
    constant power supply 2 … 20 mA
    Output impedance < 150 Ω
    Bias voltage 8 … 12 V DC
    Spectral noise (10 Hz) 85 µg / √ Hz 834 (µm / s ²) / √ Hz [1]
    spectral noise (100 Hz) 20 µg / √ Hz 196 (µm / s ²) / √ Hz [1]
    Spectral noise (1,000 Hz) 5 µg / √ Hz 49,1 (µm / s ²) / √ Hz [1]
    electrical insulation (housing) ≥ 100 MΩ
    Physical properties
    size - Allen 9/16 in 14 mm
    size - height 2.5 in 64 mm
    Weight (with cord) 3.5 oz 99.3 grams
    fixing mounting bolt
    Mounting thread 1/4 "-28 threaded [3]
    Assembly torque 2 … 5 ft-lb 2.7 … 6.8 Nm
    sensor element ceramic
    Geometry of the sensor element shear principle
    Housing material stainless steel
    sealing shed
    wiring Potted integrated cable
    cable outlet top
    cable length 10 ft 3 m
    Cable type Polyurethane [4]
    notes
    [1] typically
    [2] zero-based balancing line, determined using the method of least squares
    [3] no equivalent in SI units
    [4] Screened two-wire cable with twisted wire
    [5] conversion factor 1 g = 9.81 m/s²
    [6] details: see PCBs Declaration of conformance PS023 and PS060
    Equipment
    081A40 mounting bolts with 1/4 "-28 thread -1
    ICS-2 single point calibration at 100 Hz (Rü" ckführbar on NIST) -1
    (M) metric mounting
    equipment
    M081A61 metric mounting bolts with M6-thread -1
