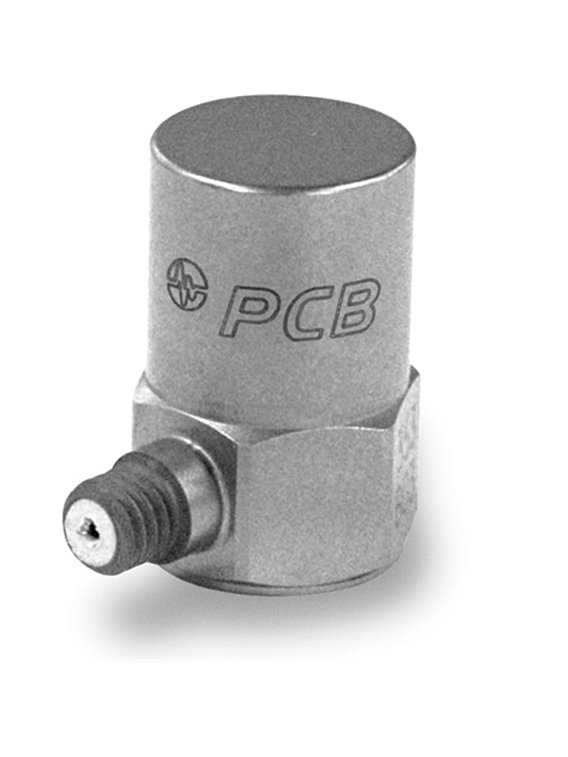

PCB-353B01
| basic data | |||
| sensitivity (±5%) | 20 mV / g | 2.04 mV/(m/s²) | [2] |
| range | ±250 g PK | ±2. 453 m/s² pk | |
| frequency range (±5%) | 1 … 7,000 Hz | ||
| Frequency range (± 10%) | 0.7 … 10,000 Hz | ||
| frequency range (± 3 dB) | 0.35 … 18,000 Hz | ||
| Resonance frequency | &ge≥38,000 Hz | ||
| wide band resolution | 0.003 g RMS | 0.03 m/s² RMS | [1] |
| Linearity | ≤ 1% | [3] | |
| transverse acceleration sensitivity | ≤ 5% | [4] | |
| conditions of use | |||
| (Shock) overload limit | ± 10.000 g pk | ±98.100 m/s² pk | |
| Temperature range (operation) | -65 … 250 ° F | -54 … 121 ° C | |
| Strain sensitivity (base area) | ≤ 0.0005 g/µε | ≤ 0.005 (m/s²)/µε | [1] |
| technical characteristics | |||
| Supply voltage | 18 … 30 V DC | ||
| constant power supply | 2 … 20 mA | ||
| Output impedance | ≤ 100 Ω | ||
| Bias voltage | 8 … 12 V DC | ||
| discharging charging time constant | 0.5 … 2.6 s | ||
| Settling time < br(auf Bias-Spannung ±10 %) | <5 s | ||
| spectral noise (1 Hz) | 1,600 µg / √ Hz | 15,700 (µm / s ²) / √ Hz | [1] |
| spectral noise (10 Hz) | 350 µg / √ Hz | 3.433 (µm / s ²) / √ Hz | [1] |
| spectral noise (100 Hz) | 90 µg /. √ Hz | 883 (µm / s ²) / √ Hz | [1] |
| Spectral noise (1,000 Hz) | 32 µg / √ Hz | 314 (µm / s ²) / √ Hz | [1] |
| Physical properties | |||
| Size - height | 0.81 in | 20.6 mm | |
| Size - hex | 0.5 in | 12.7 mm | |
| weight | 0.35 oz | 10 grams | [1] |
| sensor element | quartz | ||
| Geometry of the sensor element | shear principle | ||
| housing material | titanium | ||
| Sealing | Hermetically sealed welded | ||
| Electrical connection | 10-32-coaxial socket | ||
| connection position | side | ||
| Mounting thread | 10-32 female thread | ||
| notes | |||
| [1] | typically | ||
| [2] | sensitivity tolerance for sensors with B or Q option: ±10% | ||
| [3] | zero-based balancing line, determined using the method of least squares | ||
| [4] | transverse acceleration sensitivity typically ≤ 3% | ||
| [5] | details: see PCBs Declaration of conformance PS023 | ||
| Accessories | |||
| 080A | adhesive mounting | -1 | |
| 080A109 | mounting wax | -1 | |
| 081 B 05 | mounting bolts (10-32 on 10-32) | -1 | |
| ACS-1 | frequency response, traceable to NIST (10 Hz up to the upper 5% point) | -1 | |
| M081B05 | Mounting bolts 10-32 to M6 x 0.75 | -1 | |
| (Q) increased discharge charge time constant | |||
| frequency range (±5%) | 0.1 … 7,000 Hz | ||
| frequency range (± 10%) | 0.07 … 10,000 Hz | ||
| discharging charging time constant | > 10 s | ||
| settling time | <5 s | ||
| Included accessories & ouml; r | |||
| ACS-4 | low frequency calibration (phase and amplitude) of 0.5 … 10 Hz | -1 | |
| (J) mass insulation | |||
| frequency range (±5%) | 1 … 5,000 Hz | ||
| Frequency range (± 10%) | 0.7 … 8,000 Hz | ||
| resonance frequency | 22,000 Hz | ||
| Electrical insulation | ≥100 MΩ | ||
| Size - hex | 0.50 in | 12.7 mm | |
| size - height | 0.86 at | 21.8 mm | |
| (W) waterproof Cable | |||
| connection position | side | ||
| (T) TEDS memory in accordance with IEEE PP1451. 4 | |||
| supply | 22 … 30 V DC | ||
| Bias voltage | 8.5 … 14,5 V DC | ||
| size - height | 0.82 in | 20.8 mm | |
| sensitivity (±10%) | 20 mV / g | 2.04 mV/V/(m/s²) | |
| (TLA) TEDS LMS International - free format | |||
| power | 22 … 30 V DC | ||
| Bias voltage | 8.5 … 14,5 V DC | ||
| size - height | 0.82 in | 20.8 mm | |
| Sensitivity (±10%) | 20 mV / g | 2.04 mV/V/(m/s²) | |
| (TLB) TEDS LMS international - format for the automotive industry | |||
| power supply | 22 … 30 V DC | ||
| Bias voltage | 8.5 … 14,5 V DC | ||
| Size - height | 0.82 in | 20.8 mm | |
| sensitivity (±10%) | 20 mV / g | 2.04 mV/V/(m/s²) | |
| () TLC) TEDS LMS international - format for the aviation industry | |||
| power | 22 … 30 V DC | ||
| Bias voltage | 8, 5 … 14,5 V DC | ||
| size - height | 0.82 in | 20.8 mm | |
| sensitivity () ±10%) | 20 mV / g | 2.04 mV/V/(m/s²) | |
| (TLD) TEDS memory in accordance with IEEE P1451. 4 | |||
| supply | 22 … 30 V DC | ||
| Bias voltage | 8.5 … 14,5 V DC | ||
| size - height | 0.82 in | 20.8 mm | |
| Sensitivity (±10%) | 20 mV / g | 2.04 mV/V/(m/s²) |
