    PCB-3711B03
    zoom_out_map

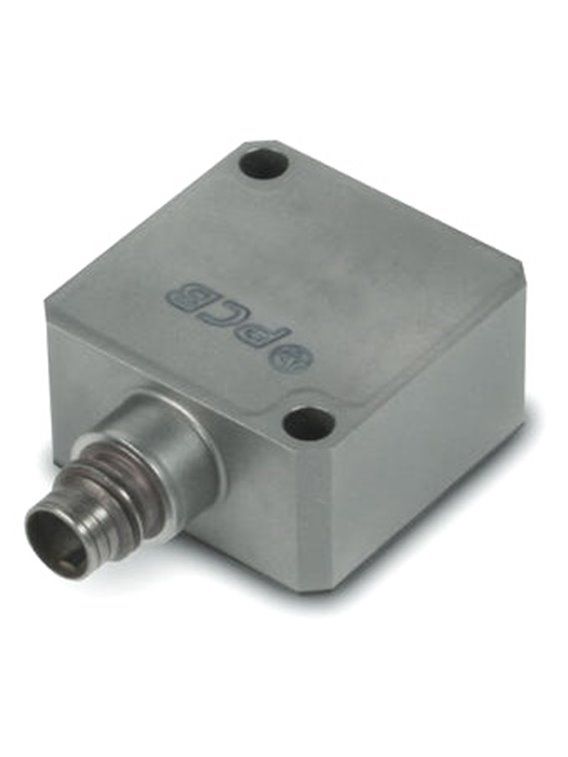

      PCB-3711B03

    • MEMS accelerometer,
    • Suitable for measuring static accelerations,
    • Measurement range 30 g,
    • Sensitivity 66.7 mV / g,
    • Frequency range 0 … 50 Hz,
    • Supply voltage 6 … 30 V DC,
    • 4-pin female connector on the side
      • basic data
      sensitivity (±5%)66.7 mV / g6.80 mV/(m/s²)

      range±30 g pk ±294, 2 m/s 2 pk

      frequency range (± 3 dB)0 … 50 Hz

      Resonance frequency≥4,000 Hz

      Filter typelow-pass filter

      the filter slope12 dB/octave

      electric filter corner frequency ( -3 dB)> 45-55 Hz

      wide band resolution2.4 mg rms0.024 m/s² RMS[3]

      Linearity≤1% [2]

      Transverse acceleration sensitivity≤3%
      conditions
      (shock) overload limit± 3.000 g PK±29. 420 m/s² pk

      Temperature range (operation)-65 … 250 ° F-54 … 121 ° C

      temperature range (storage)-65 … 250 ° F-54 … 121 ° C

      Temperature coefficient of sensitivity±3% [1]

      Temperature coefficient of sensitivity the zero point±2% FSO [1] [4]

      Strain sensitivity (footprint)0.0001 g/µε0.001 (m/s²)/µε[3]

      magnetic sensitivity23.7 µg/GS/2.32 (m/s²) / T[3]
      specifications
      power supply6 … 30 V DC

      Power≤6 mA

      output impedance≤100 Ω

      Spannungsoffset2,460 … 2,540 mV DC [5]

      spectral noise (1)88 µg / √Hz863 (µm / s ²) / √Hz[3]

      Electrical insulation(Housing)>100 MΩ
      Physical properties
      housing materialtitanium

      sealinghermetic

      Size - height0.45 in11.4 mm

      size - length0.85 in21.6 mm

      size -. Wide0.85 in21.6 mm

      mass0.58 oz16.3 grams

      electrical connection4-Pin

      Connection positionside

      mountinghole
      notes
      [1]-54 … 121 ° C,. Reference 24 ° C

      [2]zero-based balancing line, determined using the method of least squares

      [3]typically

      [4]FSO = "Full Scale Output": maximum output signal of the measuring range (4 V DC).

      [5]offset at 3 meters cable length (type 010)

      [6]details: see PCB Declaration of Conformance PS027
      equipment
      080A152mounting clip-1

      081A113mounting screw2

      ACS-133calibration certificate-1

      M081A113metric mounting screw-2
      PCB-3711B03

      Specific References

      Download

      3711B03_drawing.PDF

      Technical drawing

      Download (1.18M)

      3711B03_manual.PDF

      Operating instructions

      Download (1.76M)

      3711B03_specs.PDF

      Technical data sheet

      Download (421.69k)
