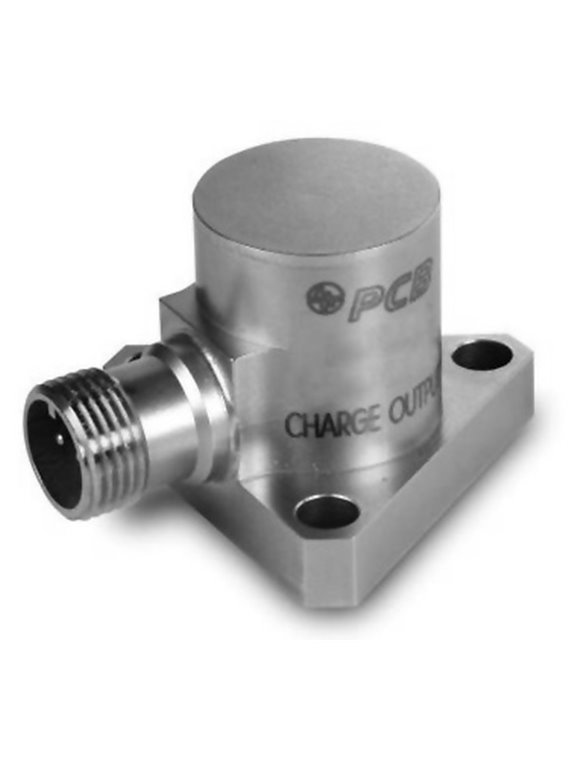

    • Vibration sensor with charge output,
    • Continuous use temperature up to 260 ° C,
    • Decay,
    • Measuring range 500 g
    • Sensitivity 100 pC/g,
    • Upper frequency limit 6,000 Hz,
    • 2-pin female connector on the side
    • basic data
      sensitivity (±5%)100 pC/g10.2 pC/(m/s²)
      range500 g pk 4.905 m/s² pk
      frequency range (±5%)6,000 Hz
      Resonance frequency≥ 20,000 Hz
      linearity error (500 g, 4,900 m/s²)≤ 1%
      acceleration interference≤ 5%[2]
      conditions
      (shock) overload limit± 1.000 g pk±9. 810 m/s² PK
      Temperature range (operation)-65 … 500 ° F-54 … 260 ° C
      temperature range (max)550 ° F288 ° C
      Strain sensitivity (footprint)0.001 g/µε0.01 (m/s²)/µε[1]
      maximum radiation exposure (integratedNeutron flux)10.000.000.000 N / cm 2
      maximum radiation exposure (integral gamma River)100,000,000 wheel
      technical characteristics
      capacity (from pin to pin)10,000 pF[1]
      capacity (of pin housing)30 pF[1]
      capacity ät (asymmetry between the pins)≤ 2 pF
      insulation resistance (from pin to pin at 21 ° C)≥ 1 G Ω
      Insulation resistance (from pin on housing at 21 ° C)≥ 1 G Ω
      insulation resistance (from pin to pin at 260 ° C)≥ 10 M Ω
      Insulation resistance (from pin on housing at 260 ° C)≥ 50 M Ω
      output polaritydifferential
      -physical Properties
      sensor elementceramic
      geometry of the sensor elementshear principle
      housing materialStainless steel
      Sealinghermetically sealed
      size - height1.00 in25.4 mm
      Gr öße - diameter0.75 in19 mm
      dimensions (maximum)1.75 oz50 grams[1]
      electrical connection7/16-27 2-pin
      Connection positionside
      mounting3 holes
      notes
      [1]typically
      [2]transverse acceleration sensitivity typically ≤ 3%
